Product Overview

Grooving and Parting-off Holder

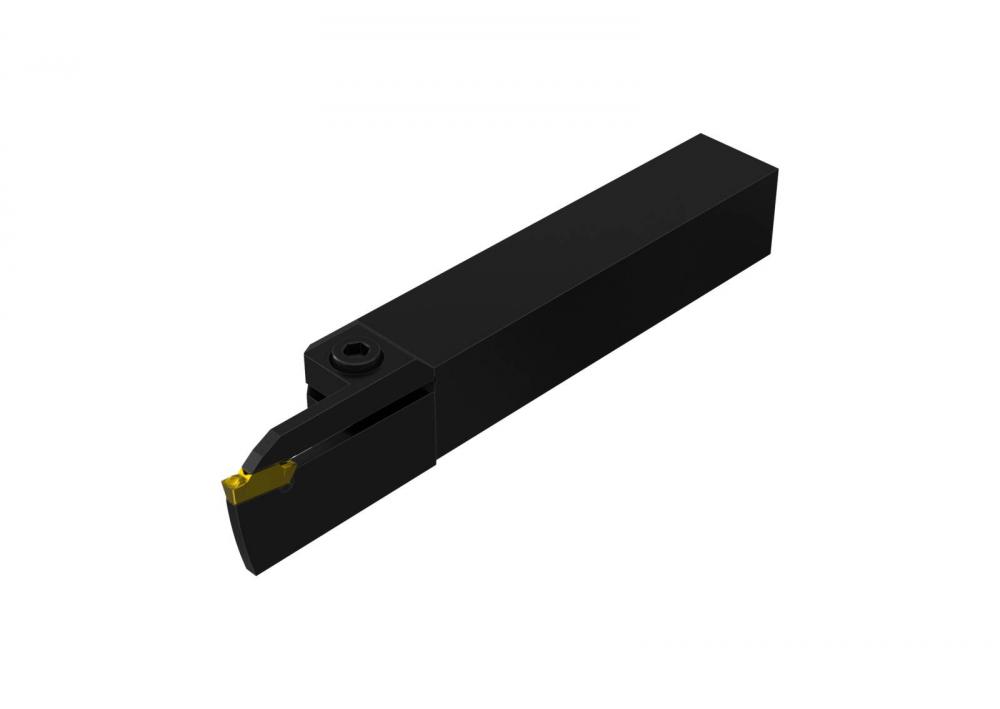

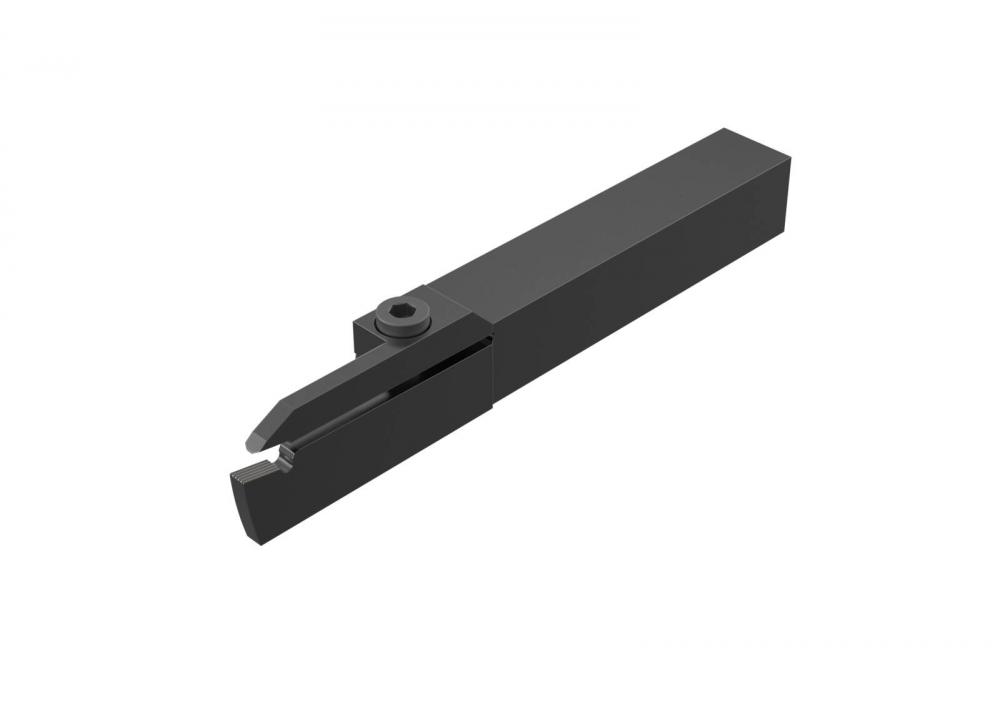

Seco CFSR2525R06 Grooving and Parting-off Holder MDT Ext. LC..1606.. Right Hand Holder

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Info & Guides

DXF

STEP

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

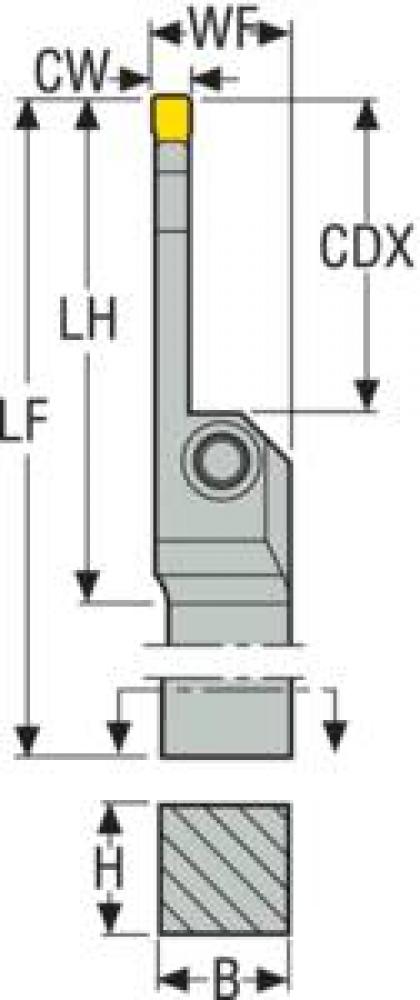

B - Shank Width (mm):

25.0

Brand Name:

Seco

CDX - Cutting Depth Max (mm):

48.00

CSP - Coolant Supply:

CTMS - Connection Machine Side:

2525

CTWS - Connection Text Workpiece Side:

LC..1606..

CW - Cutting Width (mm):

6.0

DCINN3 - Cut Dia. Internal Min3 (mm):

195.0

H - Height Tool Holder Shank (mm):

25.0

HAND - Cutting Direction:

Right

Item Quantity:

Item Weight (lbs.):

1.764

KAPR - Cutting Edge Angle (Deg):

90.0

KAPRE - Cutting Edge Angle Feed Direction (Deg):

90.0

KAPRS - Cutting Edge Angle Feed Direction (Deg):

90.0

LF - Functional Length (mm):

200.0

LH - Head Length (mm):

81.0

Package Height (inches):

1.614

Package Length (inches):

13.976

Package Weight (lbs):

1.764

Package Width (inches):

1.614

Product Series:

CFSR

ShankType:

Square shank

TQ - Torque (Nm):

10.0

UPC Number:

03370027000107

VER - Version (Int/Ext/Both):

External

WF - Functional Width (mm):

26.5

Manufactured By:

Seco Tools
