Item Sales Info

Part Number: 02599880 / Vendor ID Number: 11420 / Custom:

CFIL3225P04JET
by Seco Tools

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

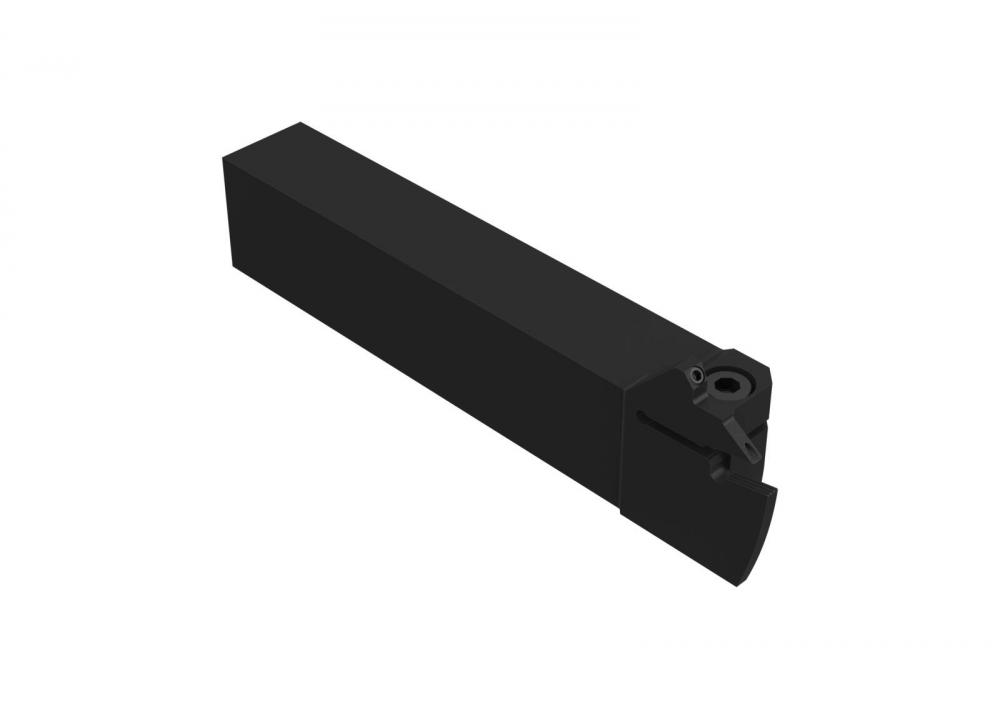

Jetstream Grooving Parting-off Holder

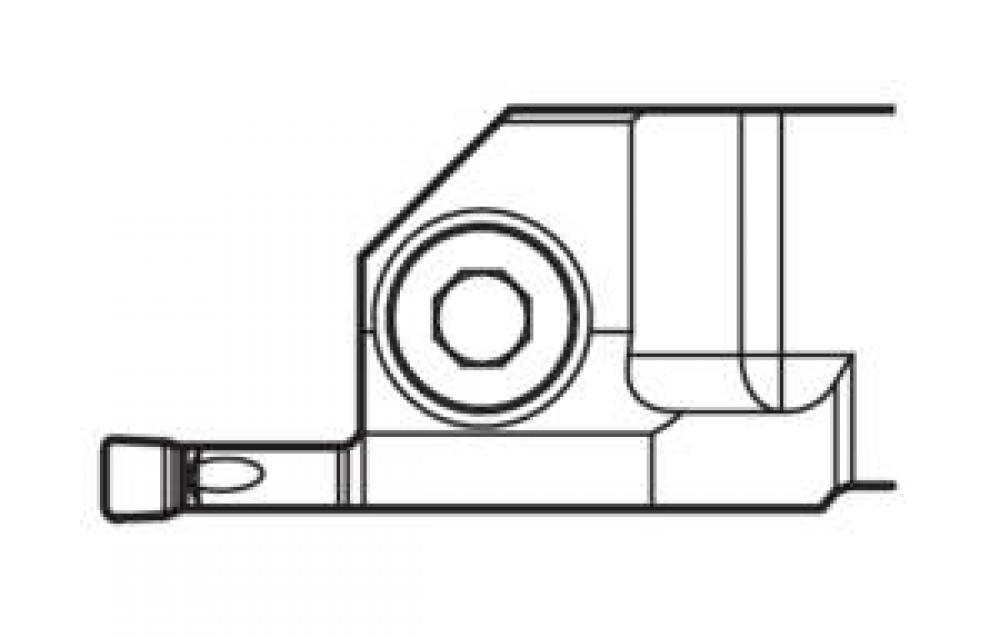

Seco CFIL3225P04JET Jetstream Grooving Parting-off Holder External MDT LC..1604.. Left Hand Holder

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Info & Guides

DXF

STEP

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

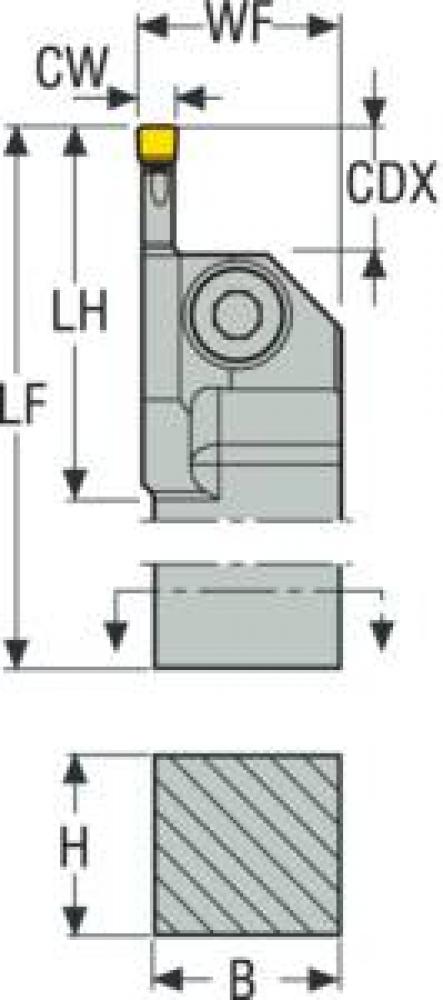

B - Shank Width (mm):

25.0

Brand Name:

Seco

CDX - Cutting Depth Max (mm):

12.00

CP - Coolant Pressure (BAR):

275.0

CSP - Coolant Supply:

Yes

CTMS - Connection Machine Side:

3225

CTWS - Connection Text Workpiece Side:

LC..1604..

CW - Cutting Width (mm):

4.0

DCINN3 - Cut Dia. Internal Min3 (mm):

195.0

H - Height Tool Holder Shank (mm):

32.0

HAND - Cutting Direction:

Left

Item Quantity:

Item Weight (lbs.):

2.137

KAPR - Cutting Edge Angle (Deg):

90.0

KAPRE - Cutting Edge Angle Feed Direction (Deg):

90.0

KAPRS - Cutting Edge Angle Feed Direction (Deg):

90.0

LF - Functional Length (mm):

170.0

LH - Head Length (mm):

39.0

Package Height (inches):

2.047

Package Length (inches):

8.071

Package Weight (lbs):

2.137

Package Width (inches):

2.047

Product Series:

CFIL

ShankType:

Square shank

TQ - Torque (Nm):

8.0

UPC Number:

99880025000100

VER - Version (Int/Ext/Both):

External

WF - Functional Width (mm):

26.5

Manufactured By:

Seco Tools
