Part Number: 00091803 / Vendor ID Number: 11420 / Custom:

CFIR3225P04
by Seco Tools

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Grooving and Parting-off Holder

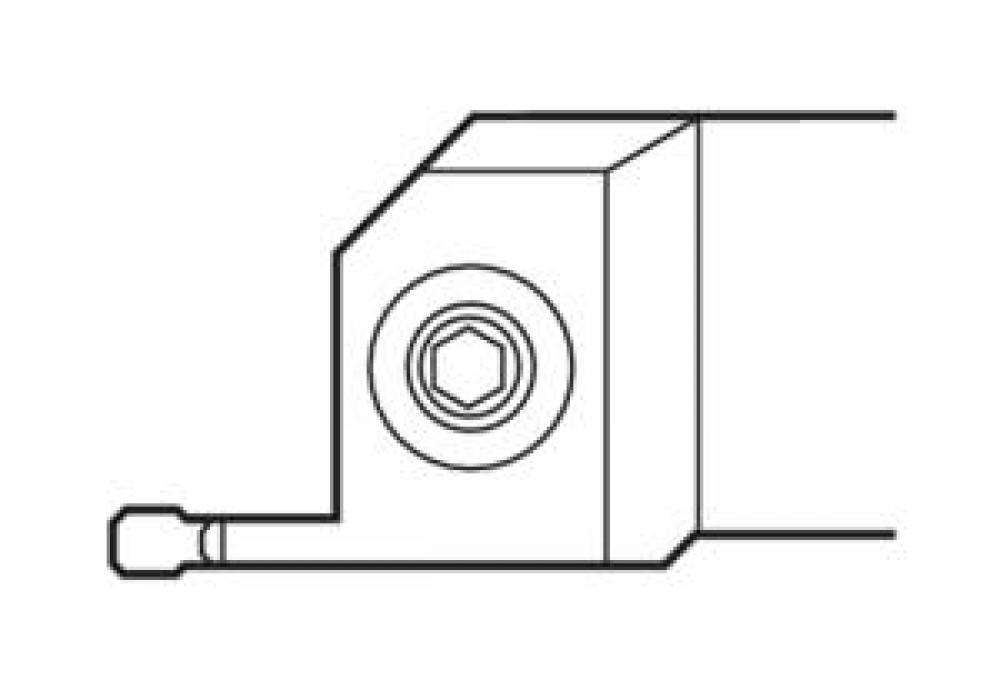

Seco CFIR3225P04 Grooving and Parting-off Holder MDT Ext. LC..1604.. Right Hand Holder

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Specific Products:

Info & Guides

DXF

STEP

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

B - Shank Width (mm):

25.0

Brand Name:

Seco

CDX - Cutting Depth Max (mm):

12.00

CSP - Coolant Supply:

CTMS - Connection Machine Side:

3225

CTWS - Connection Text Workpiece Side:

LC..1604..

CW - Cutting Width (mm):

4.0

DCINN3 - Cut Dia. Internal Min3 (mm):

195.0

H - Height Tool Holder Shank (mm):

32.0

HAND - Cutting Direction:

Right

Item Quantity:

Item Weight (lbs.):

2.121

KAPR - Cutting Edge Angle (Deg):

90.0

KAPRE - Cutting Edge Angle Feed Direction (Deg):

90.0

KAPRS - Cutting Edge Angle Feed Direction (Deg):

90.0

LF - Functional Length (mm):

170.0

LH - Head Length (mm):

31.0

Package Height (inches):

2.047

Package Length (inches):

8.071

Package Weight (lbs):

2.121

Package Width (inches):

2.047

Product Series:

CFIR

ShankType:

Square shank

TQ - Torque (Nm):

8.0

UPC Number:

91803000000108

VER - Version (Int/Ext/Both):

External

WF - Functional Width (mm):

26.5

Manufactured By:

Seco Tools

CFIR3225P04 by Seco Tools

CFIR3225P04
by Seco Tools
