Part Number: TLF05340 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TLF05340

KYOCERA Precision Tools TLF05340
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

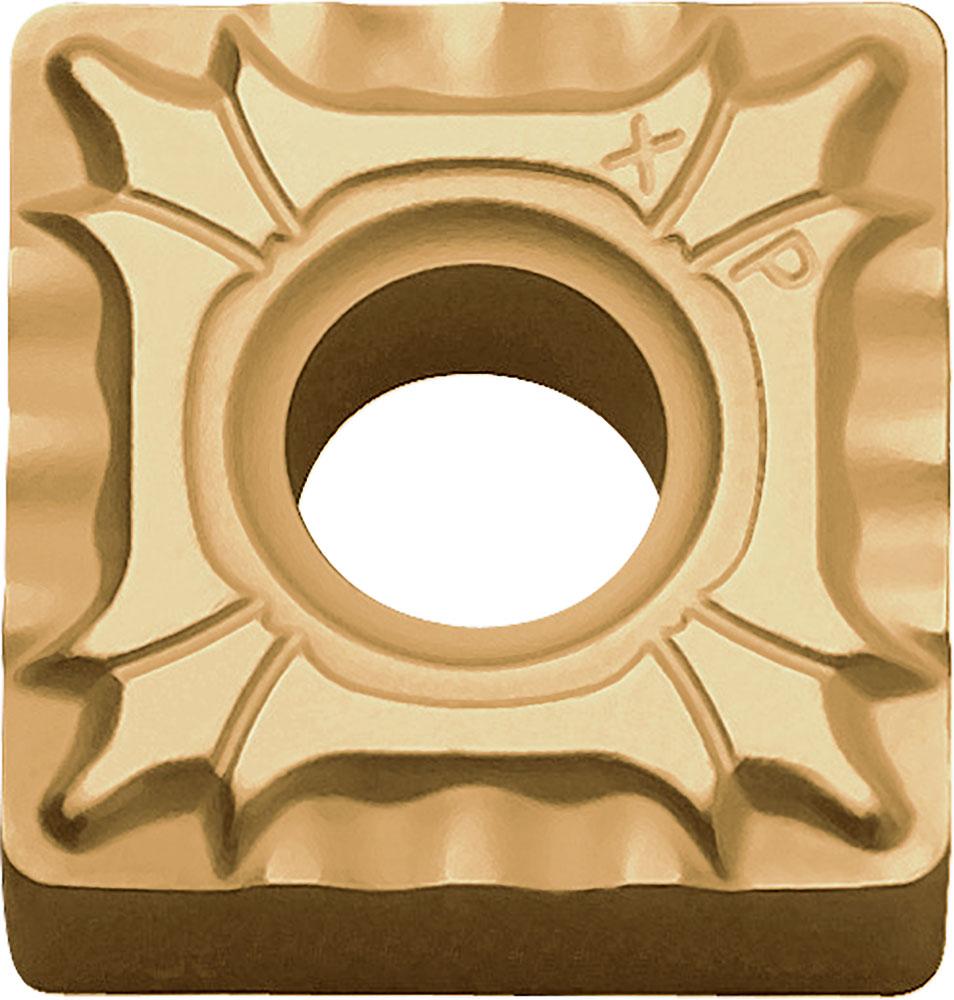

Kyocera SNMG 432XP PV710 Grade PVD Cermet, Indexable Turning Insert
Kyocera SNMG 432XP PV710 Grade PVD Cermet, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Insert Shape:
Additional options that would change other selections
Info & Guides
PDF
PDF
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
XP
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Insert Shape:
90 Degree Square
Material:
Cermet
Number of Cutting Edges:
8
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Rake:
Negative
Additional Manufacturer Part Number:
8846872
ANSI Part Number:
SNMG432XPPV710
Application:
Boring|Chamfering|External Turning|Facing
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Finishing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Turning, Facing, Chamfering, Boring
Feature 2:
Low Carbon Steel with 8 Cutting Edges
Feature 3:
MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
Feature 4:
Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts
Hand:
Neutral
Harmonized Code:
8209.00.0060
Insert Grade:
PV710
Insert Size:
432
ISO Part Number:
SNMG120408XP
Material Group / Grade:
PV710
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8846872
Series Description:
ISO Insert
Series.1:
ISOI
Shipping Weight:
0.1270
Tool Style:
SNMG
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Continuous
[EPSR] Insert Included Angle (Degree):
90

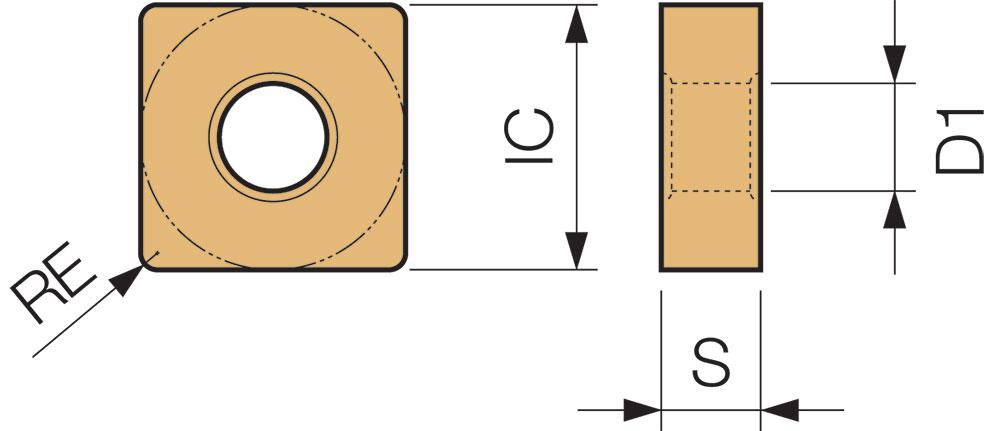

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[RE] Corner Radius:
1/32"
[RE] Corner Radius (mm):
0.80
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
Manufactured By:
KYOCERA Precision Tools
