Item Sales Info
Part Number: TLF01802 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TLF01802

KYOCERA Precision Tools TLF01802
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

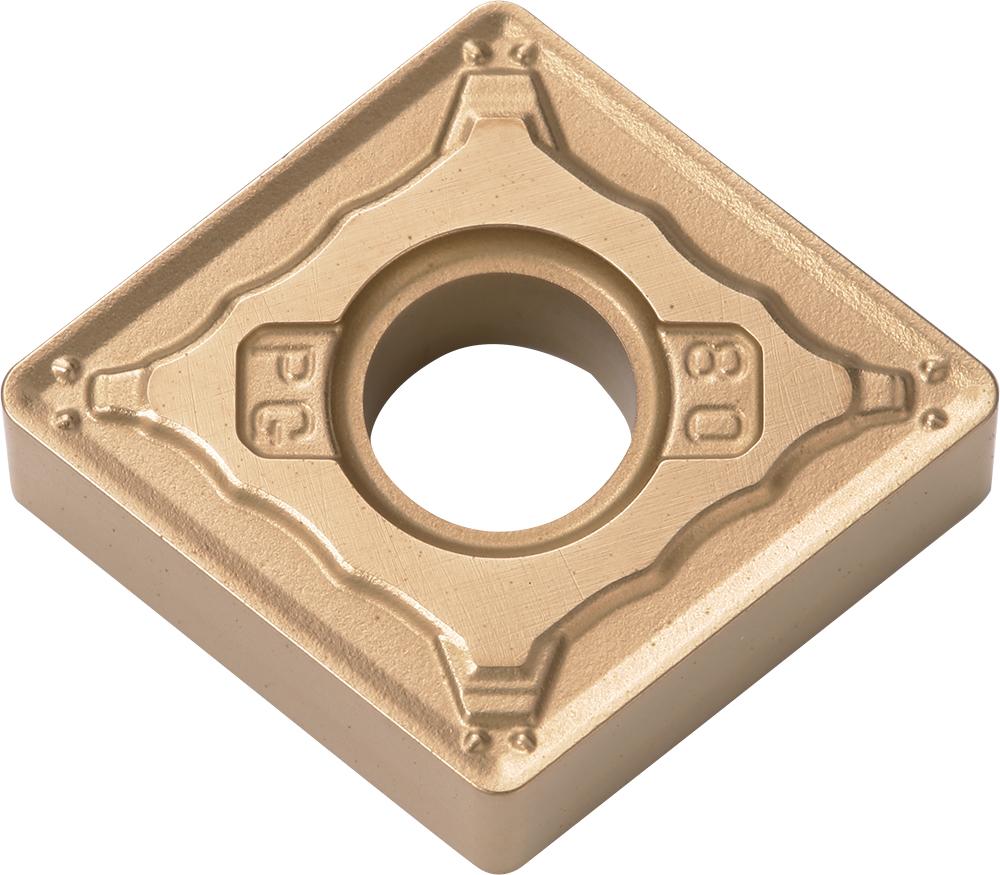

Kyocera CNMG 432PG PV710 Grade PVD Cermet, Indexable Turning Insert
Kyocera CNMG 432PG PV710 Grade PVD Cermet, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Insert Shape:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Coating Process:
Additional options that would change other selections
Info & Guides
PDF
PDF
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
PG
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Insert Shape:
80 Degree Diamond
Material:
Cermet
Number of Cutting Edges:
4
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Rake:
Negative
Additional Manufacturer Part Number:
8846806
ANSI Part Number:
CNMG432PGPV710
Application:
Boring|External Turning|Facing|Internal Facing
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Medium-Roughing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Turning, Facing, Boring, Internal Facing
Feature 2:
4 Cutting Edges
Feature 3:
MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
Feature 4:
Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts
Hand:
Neutral
Harmonized Code:
8209.00.0060
Insert Grade:
PV710
Insert Size:
432
ISO Part Number:
CNMG120408PG
Material Group / Grade:
PV710
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8846806
Series Description:
ISO Insert
Series.1:
ISOI
Shipping Weight:
0.1292
Tool Style:
CNMG
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Continuous

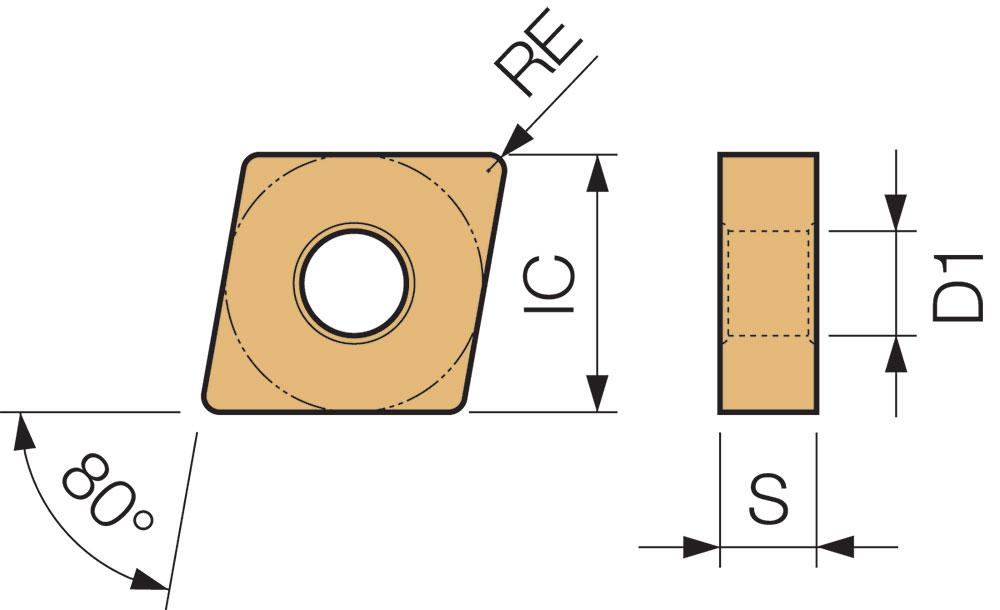

[EPSR] Insert Included Angle (Degree):
80
[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[RE] Corner Radius:
1/32"
[RE] Corner Radius (mm):
0.80
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
Manufactured By:
KYOCERA Precision Tools
