Part Number: TLF02802 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TLF02802

KYOCERA Precision Tools TLF02802
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Kyocera DCET 21505MRF PV710 Grade PVD Cermet, Indexable Turning Insert
Kyocera DCET 21505MRF PV710 Grade PVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Insert Shape:
Additional options that would change other selections
Number of Cutting Edges:
Additional options that would change other selections
Coating Process:
Additional options that would change other selections
Specific Products:
Info & Guides
PDF
PDF
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts

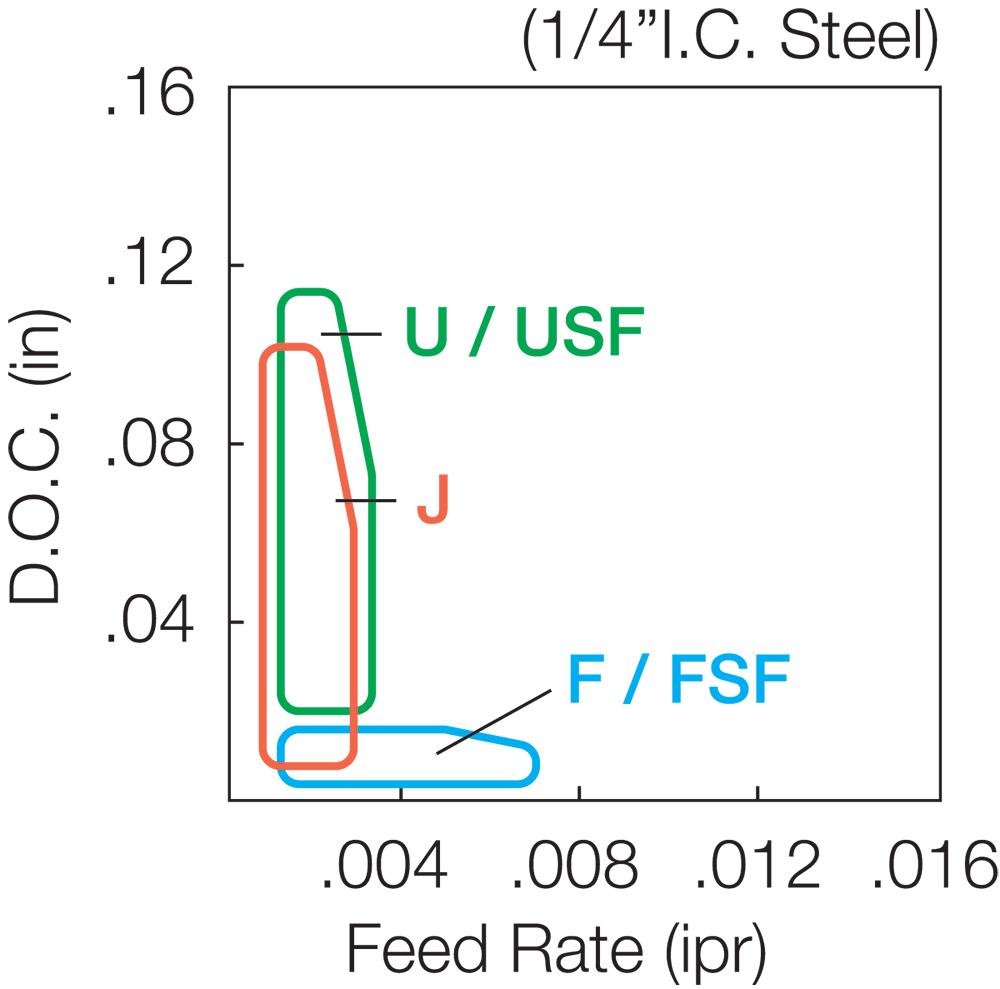

Chipbreaker:
F
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Insert Shape:
55 Degree Diamond
Material:
Cermet
Number of Cutting Edges:
2
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Rake:
Positive
Additional Manufacturer Part Number:
8847493
ANSI Part Number:
DCET21505MRFPV710
Application:
Back Boring|Copying|External Turning|Sub-Spindle
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Finishing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Turning, Copying, Back Boring, Sub-Spindle
Feature 2:
Sharp Edge / Minus Tolerance Corner Radius with 2 Cutting Edges
Feature 3:
MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
Feature 4:
Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts
Hand:
Right-Hand
Harmonized Code:
8209.00.0060
Insert Grade:
PV710
Insert Size:
21505
ISO Part Number:
DCET070202MR-F
Material Group / Grade:
PV710
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8847493
Series Description:
ISO Insert
Series.1:
ISOI
Shipping Weight:
0.0439
Tool Style:
DCET
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Continuous
[EPSR] Insert Included Angle (Degree):
55
[IC] Inscribed Circle:
1/4"
[IC] Inscribed Circle (mm):
6.35
[RE] Corner Radius:
0.008"
[RE] Corner Radius (mm):
0.20
[S] Thickness:
3/32"
[S] Thickness (mm):
2.38
Manufactured By:
KYOCERA Precision Tools
