Part Number: TLC03674 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TLC03674

KYOCERA Precision Tools TLC03674
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

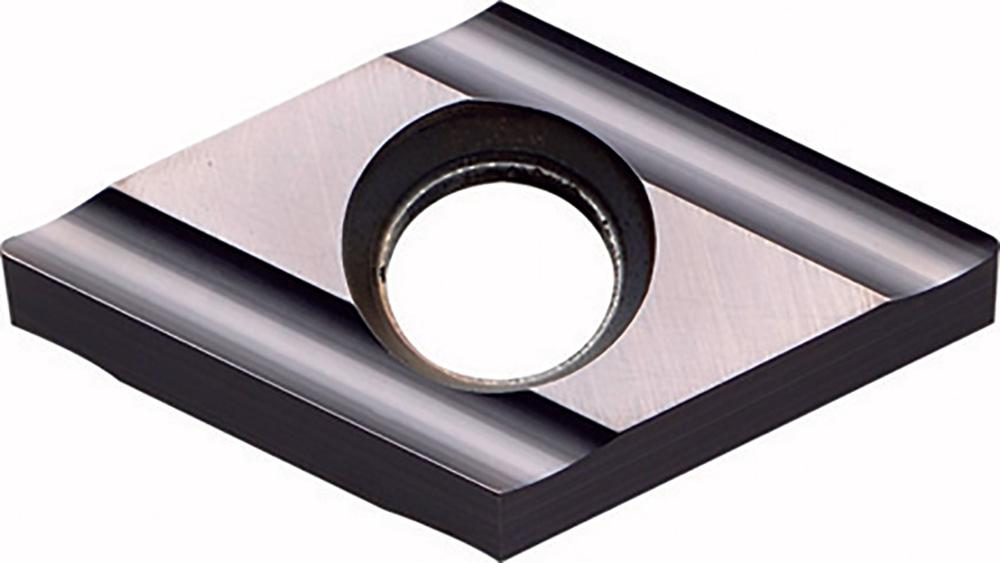

Kyocera DNGU 22205MFRU PR1535 Grade PVD Carbide, Indexable Turning Insert
Kyocera DNGU 22205MFRU PR1535 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Insert Shape:
Insert Holding Method:
Additional options that would change other selections
Material:
Additional options that would change other selections
Specific Products:
Info & Guides
PDF
PDF
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
U
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Insert Shape:
55 Degree Diamond
Material:
Carbide
Number of Cutting Edges:
4
Primary Workpiece Material:
(M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
Rake:
Negative
Additional Manufacturer Part Number:
8846267
ANSI Part Number:
DNGU22205MFRUPR1535
Application:
Copying|External Turning
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Finishing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Turning, Copying
Feature 2:
Sharp Edge / Minus Tolerance Corner Radius with 4 Cutting Edges
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for titanium alloy and precipitation hardened stainless steel
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1535
Insert Size:
22205
ISO Part Number:
DNGU080302MFR-U
Material Group / Grade:
PR1535
Min Order Qty:
10
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8846267
Series Description:
Double-sided Swiss System
Series.1:
DSSS
Shipping Weight:
0.0776
Tool Style:
DNGU
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Light Interruption
Video 3:
https://youtu.be/vUo4G4g-5Hc

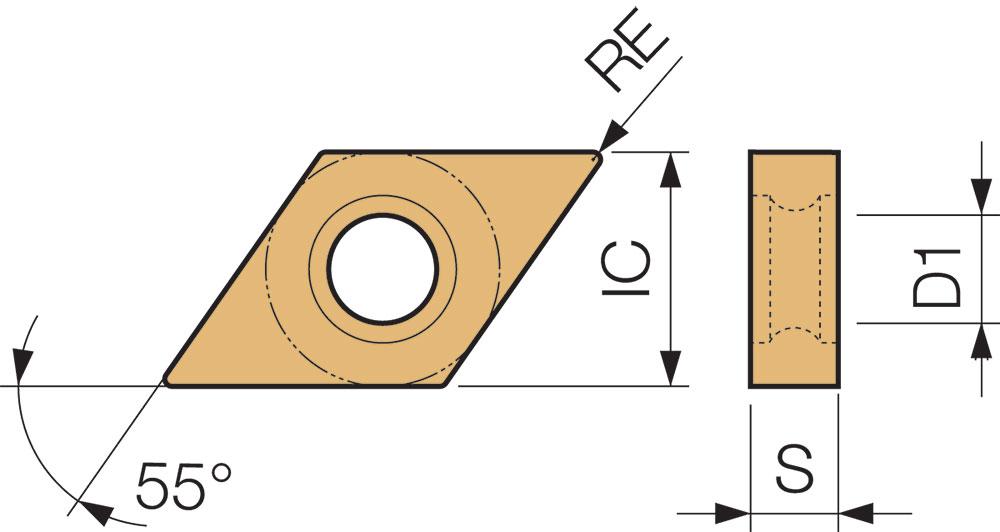

[EPSR] Insert Included Angle (Degree):
55
[IC] Inscribed Circle:
0.276"
[IC] Inscribed Circle (mm):
7.00
[RE] Corner Radius:
0.008"
[RE] Corner Radius (mm):
0.20
[S] Thickness:
1/8"
[S] Thickness (mm):
3.18
Manufactured By:
KYOCERA Precision Tools
