Part Number: TKE03684 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TKE03684

KYOCERA Precision Tools TKE03684
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

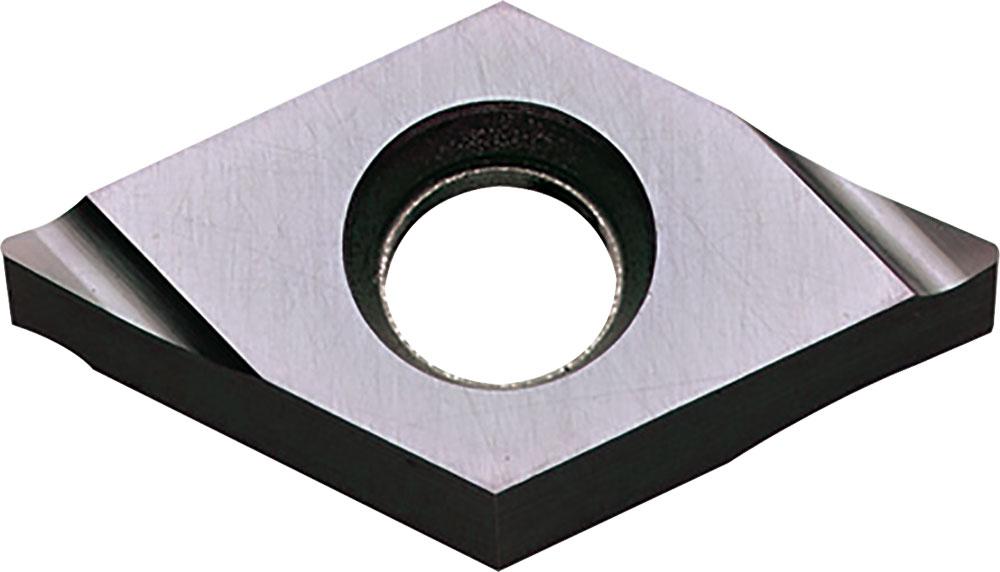

Kyocera DNGU 22205MFRF PR1225 Grade PVD Carbide, Indexable Turning Insert
Kyocera DNGU 22205MFRF PR1225 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Insert Shape:
Insert Holding Method:
Additional options that would change other selections
Material:
Additional options that would change other selections
Specific Products:
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
F
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Insert Shape:
55 Degree Diamond
Material:
Carbide
Number of Cutting Edges:
4
Primary Workpiece Material:
(M) Stainless Steel
Rake:
Negative
Additional Manufacturer Part Number:
8831938
ANSI Part Number:
DNGU22205MFRFPR1225
Application:
Copying|External Turning
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Range:
Finishing
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Turning, Copying
Feature 2:
Sharp Edge / Minus Tolerance Corner Radius with 4 Cutting Edges
Feature 3:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 4:
Application: Light interrupted to interrupted cutting of stainless steel
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1225
Insert Size:
22205
ISO Part Number:
DNGU080302MFR-F
Material Group / Grade:
PR1225
Min Order Qty:
10
Origin:
CHN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8831938
Series Description:
Double-sided Swiss System
Series.1:
DSSS
Shipping Weight:
0.0776
Tool Style:
DNGU
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Light Interruption
[EPSR] Insert Included Angle (Degree):
55
[IC] Inscribed Circle:
0.276"
[IC] Inscribed Circle (mm):
7.00
[RE] Corner Radius:
0.008"
[RE] Corner Radius (mm):
0.20
[S] Thickness:
1/8"
[S] Thickness (mm):
3.18
Manufactured By:
KYOCERA Precision Tools
