Part Number: TKB03002 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TKB03002

KYOCERA Precision Tools TKB03002
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

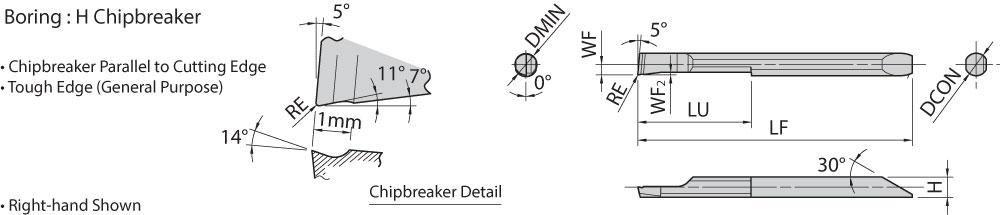

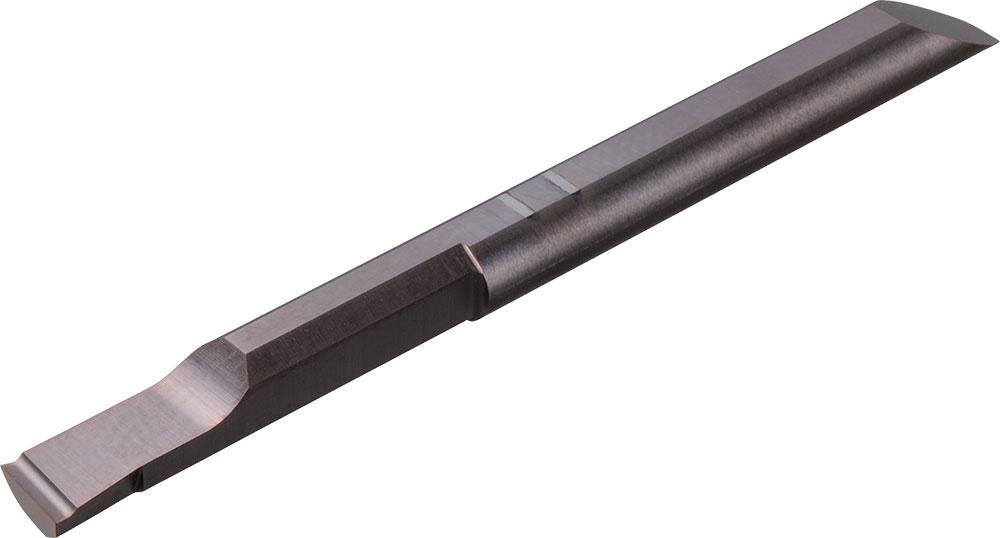

Kyocera EZBR 020020HP008H PR1225 Grade PVD Carbide, Micro Boring Bar
Kyocera EZBR 020020HP008H PR1225 Grade, Right-Hand, Micro Bar with a 2.00mm Minimum Bore Diameter for (P) Steel Boring Applications
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Chipbreaker:
Material:
Primary Workpiece Material:
Additional options that would change other selections
Info & Guides
PDF
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Boring
Subtype:
Indexable Cutting Tools
Category Level 4:
Micro Boring Bars
Chipbreaker:
H
Coating Process:
PVD
Insert Holding Method:
Screw
Material:
Carbide
Primary Workpiece Material:
(P) Steel
Additional Manufacturer Part Number:
8836594
ANSI Part Number:
EZBR020020HP008HPR1225
Application:
Micro Boring
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Adjustable overhang length (EZ Adjust Structure)
Feature 2:
Minimized deviation of the cutting diameter
Feature 3:
Various EZ Bar sizes and styles for a wide range of small internal machining applications
Feature 4:
HP style for precision-oriented machining
Feature 5:

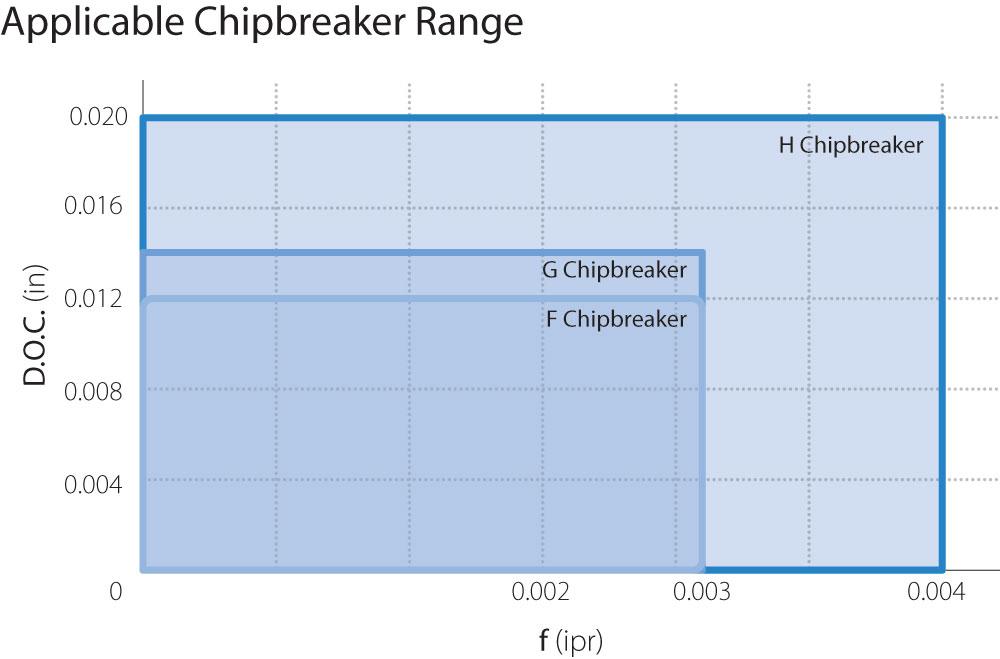

H chipbreaker for tough edge, general purpose machining
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1225
ISO Part Number:
EZBR020020HP-008H
Material Group / Grade:
PR1225
Min Order Qty:
1
Origin:
CHN
Pack Height:
0.453
Pack Length:
3.071
Pack Width:
0.906
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8836594
Series Description:
EZ Bar
Series.1:
EZB
Shipping Weight:
0.0211
Tool Style:
EZB-HP
Unit (inch/mm):
mm
UNSPSC:
23241601
UNSPSC Title:
Boring Tool
Video 1:
https://www.youtube.com/watch?v=JImahR4sSTw
[DCON] Connection Diameter (Decimal Inch):
0.0787
[DCON] Connection Diameter (mm):
2.00
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.0787
[DMIN] Minimum Bore Diameter (mm):
2.00
[H] Shank Height (Decimal Inch):
0.0709
[H] Shank Height (mm):
1.80
[KAPR] Tool Entering Angle (Degree):
95
[LU] Usable Length (Decimal Inch):
0.3150
[LU] Usable Length (mm):
8.00
[RE] Corner Radius:
0.003"
[RE] Corner Radius (mm):
0.08
Manufactured By:
KYOCERA Precision Tools
