Part Number: BC45MLA / Vendor ID Number: 1175201 / Custom:

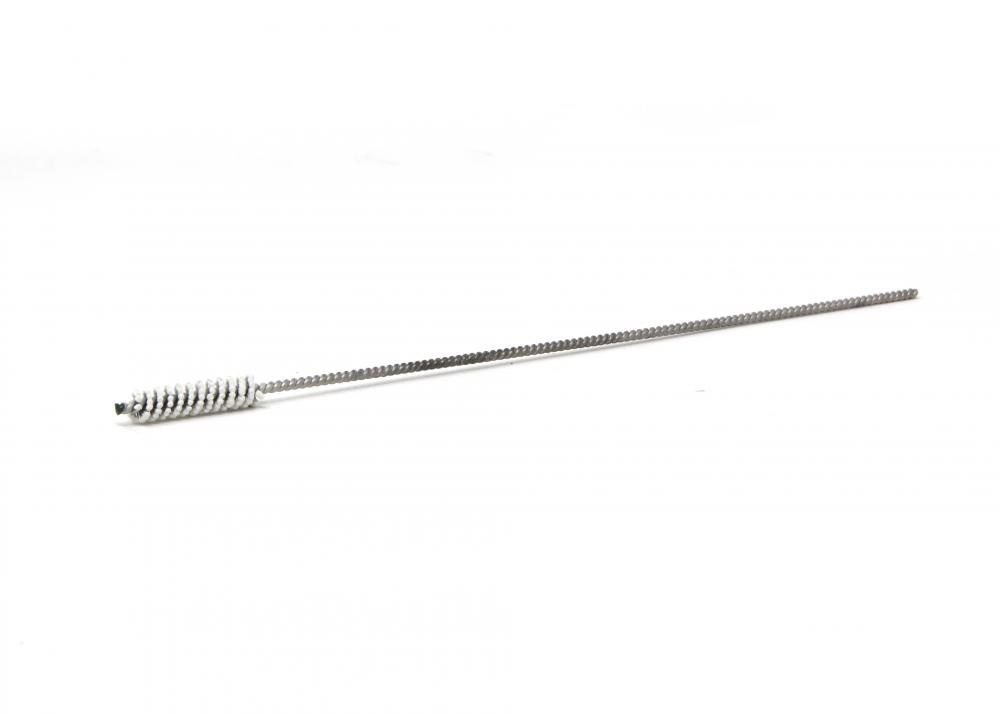

BRM BC45MLA FLEX-HONE®, 0.177" (4.5mm) Bore, 6" OAL, 1000/1200 Grit, Levigated Alumina (LA)

BRM BC45MLA FLEX-HONE®, 0.177" (4.5mm) Bore, 6" OAL, 1000/1200 Grit, Levigated Alumina (LA)
by Brush Research Manufacturing

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
The BC45MLA FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.158" and 0.177". Featuring 0.75" of abrasive globules which are composed of 1000/1200 grit Levigated Alumina (LA). Excellent for Final polish on many materials. 1000/1200 grit generally provides an Ra Finish range of 3 - 10 Microinch (.05 - .2 Micrometer).
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Abrasive Type:
Grit:
Additional options that would change other selections
Specific Products:
Additional Information
Can be used in virtually any rotating spindle
Commonly used for finishing, deburring, and edge breaking
Excellent for final polish on many materials
Proudly made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Typically achieves a finish of 3 - 10 Microinch (.05 - .2 Micrometer)
Info & Guides
PDF
Technical Details
Details
Category:
Abrasives
Subcategory:
Polishing
Subtype:
Flexible Cylinder Hones
Abrasive Type:
Levigated Alumina
Grit:
1000/1200
Abrasive Part (in):
0.75
Applicable Materials:
Final polish on many materials
Bore Diameter (in):
0.177
Bore Diameter (mm):
4.5
Brand Name:
Brush Research Manufacturing
Item Height (inches):
1
Item Length (inches):
12
Item Quantity:
Each
Item Weight (lbs):
0.0625
Item Width (inches):
3.5
Maximum Bore Diameter (in):
0.177
Minimum Bore Diameter (in):
0.158
Overall Length (in):
6
Product Series:
FLEX-HONE® - BC Standard Duty (0.157"-3")
Ra Range:
3 - 10 Microinch (.05 - .2 Micrometer)
Recommended RPM:
1000 - 1200
Stem Diameter (in):
0.055
Stem Marking:
Silver/No Color
Tip Marking:
Green
Trade Name:
FLEX-HONE®
UPC Number:
843469127945
Manufactured By:
Brush Research Manufacturing
