Part Number: BC7M170200CD / Vendor ID Number: 1175201 / Custom:

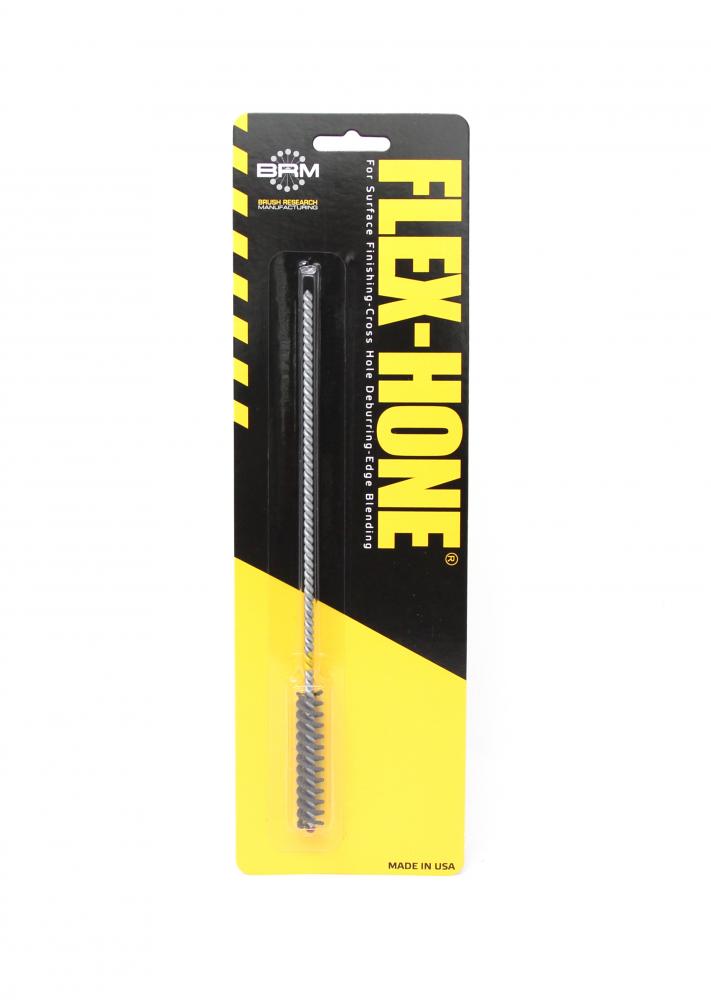

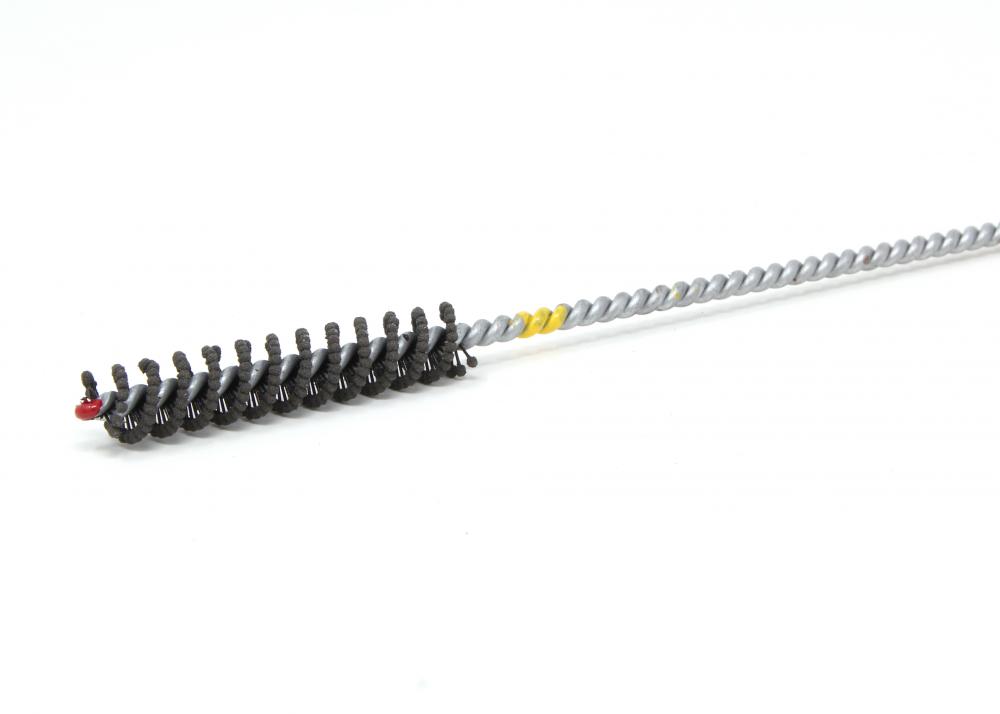

BRM BC7M170200CD FLEX-HONE®, 0.276" (7mm) Bore, 8" OAL, 170/200 Mesh Grit, Diamond (CD)

BRM BC7M170200CD FLEX-HONE®, 0.276" (7mm) Bore, 8" OAL, 170/200 Mesh Grit, Diamond (CD)
by Brush Research Manufacturing

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
The BC7M170200CD FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.253" and 0.276". Featuring 2.00" of abrasive globules which are composed of 170/200 Mesh grit Diamond (CD). Excellent for Carbide, ceramic, hardened tool steel and heat treated steel. 170/200 Mesh grit generally provides an Ra Finish range of 30 - 40 Microinch (.7 - 1 Micrometer).
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Abrasive Type:
Grit:
Additional options that would change other selections
Specific Products:
Additional Information
Can be used in virtually any rotating spindle
Commonly used for finishing, deburring, and edge breaking
Excellent on carbide, ceramic, hardened tool steel and heat treated steel
Proudly made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Typically achieves a finish of 30 - 40 Microinch (.7 - 1 Micrometer)
Info & Guides
PDF
Technical Details
Details
Category:
Abrasives
Subcategory:
Polishing
Subtype:
Flexible Cylinder Hones
Abrasive Type:
Diamond
Grit:
170/200 Mesh
Abrasive Part (in):
2.00
Applicable Materials:
Carbide, ceramic, hardened tool steel and heat treated steel
Bore Diameter (in):
0.276
Bore Diameter (mm):
7
Brand Name:
Brush Research Manufacturing
Item Height (inches):
1
Item Length (inches):
12
Item Quantity:
Each
Item Weight (lbs):
0.06
Item Width (inches):
3.5
Maximum Bore Diameter (in):
0.276
Minimum Bore Diameter (in):
0.253
Overall Length (in):
8
Product Series:
FLEX-HONE® - BC Standard Duty (0.157"-3")
Ra Range:
30 - 40 Microinch (.7 - 1 Micrometer)
Recommended RPM:
1000 - 1200
Stem Diameter (in):
0.125
Stem Marking:
Yellow
Tip Marking:
Red
Trade Name:
FLEX-HONE®
UPC Number:
843469131188
Manufactured By:
Brush Research Manufacturing
