Part Number: SQ4 / Vendor ID Number: 1152441 / Custom:

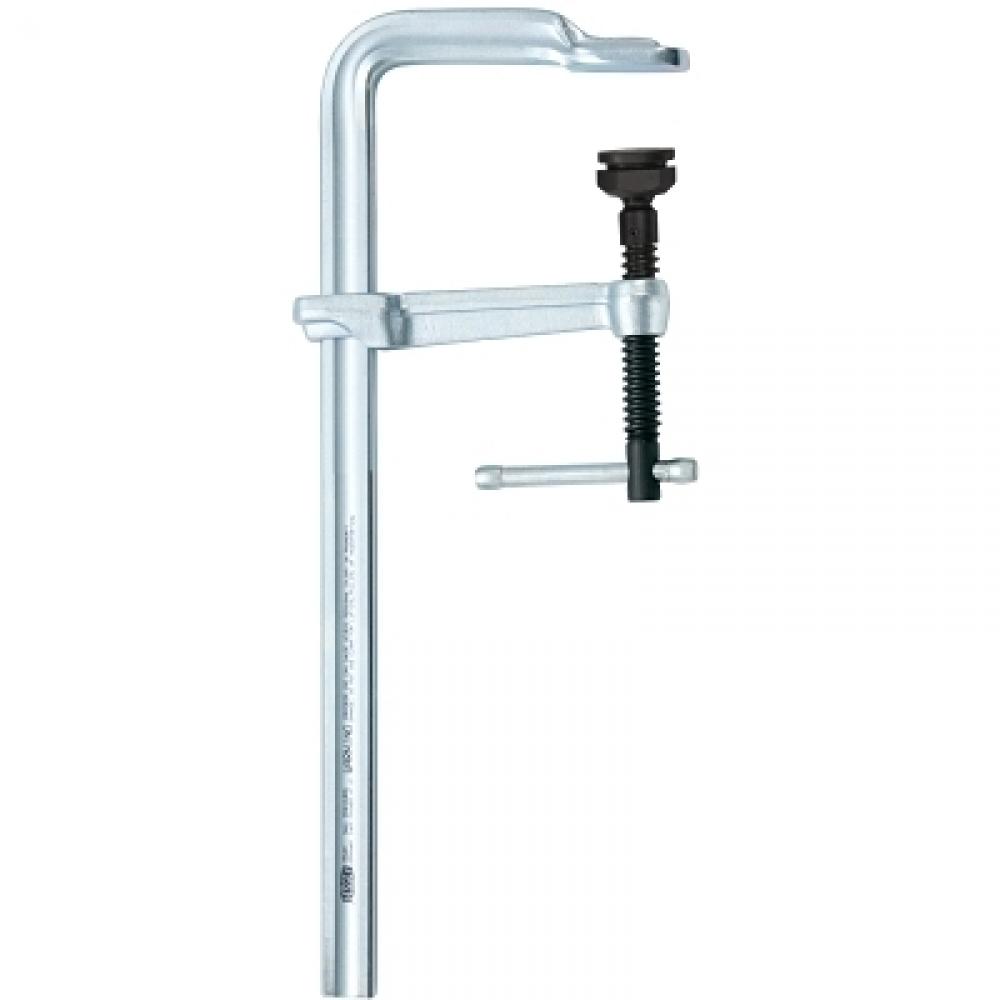

BESSEY SQ Series Bar Clamps

BESSEY SQ Series Bar Clamps
by Bessey

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
SQ Series Bar Clamp, 6 in, 4-3/4 in Throat, 1330 lb Load Cap
Regular-duty, all-steel bar clamp|Comes with standard rail profile and standard pad|Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life|The high-strength sliding pin T-Handle is sized according to the clamps capability|
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Specific Products:
Additional Information
Comes with standard rail profile and standard pad
Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life
Regular-duty, all-steel bar clamp
The high-strength sliding pin T-Handle is sized according to the clamps capability
Technical Details
Details
Category:
Clamping, Positioning, Workholding
Subcategory:
Clamps
Subtype:
Bar, Pipe and L-Clamps
B.T.N.A. Cat #:
SQ-4
Bar Thickness:
13/32 in
Bar Width:
55/64 in
Body Finish:
Satin
Body Material:
Drop-forged Steel
Brand:
BESSEY
Brand owner GLN:
4008158000008
Brand owner name:
BESSEY® Tools GmbH & Co KG
Brand URL:
www.besseytools.com
Capacity [Nom]:
6 in
CASE GTIN (Master carton):
10788502013502
Clamping Force (Pounds):
1,330
Classification:
L-Clamps
Country of Origin:
DE
Country of Origin #1:
Germany
Cube (Full Pallet, Ft^3):
30.146
Cube (Master carton, Ft^3):
0.332
Cube (Single Item in retail/shipping package, Inch:
78.55
Cube (Single Item out of box, Inches^3):
78.55
Cube(Single Item in retail/shipping package, Ft^3):
0.045
Functional Name:
All-steel sliding arm clamp
GDSN Alpha - 2 Country Code:
DE
GDSN Country Code:
276
GPC (Brick):
10003535
Gross weight (Master carton, Pounds):
23.850
Gross weight (Single Item in retail/shipping packa:
2.350
Handle length (Inches):
3.940
Handle Material:
Tempered Steel
Handle Type:
Sliding Pin T-Handle
Hazmat:
N
Height (Full Pallet, Inches):
35.000
Height (Master carton, Inches):
5.000
Height (Single Item in retail/shipping package, In:
1.250
Height (Single Item out of box, Inches):
1.250
Height [Nom]:
1 1/4 in
Information owner GLN:
0788502000017
Information owner name:
BESSEY® Tools North America
Jaw width (Inches):
1.000
Keywords:
BESSEY, Bessy, Besy, Besey, clamp, all steel, regular duty, sliding arm, SQ serise
Length (Depth, Full Pallet, Inches):
31.500
Length (Depth, Master carton, Inches):
15.321
Length (Depth, Single Item in retail/shipping pack:
9.567
Length (Depth, Single Item out of box, Inches):
9.567
Length [Nom]:
9.567 in
Load Cap. [Nom]:
1330 lb
Manufacturer GLN:
4008158000008
Manufacturer NAME:
BESSEY® Tool
Marketing bullet point:
After bending and forming of the fixed jaw the rails are heat treated for maximum strength
Marketing bullet point-2:
Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
Marketing bullet point-3:
Does the work of C Clamps … but does it 9x faster
Marketing bullet point-4:
Drop forged, electro-galvanized steel sliding arm
Marketing bullet point-5:
Sliding steel pin handle
Marketing bullet point-6:
Standard swivel pressure pads built for solid dependable performance
Marketing Paragraph:
The SQ series regular duty all -steal clamps, are a top selling product and an economical alternative to the BESSEY high-performance 2400 series. It offers a great mixture of size and strength. The standard profiled rail and heavy duty pad of this series m
Material:
Steel
National Motor Freight Classification (class):
70
National Motor Freight Classification (code):
18690000
Net weight ( Single Item in retail/shipping packag:
2.350
Net weight (Master carton, Pounds):
23.500
Nominal Capacity (Inches):
6.000
Nominal Throat Depth (Inches):
4.750
Opening Size [Max]:
6 in
Optional parts:
3006727
Optional parts-2:
VAD
Original Equipment Replacement Parts:
3101183
Original Equipment Replacement Parts-2:
3101796
Original Equipment Replacement Parts-3:
3101801
ORS Nasco SKU Number:
013-SQ-4
Packaging Type ( Single Item in retail/shipping pa:
Loose
Pallet GTIN (Full Pallet):
80788502013501
Pieces (Master carton quantity):
10
Product Group:
All-steel
Prop 65 Warning Label:
View
Prop 65 Warning Required:
View
Qty:
1
Quantity (Full Pallet):
600
Quantity of Master Cartons (Full Pallet):
60
Rail Dimensions (Inches):
55/64x13/32
Rail Dimensions (MM):
22x10.5
SKU Group:
BESSEY SQ Series Bar Clamps
Spindle (Thread Pitch):
Tr16 - 4
Spindle dia. (Inches):
0.625
Spindle Diam:
5/8 in
Style:
Standard Pad
Supplier Company Name:
BESSEY® Tools North America
Tare weight (Master carton, Pounds):
0.350
Tare weight (Single Item in retail/shipping packag:
0.000
Taxonomy:
L-Clamps
Throat Depth [Nom]:
4-3/4 in
U of M:
EA
UNSPSC:
27112133
UPC:
00788502013505
UPC/Base Unit or Each:
7 88502 01350 5
Variant:
4-3/4 x 6 inches
Width (Single Item in retail/shipping package, In:
6.568
Width (Full Pallet, Inches):
47.250
Width (Master carton, Inches):
7.500
Width (Single Item out of box, Inches):
6.568
Width [Nom]:
6.568 in
Wt.:
2.5 lb
Manufactured By:
Bessey
