Part Number: SQ24 / Vendor ID Number: 1152441 / Custom:

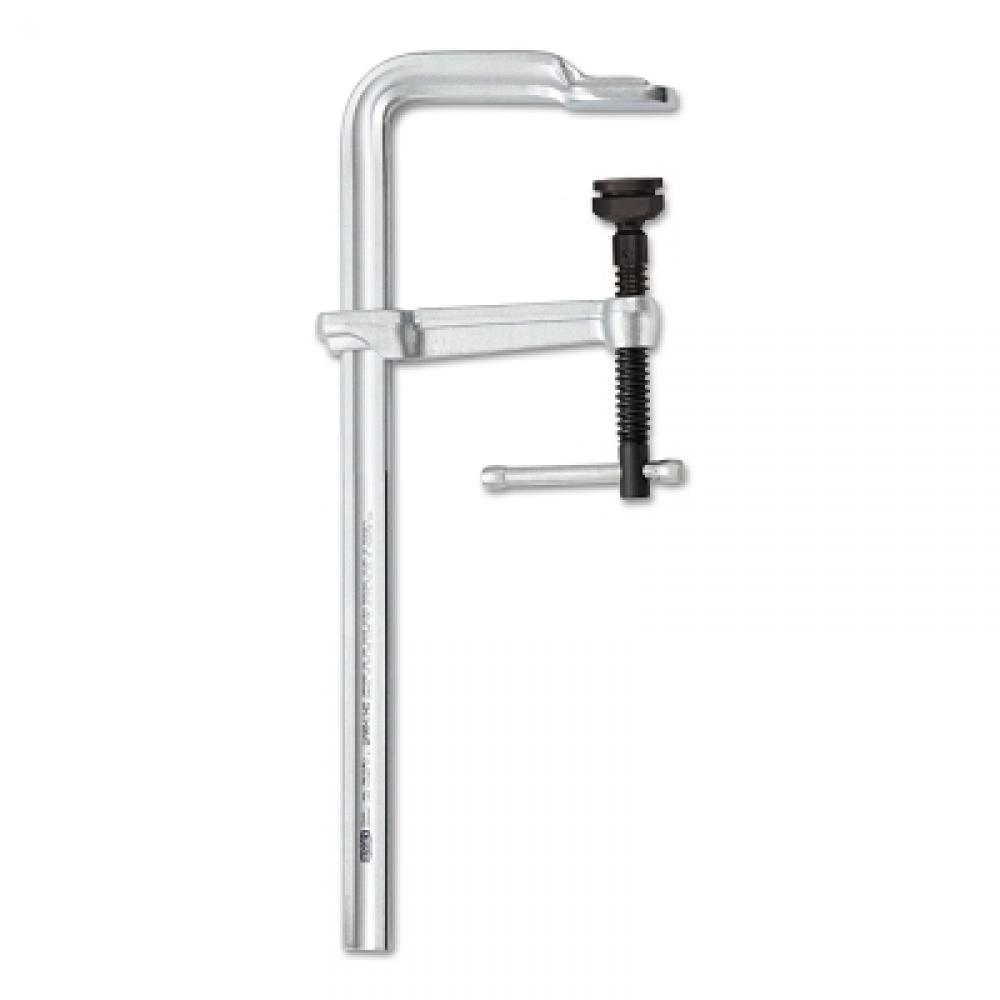

BESSEY SQ Series Bar Clamps

BESSEY SQ Series Bar Clamps
by Bessey

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Shop Floor Bar Clamps, 24 in Opening, 5 1/2 in Throat, 2660 lb Capacity
Regular-duty, all-steel bar clamp|Comes with standard rail profile and standard pad|Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life|The high-strength sliding pin T-Handle is sized according to the clamps capability|
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Specific Products:
Additional Information
Comes with standard rail profile and standard pad
Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life
Regular-duty, all-steel bar clamp
The high-strength sliding pin T-Handle is sized according to the clamps capability
Technical Details
Details
Category:
Clamping, Positioning, Workholding
Subcategory:
Clamps
Subtype:
Bar, Pipe and L-Clamps
B.T.N.A. Cat #:
SQ-24
Bar Thickness:
1-3/16 in
Bar Width:
19/32 in
Body Material:
steel
Brand:
BESSEY
Brand owner GLN:
4008158000008
Brand owner name:
BESSEY® Tools GmbH & Co KG
Brand URL:
www.besseytools.com
CASE GTIN (Master carton):
10788502013724
Clamping Force (Pounds):
2,660
Classification:
L-Clamps
Country of Origin:
DE
Country of Origin #1:
Germany
Cube (Full Pallet, Ft^3):
32.515
Cube (Master carton, Ft^3):
0.854
Cube (Single Item in retail/shipping package, Inch:
368.93
Cube (Single Item out of box, Inches^3):
367.65
Cube(Single Item in retail/shipping package, Ft^3):
0.214
Functional Name:
All-steel sliding arm clamp
GDSN Alpha - 2 Country Code:
DE
GDSN Country Code:
276
GPC (Brick):
10003535
Gross weight (Master carton, Pounds):
44.750
Gross weight (Single Item in retail/shipping packa:
8.750
Handle length (Inches):
4.750
Handle Type:
T-Handle
Height (Full Pallet, Inches):
37.75
Height (Master carton, Inches):
9.000
Height (Single Item in retail/shipping package, In:
1.584
Height (Single Item out of box, Inches):
1.578
Information owner GLN:
0788502000017
Information owner name:
BESSEY® Tools North America
Jaw width (Inches):
1.500
Keywords:
BESSEY, Bessy, Besy, Besey, clamp, all steel, regular duty, sliding arm, SQ serise
Length (Depth, Full Pallet, Inches):
31.500
Length (Depth, Master carton, Inches):
28.500
Length (Depth, Single Item in retail/shipping pack:
28.675
Length (Depth, Single Item out of box, Inches):
28.675
Load Cap. [Nom]:
2660 lb
Locking Type:
Thread Locking
Manufacturer GLN:
4008158000008
Manufacturer NAME:
BESSEY® Tool
Marketing bullet point:
After bending and forming of the fixed jaw the rails are heat treated for maximum strength
Marketing bullet point-2:
Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
Marketing bullet point-3:
Does the work of C Clamps … but does it 9x faster
Marketing bullet point-4:
Drop forged, electro-galvanized steel sliding arm
Marketing bullet point-5:
Heavy duty pad
Marketing bullet point-6:
Replacement arms, spindles and pressure pads are available.
Marketing bullet point-7:
Steel sliding T-bar handle
Marketing Paragraph:
The SQ series regular duty all -steal clamps, are a top selling product and an economical alternative to the BESSEY high-performance 2400 series. It offers a great mixture of size and strength. The standard profiled rail and heavy duty pad of this series m
Maximum torque input (lb-ft):
29.50
National Motor Freight Classification (class):
70
National Motor Freight Classification (code):
18690000
Net weight ( Single Item in retail/shipping packag:
8.750
Net weight (Master carton, Pounds):
43.750
Nominal Capacity (Inches):
24.000
Nominal Throat Depth (Inches):
5.500
Opening Size [Max]:
24 in
Optional parts:
3006786
Optional parts-2:
3101192
Optional parts-3:
3101193
Optional parts-4:
3101330
Optional parts-5:
VAD
Original Equipment Replacement Parts:
3100399
Original Equipment Replacement Parts-2:
3100736
Original Equipment Replacement Parts-3:
3101188
ORS Nasco SKU Number:
013-SQ-24
Packaging Type ( Single Item in retail/shipping pa:
Loose
Pallet GTIN (Full Pallet):
80788502013723
Pieces (Master carton quantity):
5
Product Group:
All-steel
Prop 65 Warning Label:
View
Prop 65 Warning Required:
View
Qty:
1
Quantity (Full Pallet):
105
Quantity of Master Cartons (Full Pallet):
21
Rail Dimensions (Inches):
1-3/16x19/32
Rail Dimensions (MM):
30x15
SKU Group:
BESSEY SQ Series Bar Clamps
Spindle (Thread Pitch):
Tr20 - 5
Spindle dia. (Inches):
0.780
Spindle Diam:
0.787 in
Style:
Standard
Supplier Company Name:
BESSEY® Tools North America
Tare weight (Master carton, Pounds):
1.000
Tare weight (Single Item in retail/shipping packag:
0.000
Taxonomy:
L-Clamps
Throat Depth [Nom]:
5-1/2 in
Type:
Bar Clamp
U of M:
EA
UNSPSC:
27112133
UPC:
00788502013727
UPC/Base Unit or Each:
7 88502 01372 7
Variant:
5-1/2 x 24 inches
Width (Single Item in retail/shipping package, In:
8.125
Width (Full Pallet, Inches):
47.250
Width (Master carton, Inches):
5.750
Width (Single Item out of box, Inches):
8.125
Wt.:
8 lb
