Part Number: 2600W8T / Vendor ID Number: 1128931 / Custom:
GNDML103JX-047J

GNDML103JX-047J
by Sumitomo

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

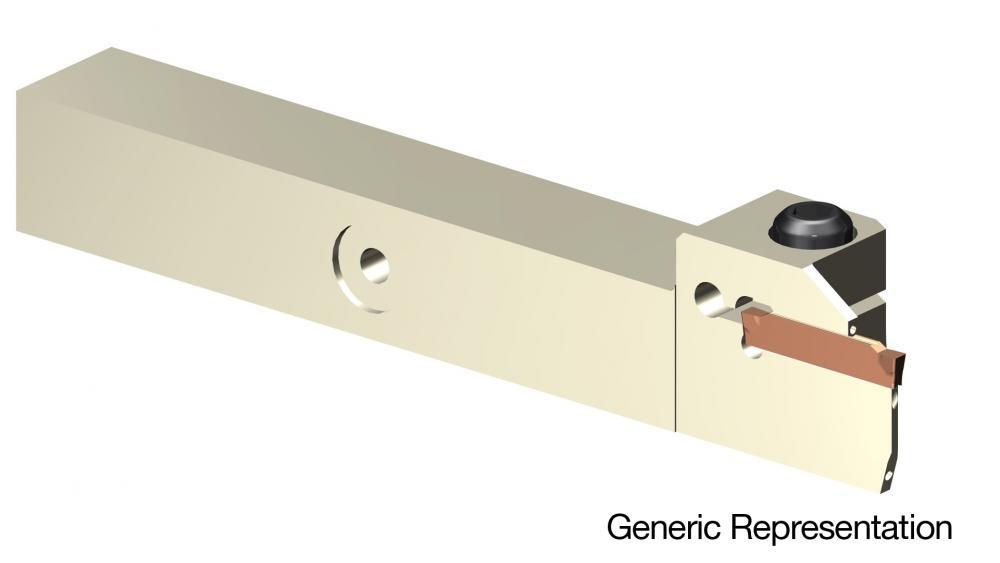

Groove Width 3mm, 3.18mm, 0.118", 0.125", Max Groove Depth 0.47 Inch, Multi-Function OD Grooving Tool, Internal Coolant
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Maximum Depth of Cut:
Hand of Holder:
Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Hand of Holder:
L
Head Length (mm):
1.181
Insert Width (Decimal Inch):
0.1181
Maximum Depth of Cut:
0.47
Overall Length (mm):
4.75
Series:
GND
Through Coolant:
Yes
Coolant Through:
Yes
EDP No.:
2600W8T
Hand:
L
Head Length:
1.181
Insert Compatibility:
GCMN3002, 3mm, 3.18mm, 0.118", 0.125"
Insert Holding Method:
Clamp
Insert Holding Method:
Clamp
Insert Width:
0.1181
Insert Width-2:
3
Maximum Depth of Cut-2:
11.94
Overall Length (OAL):
4.75
Product Code - ANSI:
GNDML103JX-047J
Product Code - Sumitomo:
GNDML103JX-047J
Shank Height:
0.625
Shank Width:
0.625
Tool Holder Style:
Multi-Function OD Grooving Tool, Internal Coolant
Manufactured By:
Sumitomo
