Part Number: 02959819 / Vendor ID Number: 11420 / Custom:
CNMG431-MF2

CNMG431-MF2
by Seco Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Turning Insert

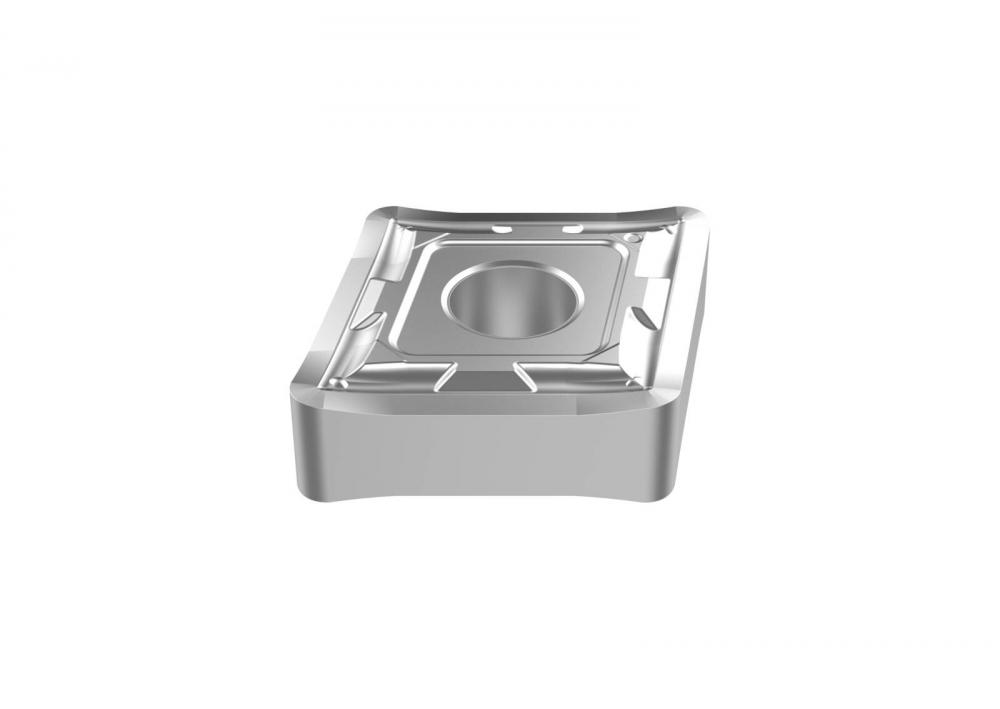

Seco CNMG431-MF2 ISO Turning Insert Duratomic - General Turning Insert
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Insert Seat Size:
Chipbreaker:
Additional options that would change other selections
Grade:
Additional options that would change other selections
Info & Guides
STEP
Technical Details
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts

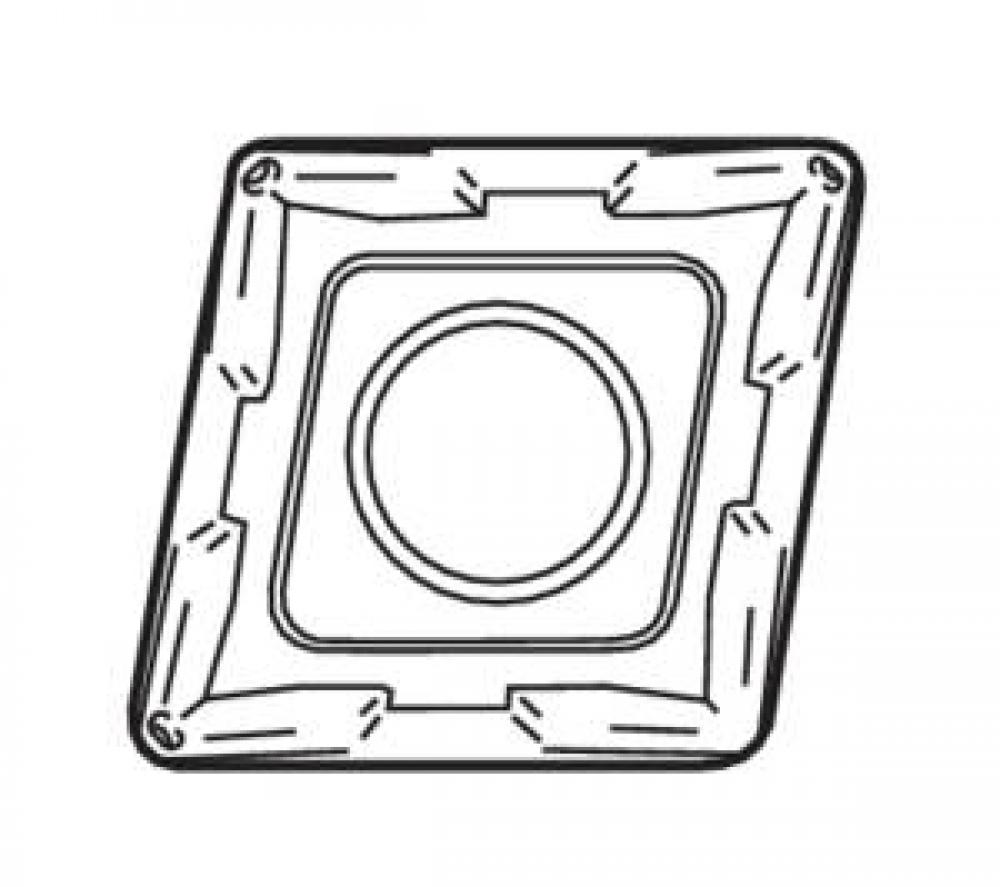

Chipbreaker:
MF2
Grade:
TP2501
Insert Seat Size:
12

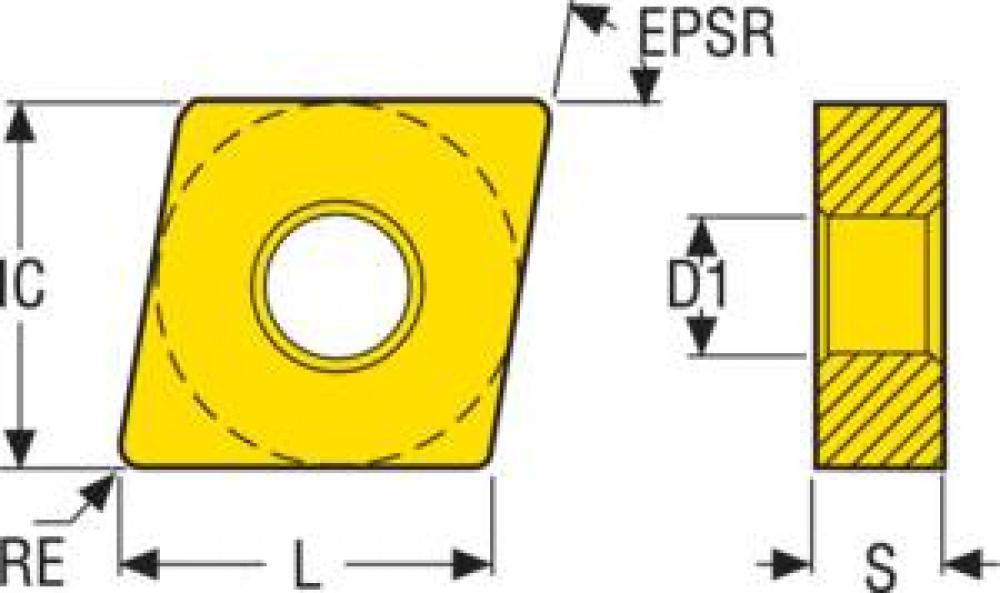

AN - Clearance Angle Major (Deg):
0.0
Brand Name:
Seco
CEDC - Cutting Edge Count:
4
Chipbreaker Description:
-MF2 for finishing-light roughing feeds
D1 - Fixing Hole Dia. (In):
0.203
D1 - Fixing Hole Dia. (mm):
5.15
EPSR - Insert Included Angle (Deg):
80.0
Grade Description:
Grade TP2501-carbide, chrome Duratomic® coating, high versatility-steel
Gradetype:
Carbide CVD
IC - Inscribed Circle Dia. (In):
0.500
IC - Inscribed Circle Dia. (mm):
12.7
IH - Insert Hand:
Neutral
Item Quantity:
10
Item Weight (lbs.):
0.02
L - Theoretical Cutting Edge Length (In):
0.508
L - Theoretical Cutting Edge Length (mm):
12.9
LE - Cutting Edge Effective Length (In):
0.492
LE - Cutting Edge Effective Length (mm):
12.5
Package Height (inches):
0.394
Package Length (inches):
3.543
Package Weight (lbs):
0.2
Package Width (inches):
1.496
Product Series:
CNMG
RE - Radius Value (In):
0.0157
RE - Radius Value (mm):
0.4
S - Insert Thickness (In):
0.187
S - Insert Thickness (mm):
4.76
SC - Insert Shape Code:
C
UPC Number:
59819029001006
Manufactured By:
Seco Tools
