Allied Tools, Inc: 3929 Produce Road, Louisville, KY 40218
Part Number: 5856804 / Vendor ID Number: 1118251 / Custom:
Sandvik Coromant 5856804

Sandvik Coromant 5856804
by Sandvik Coromant

Qty
Product Overview

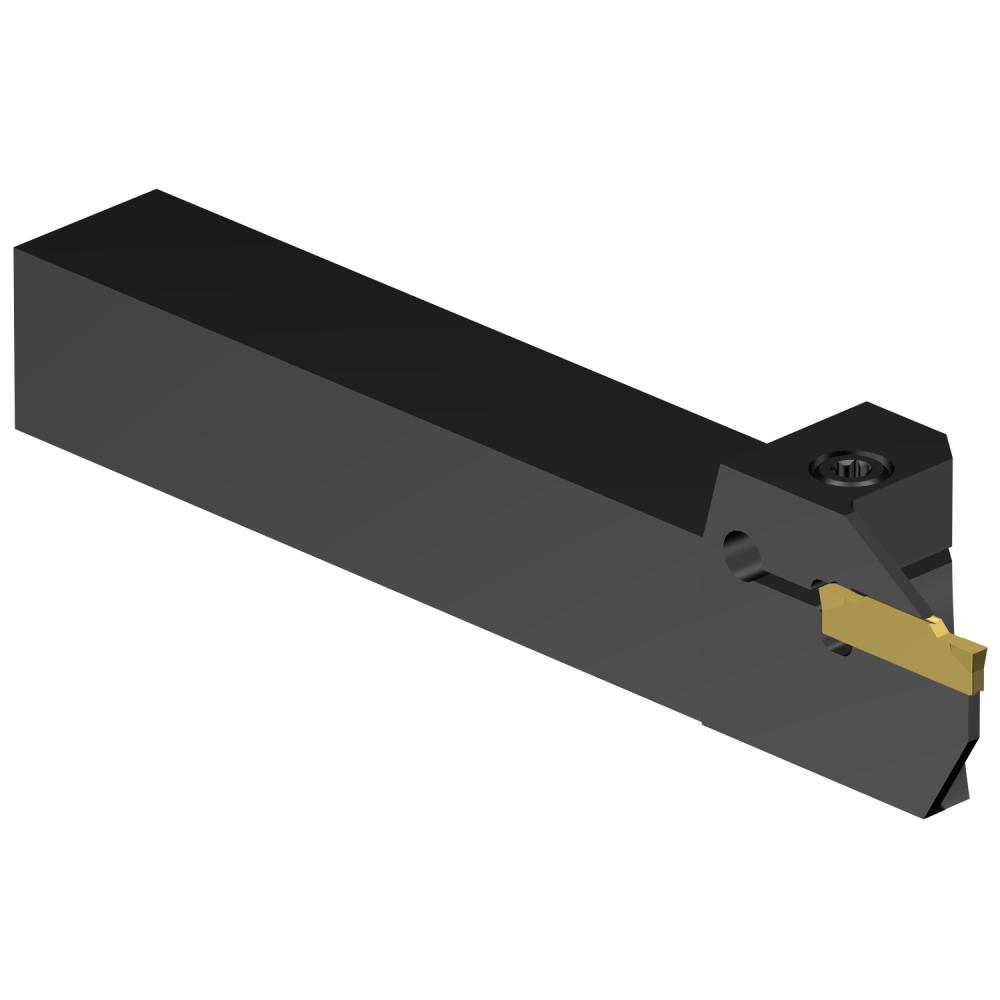

CoroCut® 1-2 shank tool for parting and grooving
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Specific Products:
Info & Guides
Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Bar Code:
25856804
CA Prop 65 Label:
View
Country of Origin:
SE
Country of Origin remark:
Changes to manufacturing schedules may result in the indicated 'Country of Origin' not accurately reflecting the actual country of manufacture.
EAN Number:
25856804
eClass - 10.0:
21181004
eClass - 11.0:
21181004
eClass - 12.0:
21181004
eClass - 4.0:
21010903
eClass - 4.1:
21010903
eClass - 5.0:
21010903
eClass - 5.1:
21010903
eClass - 6.0:
21181004
eClass - 6.1:
21181004
eClass - 6.2:
21181004
eClass - 7.0:
21181004
eClass - 7.1:
21181004
eClass - 8.0:
21181004
eClass - 9.0:
21181004
Gross Weight Packed Product Imperial:
0.78 lbs
Gross Weight Packed Product Metric:
354 g
GTC Generic leaf 1.7:
TRNPEI
GTC Vendor leaf 1.7:
TRNPEI_WSV$$CC_MVKT01
Height Packed Product Imperial:
1.575 inch
Height Packed Product Metric:
40 mm
HS CODE:
846610
IC Code:
14000
ISO Code (packed):
LF123E067-12D
ISO Code (unpacked):
LF123E067-12D
ISO_ADINTMS_adaptive interface machine direction:
Rectangular shank -inch: 3/4 x 3/4
ISO_BAWS_workpiece side body angle:
0 deg
ISO_B_shank width (Imperial):
0.75 inch
ISO_B_shank width (Metric):
19.05 mm
ISO_CDX_cutting depth maximum (Imperial):
0.67 inch
ISO_CDX_cutting depth maximum (Metric):
17.018 mm
ISO_CNSC_coolant entry style code:
0: without coolant
ISO_CUTDIA_work piece parting diameter maximum (Im:
1.66142 inch
ISO_CUTDIA_work piece parting diameter maximum (Me:
42.2 mm
ISO_CUTINT_MASTER_part 2 of cutting item interface:
CoroCut 2 -size E (N123E2-0200-0002-CM)
ISO_CXSC_coolant exit style code:
0: no coolant exit
ISO_HAND_hand:
L
ISO_HF_functional height (Imperial):
0.75 inch
ISO_HF_functional height (Metric):
19.05 mm
ISO_H_shank height (Imperial):
0.75 inch
ISO_H_shank height (Metric):
19.05 mm
ISO_LF_functional length (Imperial):
5 inch
ISO_LF_functional length (Metric):
127 mm
ISO_MTP_clamping type code:
Clamp
ISO_OHX_maximum overhang (Imperial):
1.39843 inch
ISO_OHX_maximum overhang (Metric):
35.52 mm
ISO_SEP_sensor embedded property:
no
ISO_SSC_insert seat size code:
E
ISO_TQ_torque (Imperial):
2.95025 ft lbf
ISO_TQ_torque (Metric):
4 Nm
ISO_WF_functional width (Imperial):
0.769685 inch
ISO_WF_functional width (Metric):
19.55 mm
ISO_WT_weight of item (Imperial):
0.729731 lb
ISO_WT_weight of item (Metric):
331 kg
Item Description:
Tool Item
Item Type:
11
LCS Description:
Released
Length Packed Product Imperial:
5.433 inch
Length Packed Product Metric:
138 mm
Life Cycle State:
20
Material ID.1:
5856804
Material Price Group:
480
Material Price Group Product Description:
Shank Holders, Solid Boring Bars & Adapters–U-Lock & Top-Lok
Material Price Group Product Family:
Carriers for Concept Inserts
Min Order Quantity:
1
New Product Flag (CoroPak):
10.1
Ordering Code:
LF123E067-12D
Ordering Code Packed:
LF123E067-12D
Pack Size:
1
Product Category:
1
Product Category Description:
Standard
Product Code (unpacked):
LF123E067-12D
Product Family Description:
CoroCut 1-2
Product Subfamily Code (TSYC):
R/LF123..D (INCH)
Product Subfamily ID (TSYC):
4267
ProductCode (packed):
LF123E067-12D
Release Date:
2010-02-17 00:00:00
Stock Category:
1
TGNL Account:
880
TGNL Main group:
2
TGNL Sub Group:
10
TPC ID:
TRNP_RA_IND_COR
TPC Name:
Radial P&G Indexable
Unit System (1=metric, 2=inch):
2
UNSPSC - 190501:
27112809
UNSPSC - 200601:
27112809
UNSPSC - 210901:
27112809
UNSPSC - 220601:
27112809
UNSPSC - 230701:
27112809
UNSPSC - 240301:
27112809
UNSPSC - 50415:
27112809
UNSPSC - 60415:
23153308
UNSPSC - 70901:
27112809
Weight of Item (WT) Imperial:
0.73 lbs
Weight of Item (WT) Metric:
331 g
Width Packed Product Imperial:
1.575 inch
Width Packed Product Metric:
40 mm
Manufactured By:
Sandvik Coromant
