Product Overview

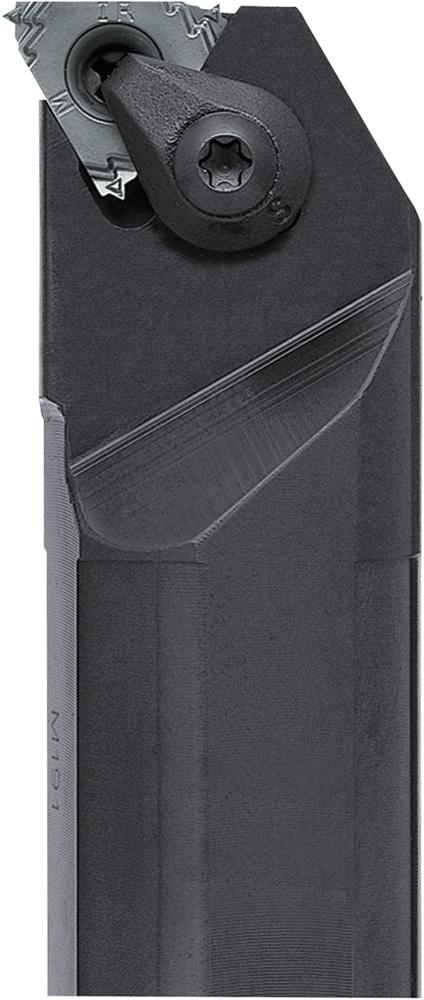

Kyocera CINR 3732S22, Indexable Internal Threading Toolholder

Kyocera CINR 3732S22, Right-Hand, Indexable Internal Threading Toolholder with a 37.00mm Minimum Bore Diameter for Internal Threading Applications

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Thread Standard:

Insert Holding Method:

Additional options that would change other selections

Material:

Additional options that would change other selections

Chipbreaker:

Additional options that would change other selections

Specific Products:

Technical Details

Details

Category:

Turning

Subcategory:

Internal Turning

Subtype:

Internal Threading Toolholders

Insert Holding Method:

Clamp Set

Material:

Steel

Thread Type:

Internal

Additional Manufacturer Part Number:

8817021

ANSI Part Number:

CINR3732S22

Application:

Internal Threading

California Prop 65 Item:

View

Coolant Through (Yes/No):

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Discount Category Description:

Steel / Hardware

ECCN:

EAR99

Feature 1:

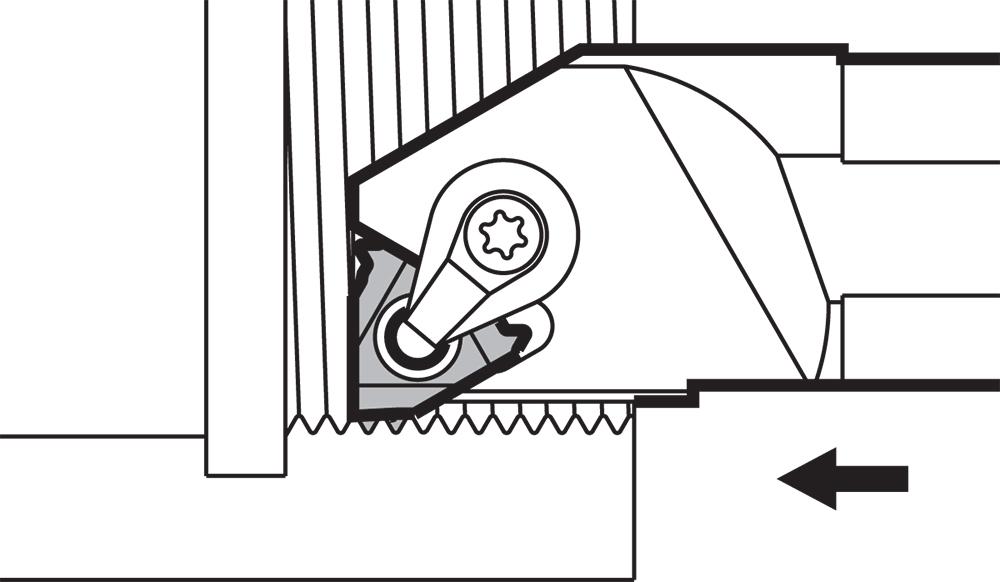

Right-Hand Toolholder for Internal Threading

Feature 2:

Minimum Bore Diameter 37.00mm

Feature 3:

Compatible with Right-Hand, 22IR… inserts

Hand:

Right-Hand

Harmonized Code:

8466.10.0130

ISO Part Number:

CINR3732S-22

Material Group / Grade:

GR99

Min Order Qty:

Origin:

JPN

Pack Height:

1.969

Pack Length:

11.693

Pack Width:

2.126

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8817021

Series Description:

Lay-down Threading

Series.1:

LDT

Shipping Weight:

3.3969

Tool Style:

CIN

Unit (inch/mm):

UNSPSC:

23242106

UNSPSC Title:

Indexable Tool Bodies or Holders

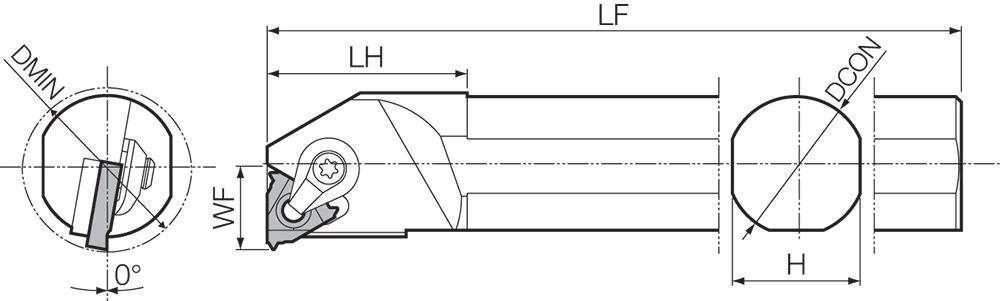

[DCON] Connection Diameter (Decimal Inch):

1.2598

[DCON] Connection Diameter (mm):

32.00

[DMIN] Minimum Bore Diameter (Decimal Inch):

1.4567

[DMIN] Minimum Bore Diameter (mm):

37.00

[H] Shank Height (Decimal Inch):

1.1811

[H] Shank Height (mm):

30.00

Manufactured By:

KYOCERA Precision Tools
