Part Number: OTM86140 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools OTM86140

KYOCERA Precision Tools OTM86140
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Kyocera CS82612, Indexable Countersink
Kyocera CS82612, 1.4640" Max Cutting Diameter, 3/4" Shank Diameter, 1-1/2" Usable Length, 82 Degree, Indexable Countersink
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Material:
Number of Flutes:
Additional options that would change other selections
Technical Details
Details
Category:
Holemaking
Subcategory:
Counter Bore and Counter Sink
Subtype:
Countersinks
Insert Holding Method:
Screw
Material:
Steel
Number of Flutes:
2
Shank Type:
Standard Length
Additional Manufacturer Part Number:
8600746
ANSI Part Number:
CS82612
Application:
Countersinking
California Prop 65 Item:
View
Coolant Through (Yes/No):
No
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
Countersink For Flat Head Cap Screw Sizes 5/8", 3/4"
Feature 2:
For use with Two TCMT 3252 Inserts
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
CS82612
Material Group / Grade:
GR99
Min Order Qty:
1
Number of Inserts:
2
Origin:
USA
Pack Height:
2.250
Pack Length:
4.000
Pack Width:
2.250
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8600746
Series Description:
Countersinks
Series.1:
CS
Shipping Weight:
1.5000
Tool Style:
CS
Unit (inch/mm):
inch
UNSPSC:
27112812
UNSPSC Title:
Countersinks
Weldon Flat:
No

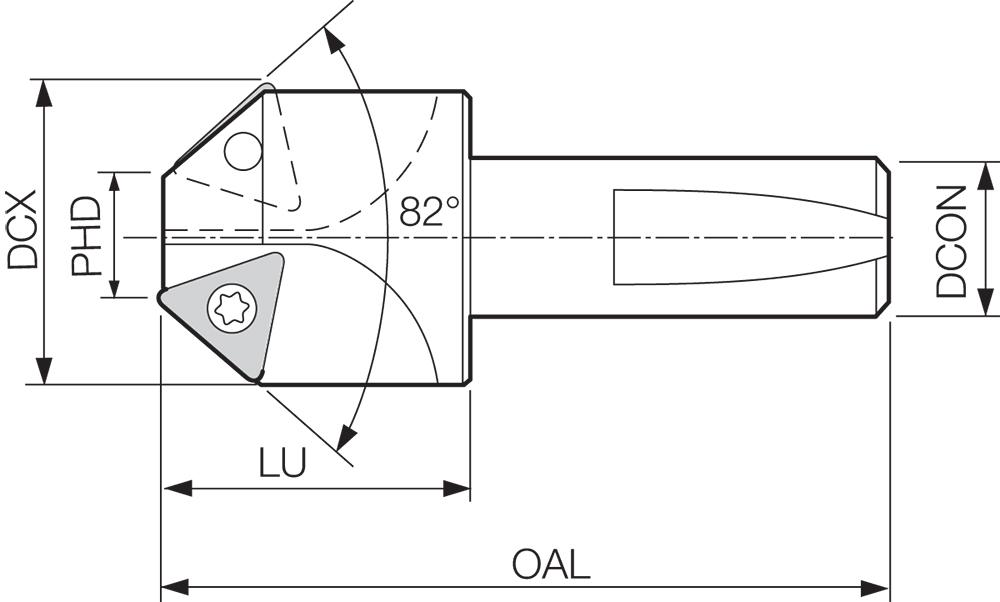

[DCON] Connection Diameter (Decimal Inch):
0.7500
[DCON] Connection Diameter (mm):
19.05
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.4642
[DCX] Cutting Diameter Maximum (mm):
37.19
[DC] Cutting Diameter (Decimal Inch):
1.4642 - 1.4642
[DC] Cutting Diameter (mm):
37.19 - 37.19
[EPSR] Insert Included Angle (Degree):
82
[LU] Usable Length (Decimal Inch):
1.5000
[LU] Usable Length (mm):
38.10
Manufactured By:
KYOCERA Precision Tools
