Item Sales Info
Part Number: 8850703 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools 8850703

KYOCERA Precision Tools 8850703
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

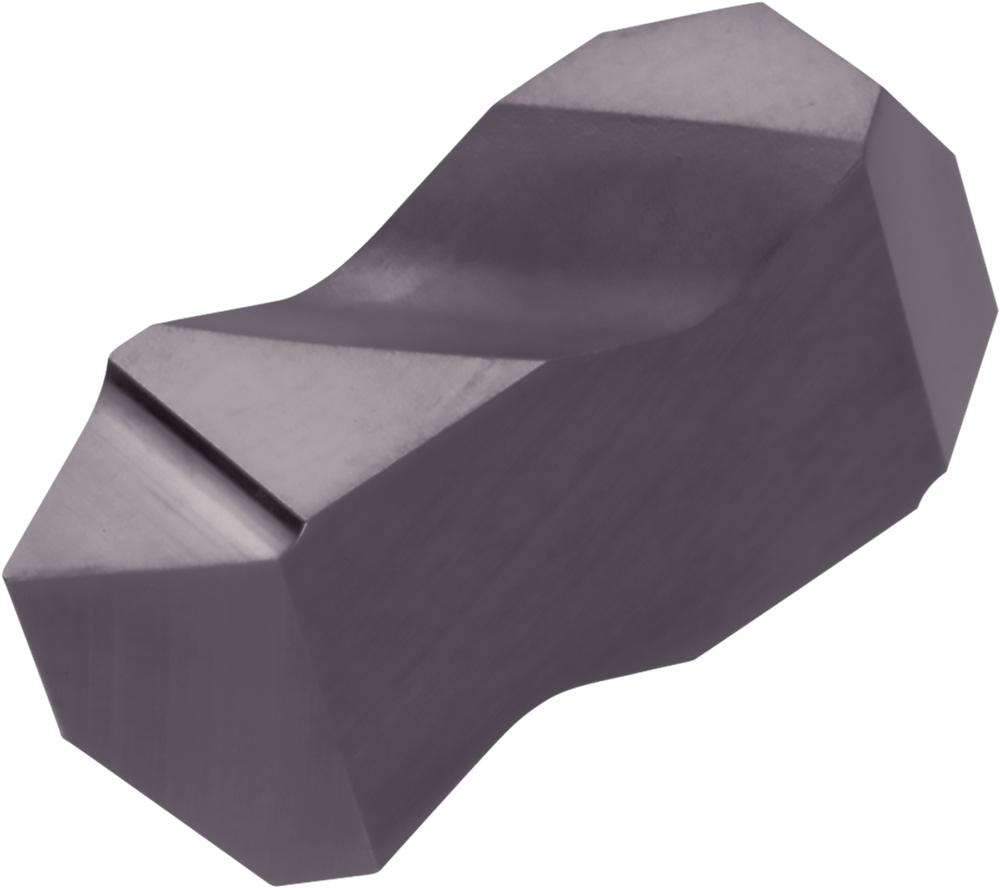

Kyocera KCTP 3R PR1215 Grade PVD Carbide, Indexable Threading Insert
Kyocera KCTP 3R PR1215 Grade PVD Carbide, External & Internal, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Material:
Primary Workpiece Material:
Additional options that would change other selections
Coating Process:
Additional options that would change other selections
Insert Holding Method:
Additional options that would change other selections
Specific Products:
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Inserts
Subtype:
Indexable Cutting Tools
Category Level 4:
Threading Inserts
Coating Process:
PVD
Insert Holding Method:
Clamp
Material:
Carbide
Number of Cutting Edges:
2
Primary Workpiece Material:
(P) Carbon/Alloy Steel
Thread Standard:
Metric (M)|Unified (UN)
Thread Type:
External & Internal
Additional Manufacturer Part Number:
8850703
ANSI Part Number:
KCTP3RPR1215
Application:
External Threading|Internal Threading
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External & Internal Threading with 2 Cutting Edges
Feature 2:
60 Degree Partial Profile for Metric (M), Unified (UN) threads
Feature 3:
Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
Feature 4:
Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1215
Insert Size:
3
ISO Part Number:
KCTP3R
Material Group / Grade:
PR1215
Min Order Qty:
10
Origin:
CHN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8850703
Series Description:
Cera-Notch
Series.1:
CERA
Shipping Weight:
0.2500
Thread Pitch (mm):
External M: 1.5-4.0, Internal M: 2.25-5.0
Thread Pitch (TPI):
External UN: 6-20, Internal UN:5-12
Thread Profile:
60 Degree Partial Profile
Tool Style:
KCTP
Unit (inch/mm):
inch/mm
UNSPSC:
23291804
UNSPSC Title:
Threading Insert
Usage Classification:
Continuous
[RE] Corner Radius:
0.007"
[RE] Corner Radius (mm):
0.18
[S] Thickness:
0.344"
[S] Thickness (mm):
8.74
Manufactured By:
KYOCERA Precision Tools
