Part Number: DCH263B / Vendor ID Number: 1152811 / Custom:

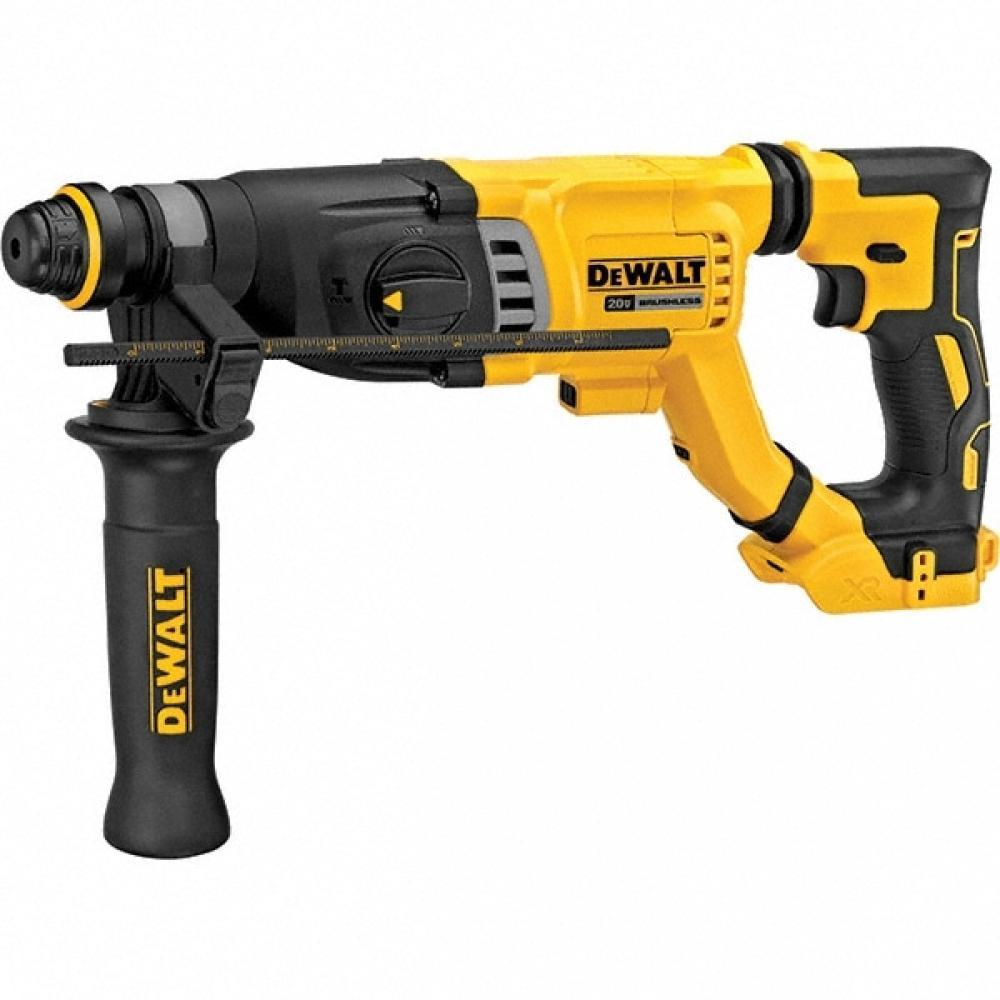

DEWALT 20V Max Rotary Hammer, Sds Plus, 1-1/8-Inch, Tool Only

DEWALT 20V Max Rotary Hammer, Sds Plus, 1-1/8-Inch, Tool Only
by DEWALT

Qty
Product Overview
1-1/8IN 20V MAX SDS PLUS ROTARY HAMMER
DEWALT ROTARY HAMMER 17.0
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
ACCESSORIES / INCLUDES:
DCH263 Rotary Hammer
ACCESSORIES / INCLUDES.1:
360° side handle
ACCESSORIES / INCLUDES.2:
Depth Rod
ADJUSTABLE HANDLE:
Yes
APP COMPATIBILITY:
No
ARBOR SIZE:
5/8 in
Attribute 03 - PRODUCT APPLICATION:
DRILLING
BARCODE US:
8.86E+11
BARE TOOL (Y/N):
Yes
BATTERY AMP HOURS (Ah):
0
BATTERY INCLUDED:
No
BATTERY QTY:
0
BATTERY REQUIRED:
Yes
BATTERY TYPE:
20V MAX* Lithium Ion
BLUETOOTH COMPATIBILITY (Y/N):
No
BRAND TAGLINE:
GUARANTEED TOUGH.
CASE TYPE:
No Case Included
CERTIFICATIONS or LISTINGS:
CSA Listed
CHARGER INCLUDED (Y/N):
No
CHUCK CAPACITY:
1-1/8 In.
CHUCK SIZE:
1-1/8 in
CHUCK TYPE:
SDS-Max
CLAIMS NEEDED (Y/N):
No
COLOR FAMILY:
Black
COLOR FAMILY.1:
Yellow
COMMODITY CODE:
8467290080
CORDLESS VS. CORDED:
Cordless
Country Name_US:
China
Country of Origin_US:
CN
CUBIC SIZE - en-US:
496.71 IN
DISCLAIMER:
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
DRILL TYPE:
Rotary Hammer
eCommerce Copy - en-US:
The 20V MAX Brushless 1-1/8-inch Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 3.0 Joules of impact energy. The lightweight design makes this tool ideal for forming, #3 to #5 po
ELECTRONIC SPEED CONTROL:
No
Feature & Benefit Value - en-US:
3.0 Joules of impact energy for fast drilling in concrete.
Feature & Benefit Value - en-US.1:
SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
Feature & Benefit Value - en-US.2:
Lightweight design makes this tool ideal for forming, #3 to #5 post installed rebar dowelling, tilt wall support, rod hanging, beam & column anchorage, and steel stanchion mounting.
Feature & Benefit Value - en-US.3:
OSHA Table 1 Compliant when paired with DWH205DH On Board Extractor.
Feature & Benefit Value - en-US.4:
Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
Feature & Benefit Value - en-US.5:
Rotating Dial to set tool to a specific applicaiton mode - Drill, Hammer Drill, or Chip.
GRINDING WHEEL INCLUDED (Y/N):
No
HANDLE MATERIAL:
Plastic
HANDLE TYPE:
Side Handle
HOUSING MATERIAL:
Plastic
IMPACT ENERGY:
3
INDIVIDUAL VS. SET (SYNDIGO):
INDIVIDUAL
Integrated Work Light (Y/N):
Yes
ITEMS PER PALLET LAYER:
24
LAYERS PER PALLET:
5
Master Height (Inches) US:
8.375 IN
Master Length (Inches) US:
17.563 IN
Master Quantity US:
3
MASTER UPC US:
4.00E+13
Master Weight (Pounds) US:
21.150 LB
Master Width (Inches) US:
12.625 IN
Masters Per Pallet (If Available) US:
5
MAXIMUM SPEED (RPM):
1150 RPM
MINIMUM ORDER QTY US:
1
MOTOR TYPE:
Brushless
OVERLOAD PROTECTION:
Yes
Pack Height (Inches) US:
4 IN
Pack Length (Inches) US:
17 IN
Pack Weight (Pounds) US:
6.6 LB
Pack Width (Inches) US:
7.689 IN
PACKAGING LEVEL:
BASE_UNIT_OR_EACH
Pallet Height (Inches) US:
46.880 IN
Pallet Length (Inches) US:
48.000 IN
Pallet Material Status US:
6
Pallet Quantity US:
120
PALLET UPC US:
6.09E+13
Pallet Weight (Pounds) US:
846.000 LB
Pallet Width (Inches) US:
40.000 IN
POWER SOURCE:
ELECTRICITY
PRODUCT APPLICATION:
DRILLING
PRODUCT HEIGHT US:
3.800 IN
PRODUCT LENGTH US:
17.000 IN
PRODUCT PRIMARY MATERIAL:
Plastic
PRODUCT UPC US:
8.86E+11
PRODUCT WEIGHT US:
6.750 LB
PRODUCT WIDTH US:
7.689 IN
PROP 65 GENERIC WARNING:
View
REPLACEABLE BRUSHES:
Yes
REVERSIBLE:
Yes
SALES ORG US:
20
SEO KEYWORDS:
20V MAX*
SEO KEYWORDS.1:
XR®
SEO KEYWORDS.10:
DCH263B
SEO KEYWORDS.2:
Brushless
SEO KEYWORDS.3:
1-1/8 in.
SEO KEYWORDS.4:
SDS Plus
SEO KEYWORDS.5:
D-Handle
SEO KEYWORDS.6:
Rotary
SEO KEYWORDS.7:
Hammer
SEO KEYWORDS.8:
Tool Only
SEO KEYWORDS.9:
DEWALT
SIDE HANDLE INCLUDED (Y/N):
Yes
SPINDLE LOCK:
Yes
SUB-BRAND:
20V MAX
SUB-BRAND.1:
SHOCKS
SUB-BRAND.2:
SDS+
SWITCH TYPE:
Trigger
THIN WALL BIT CAPACTIY (Y/N):
No
UN Country Code_US:
156
VARIABLE SPEED (Y/N):
Yes
Voltage (V):
20 V
WARRANTY:
3LW1YS90D
WIFI COMPATIBILITY (Y/N):
No
WORKS WITH ANDROID (Y/N):
No
WORKS WITH IOS (Y/N):
No
Manufactured By:
DEWALT
