Item Sales Info
Part Number: DCN21PLM1 / Vendor ID Number: 1152811 / Custom:

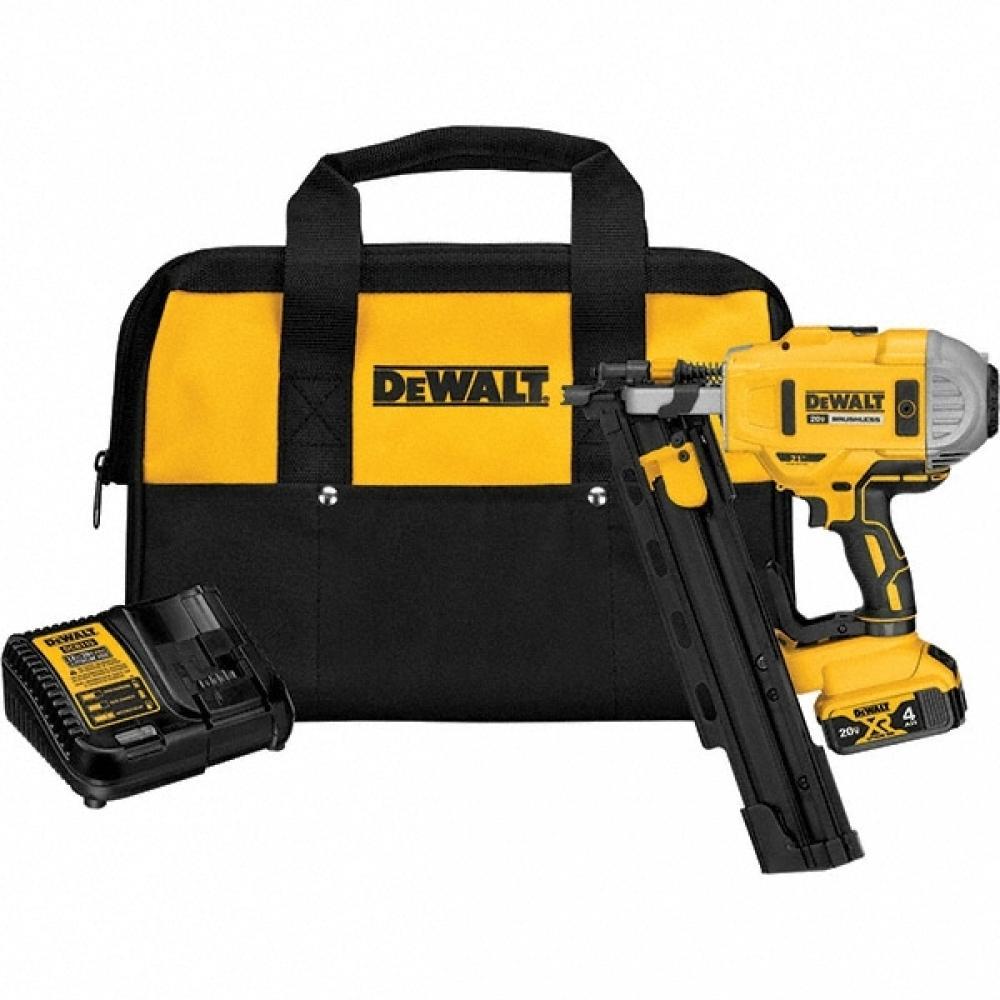

DEWALT 20V MAX* 21 degree Plastic Collated Cordless Framing Nailer Kit

DEWALT 20V MAX* 21 degree Plastic Collated Cordless Framing Nailer Kit
by DEWALT

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
20V MAX 21 DEG PLASTIC FRAMER KIT
DEWALT NAILER: FRAMING 18.1
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Specific Products:
Technical Details
Details
ACCESSORIES / INCLUDES:
DCN21PL Framing Nailer
ACCESSORIES / INCLUDES.1:
No-mar tip
ACCESSORIES / INCLUDES.2:
Manual
ACCESSORIES / INCLUDES.3:
DCB204 20V MAX* Battery
ACCESSORIES / INCLUDES.4:
DCB115 Charger
ACCESSORIES / INCLUDES.5:
Kit Bag
ADJUSTABLE DEPTH SETTING:
Yes (Tools Not Required)
Attribute 03 - PRODUCT APPLICATION:
FRAMING
BARCODE US:
8.86E+11
BATTERY AMP HOURS (Ah):
4 Ah
BATTERY INCLUDED:
Yes
BATTERY QTY:
1
BATTERY REQUIRED:
Yes
BATTERY TYPE:
20V MAX* Lithium Ion
BRAND TAGLINE:
GUARANTEED TOUGH.
CASE TYPE:
Soft
CERTIFICATIONS or LISTINGS:
ANSI Safety Listing
CERTIFICATIONS or LISTINGS.1:
CSA Certified
CERTIFICATIONS or LISTINGS.2:
UL Listed
CHARGE TIME:
1
CHARGER INCLUDED (Y/N):
Yes
CHARGER TYPE:
Jack Plug
CLAIMS NEEDED (Y/N):
Yes
COLOR FAMILY:
Black
COLOR FAMILY.1:
Yellow
COMMODITY CODE:
8467290090
CORDLESS VS. CORDED:
Cordless
Country Name_US:
Mexico
Country of Origin_US:
MX
CUBIC SIZE - en-US:
2741.67 IN
DISCLAIMER:
* Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
eCommerce Copy - en-US:
The 20V MAX 21 degree Plastic Collated Cordless Framing Nailer delivers the performance demanded by pros to get the job done. The DCN21PL can drive a range of plastic collated fasteners up to 3-1/4 in. and 0.148 in. diameter into a wide range of materials.
Electrical Cord Configuration:
Cordless
ENGINE:
Brushless
FASTENER FORMAT:
Strip
FASTENER LENGTH:
3.25
Feature & Benefit Value - en-US:
Dual-Speed Motor Optimized To Drive A Wide Range Of Fasteners For Versatility
Feature & Benefit Value - en-US.1:
Tool-free selector switch for sequential or bump-fire modes
Feature & Benefit Value - en-US.2:
Tool-free depth adjustment for precise nail placement
Feature & Benefit Value - en-US.3:
High-strength aluminum magazine with easy-to-operate pusher latch
Feature & Benefit Value - en-US.4:
Stall release lever to reset driver blade in the event of a jam
Feature & Benefit Value - en-US.5:
Adjustable rafter hook
Feature & Benefit Value - en-US.6:
Easy access to the nosepiece for removing jammed nails
Feature & Benefit Value - en-US.7:
Dry fire lock out prevents tool from firing when nails are low
Feature & Benefit Value - en-US.8:
21° magazine holds up to 49 plastic collated nails
Feature & Benefit Value - en-US.9:
Capable of driving 0.0148 in. diameter nail into dense lumber
FIRING MODE:
Full Sequential
HAZMAT:
Li-Ion (<101 WH)
HAZMAT CODE:
A1
HOUSING MATERIAL:
Plastic
INDIVIDUAL VS. SET (SYNDIGO):
SET
INTEGRATED RAFTER HOOK (Y/N):
Yes
Integrated Work Light (Y/N):
Not Featured
ITEMS PER PALLET LAYER:
4
LAYERS PER PALLET:
5
LOADING TYPE:
Coil
MAGAZINE ANGLE:
21
MAGAZINE CAPACITY:
49
Master Height (Inches) US:
8.5 IN
Master Length (Inches) US:
17.938 IN
Master Quantity US:
1
Master Width (Inches) US:
17.625 IN
Masters Per Pallet (If Available) US:
5
MAXIMUM FASTENER SIZE:
3-1/4 in
MINIMUM FASTENER SIZE:
2 in
MINIMUM ORDER QTY US:
1
MOTOR TYPE:
Brushless
MULTI-PURPOSE:
Single Purpose
NAIL GUN ANGLE:
21 degree
NAILER FEATURES:
No Features
NAILER TYPE:
Framing
NAILS PER CHARGE:
845
Net Lit-Ion Y/N:
Yes
NUMBER OF BATTERIES REQUIRED:
1
Pack Height (Inches) US:
8.5 IN
Pack Length (Inches) US:
18.07 IN
Pack Weight (Pounds) US:
15.2 LB
Pack Width (Inches) US:
17.85 IN
PACKAGING LEVEL:
BASE_UNIT_OR_EACH
Pallet Height (Inches) US:
46.88 IN
Pallet Length (Inches) US:
48 IN
Pallet Material Status US:
6
Pallet Quantity US:
20
PALLET UPC US:
6.09E+13
Pallet Weight (Pounds) US:
304 LB
Pallet Width (Inches) US:
40 IN
POWER SOURCE:
ELECTRICITY
PRODUCT APPLICATION:
FRAMING
PRODUCT HEIGHT US:
8.5 IN
PRODUCT LENGTH US:
18.07 IN
PRODUCT UPC US:
8.86E+11
PRODUCT WEIGHT US:
15.2 LB
PRODUCT WIDTH US:
17.85 IN
PROP 65 GENERIC WARNING:
View
RANGE:
2” x .113” – 3-1/4” x .148”
SALES ORG US:
20
SEO KEYWORDS:
20V MAX*
SEO KEYWORDS.1:
21 Degree
SEO KEYWORDS.2:
Plastic
SEO KEYWORDS.3:
Collated
SEO KEYWORDS.4:
Cordless
SEO KEYWORDS.5:
Framing
SEO KEYWORDS.6:
Nailer
SEO KEYWORDS.7:
Kit
SEO KEYWORDS.8:
DEWALT
SEO KEYWORDS.9:
DCN21PLM1
SUB-BRAND:
20V MAX
UN Country Code_US:
484
UNCERTAINTY K1 (Vibration):
1.5
VIDEOS:
http://images.salsify.com/video/upload/s--fxdnE4Xt--/39f95ee8513a2f2578a5a48e9f84d9f187d5312e.mp4
Voltage (V):
20 V
WARRANTY:
3LW1YS90D
WATT HOURS:
80
Manufactured By:
DEWALT
