Part Number: 4800S12 / Vendor ID Number: 1152441 / Custom:

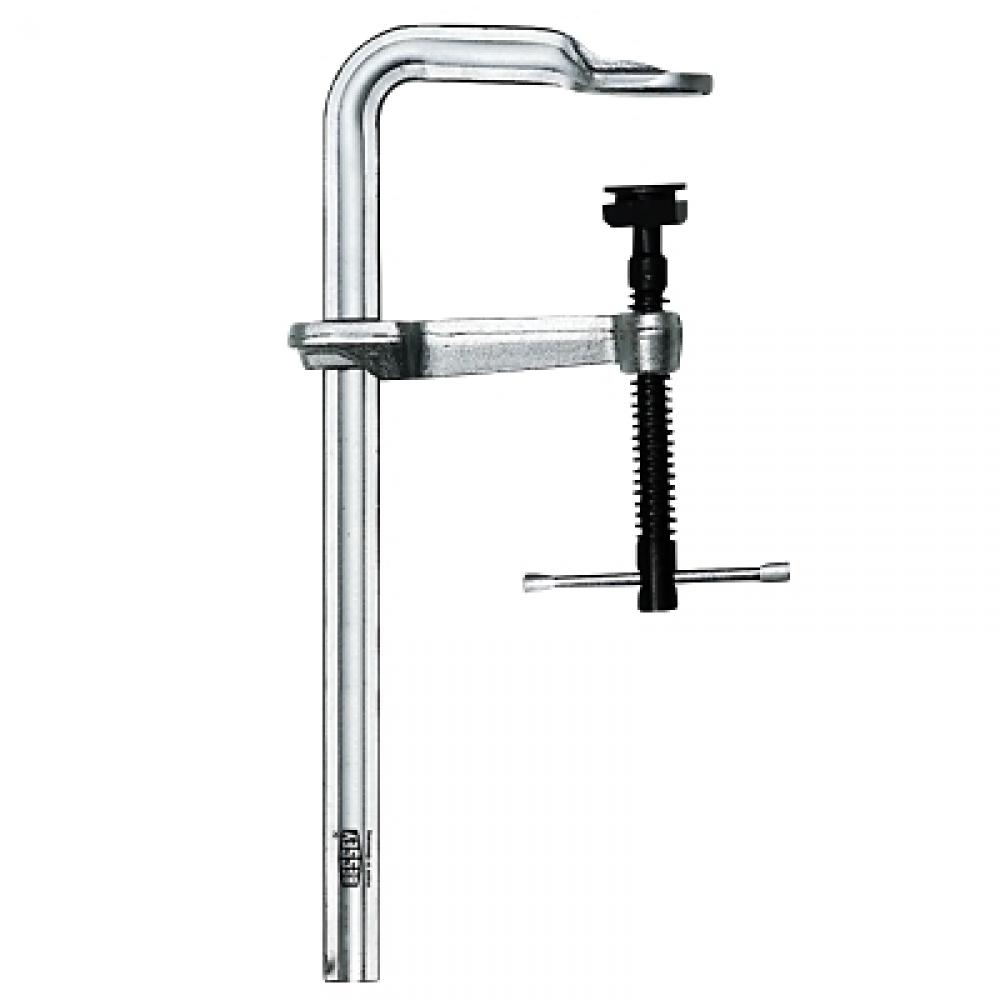

BESSEY 4800S Series Bar Clamps

BESSEY 4800S Series Bar Clamps
by Bessey

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
4800S Series Bar Clamps, 12 in, 7 in Throat, 4,880 lb Load Cap
MorPad tilts to 35|Forged sliding arm is made from tempered drop-forged steel for long service life|High strength electro-galvanized sliding pin T-handle rounded ends for comfort, size engineered to load capacity|Heat treated, high carbon Acme threaded screw tempered and quenched to give greater load capacity with longer service life|
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Specific Products:
Additional Information
Forged sliding arm is made from tempered drop-forged steel for long service life
Heat treated, high carbon Acme threaded screw tempered and quenched to give greater load capacity with longer service life
High strength electro-galvanized sliding pin T-handle rounded ends for comfort, size engineered to load capacity
MorPad tilts to 35
Technical Details
Details
Category:
Clamping, Positioning, Workholding
Subcategory:
Clamps
Subtype:
Bar, Pipe and L-Clamps
B.T.N.A. Cat #:
4800S-12
Body Finish:
Satin
Body Material:
steel
Brand:
BESSEY
Brand owner GLN:
4008158000008
Brand owner name:
BESSEY® Tools GmbH & Co KG
Brand URL:
www.besseytools.com
Capacity [Nom]:
12 in
Clamping Force (Pounds):
4,880
Classification:
L-Clamps
Country of Origin:
DE
Country of Origin #1:
Germany
Cube (Single Item in retail/shipping package, Inch:
299.65
Cube (Single Item out of box, Inches^3):
332.36
Cube(Single Item in retail/shipping package, Ft^3):
0.173
Functional Name:
All-steel sliding arm clamp
GDSN Alpha - 2 Country Code:
DE
GDSN Country Code:
276
GPC (Brick):
10003535
Gross weight (Single Item in retail/shipping packa:
12.400
Handle length (Inches):
6.875
Handle Material:
Tempered Steel
Handle Type:
Sliding Pin T-Handle
Hazmat:
N
Height (Full Pallet, Inches):
25.000
Height (Single Item in retail/shipping package, In:
1.578
Height (Single Item out of box, Inches):
1.750
Height [Nom]:
1.578 in
Information owner GLN:
0788502000017
Information owner name:
BESSEY® Tools North America
Jaw width (Inches):
1.750
Keywords:
BESSEY, Bessy, Besy, Besey, bar clamp, heavy duty, all steel, sliding arm
Length (Depth, Full Pallet, Inches):
31.500
Length (Depth, Single Item in retail/shipping pack:
17.872
Length (Depth, Single Item out of box, Inches):
17.875
Length [Nom]:
17 7/8 in
Load Cap. [Nom]:
4,880 lb
Manufacturer GLN:
4008158000008
Manufacturer NAME:
BESSEY® Tool
Marketing bullet point:
After bending and forming of the fixed jaw the rails are heat treated for maximum strength
Marketing bullet point-2:
Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
Marketing bullet point-3:
Does the work of C Clamps … but does it 9x faster
Marketing bullet point-4:
Replacement arms, spindles and MorPads are available
Marketing bullet point-5:
Sliding arm is made of tempered, drop-forged steel
Marketing bullet point-6:
Specially hardened spindle resists weld spatter
Marketing bullet point-7:
Unique BESSEY MorPad tilts to 35°
Marketing Paragraph:
Premium all-steel bar clamps from BESSEY® deliver uncompromising quality, patented features, durability and real-world productivity make it a must-have tool in today’s modern workshop. With clamping forces ranging from 700 lbs up to 8500 lbs virtually
Material:
Steel
Maximum torque input (lb-ft):
51.60
National Motor Freight Classification (class):
70
National Motor Freight Classification (code):
18690000
Net weight ( Single Item in retail/shipping packag:
12.400
Nominal Capacity (Inches):
12.000
Nominal Throat Depth (Inches):
7.000
Opening Size [Max]:
12 in
Optional parts:
3101192
Optional parts-2:
3101193
Original Equipment Replacement Parts:
3100400
Original Equipment Replacement Parts-2:
3100736
Original Equipment Replacement Parts-3:
3101332
ORS Nasco SKU Number:
013-4800S-12
Packaging Type ( Single Item in retail/shipping pa:
Loose
Pallet GTIN (Full Pallet):
80788502008101
Product Group:
All-steel
Prop 65 Warning Label:
View
Prop 65 Warning Required:
View
Qty:
1
Quantity (Full Pallet):
130
Quantity of Master Cartons (Full Pallet):
bulk
Rail Dimensions (Inches):
1-37/64X25/32
Rail Dimensions (MM):
40X20
SKU Group:
BESSEY 4800S Series Bar Clamps
Spindle (Thread Pitch):
Tr22 - 5
Spindle dia. (Inches):
0.850
Spindle Diam:
0.85 in
Style:
Heavy-Duty
Supplier Company Name:
BESSEY® Tools North America
Tare weight (Single Item in retail/shipping packag:
0.000
Taxonomy:
L-Clamps
Throat Depth [Nom]:
7 in
U of M:
PC
UNSPSC:
27112133
UPC:
00788502008105
UPC/Base Unit or Each:
7 88502 00810 5
Variant:
7 x 12 inches
Width (Single Item in retail/shipping package, In:
10.625
Width (Full Pallet, Inches):
47.250
Width (Single Item out of box, Inches):
10.625
Width [Nom]:
10 5/8 in
Wt.:
12 lb
