Part Number: 3996360 / Vendor ID Number: 12061 / Custom:

M8090D160Z15S40SN12

M8090D160Z15S40SN12
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

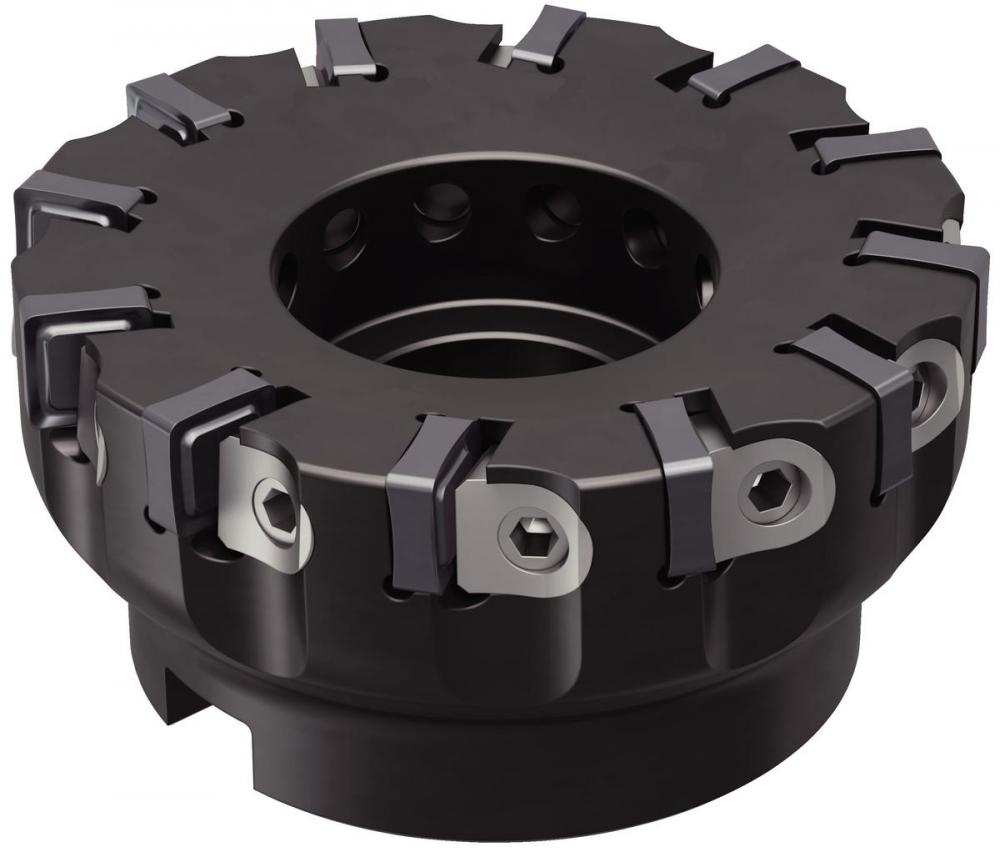

M8090 FACE MILL D160 Z15 SN1204

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable Face Mills

Insert Shape:

S-Square 90

Number of Flutes:

15

Adapter Style Machine Side:

C-Bolt Circle

Adapter Style Machine Side-Marcom Calc:

C-Bolt Circle

Adapter Type Machine Side:

Shell Mill

ANSI Catalog Number:

M8090D160Z15S40SN12

Body Material Group:

Steel

Catalog Gage Insert 1:

SNHF120412SNMM

Center Cutting Tool:

No Center Cutting

Clamping Type:

F - Wedge Clamp Before Insert

Coolant Supply:

No

Engineering Tool Family:

M8090

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

Insert Shape - Marcom Calc:

Square 90

IntFace Catalog Gage Insert 1:

SNHF120412SNMM

ISO Catalog Number:

M8090D160Z15S40SN12

MAKTX (SAP Description):

M8090 FACE MILL D160 Z15 SN1204

Milling Type:

F-Face Mill (Shell Mill)

Number of Adjustable Inserts:

0

Number of Inserts:

15

SAP Material Number:

3996360

[AP1MAX]1st Max Cut Depth In:

0.4528

[AP1MAX]1st Max Cut Depth mm:

11.5000

[CUBMS]Unit of Tool:

MM - Metric

[D1MAX]Maximum Cutting Dia in:

6.3141

[D1MAX]Maximum Cutting Dia mm:

160.3790

[D1]Effective Cutting Dia In:

6.2992

[D1]Effective Cutting Dia mm:

160.0000

[D2]Body Diameter Max Inch:

6.2205

[D2]Body Diameter Max Metric:

158.0000

[D4]Bolt Circle 1 Inch:

2.6260

[D4]Bolt Circle 1 Metric:

66.7000

[D6] Hub Diameter Inch:

3.5433

[D6] Hub Diameter Metric:

90.0000

[D]Adapter/Shank/Bore Dia Inch:

1.5748

[D]Adapter/Shank/Bore Dia mm:

40.0000

[GAMMAF] Radial Rake Angle:

-12.000

[GAMMAP] Axial Rake Angle:

-3.000

[KRA] Lead Angle ANSI:

1.000

[KRI] Lead Angle ISO:

89.000

[L1]Gage Length Inch:

2.4803

[L1]Gage Length Metric:

63.0000

[LBX]Body Length Max Inch:

2.4803

[LBX]Body Length Max Metric:

63.0000

[LF]Functional Length Inch:

2.4803

[LF]Functional Length Metric:

63.0000

[LTA]Tool Assembly Length Inch:

2.4803

[LTA]Tool Assembly Length mm:

63.0000

[L] Overall Length Inch:

2.4803

[L] Overall Length Metric:

63.0000

Manufactured By:

WIDIA
