Item Sales Info

Part Number: 3940708 / Vendor ID Number: 12061 / Custom:

M170D025Z03B25RD10

M170D025Z03B25RD10
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

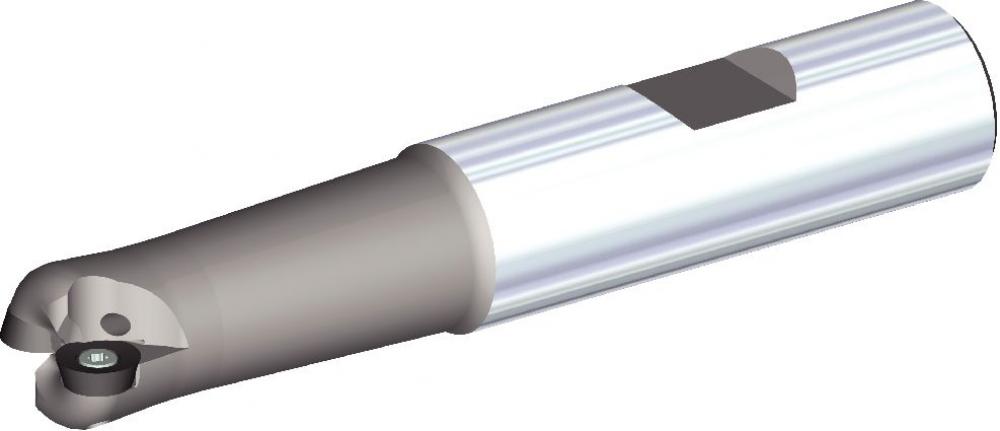

M170 COPY MILL D25 0 Z3

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable Face Mills

Insert Shape:

R-Round

Number of Flutes:

3

Adapter Style Machine Side:

Weldon

Adapter Style Machine Side-Marcom Calc:

Weldon Shank

Adapter Type Machine Side:

Cylindrical

ANSI Catalog Number:

M170D025Z03B25RD10

Body Material Group:

Steel

Catalog Gage Insert 1:

RD.X1003..

Center Cutting Tool:

No Center Cutting

Clamping Type:

S - Screw Clamping

Coolant Entry Style:

Concentric Axial Coolant

Coolant Exit:

Angular Axial Coolant Exit

Coolant Supply:

Yes

Engineering Tool Family:

M170 RD1003

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

Insert Shape - Marcom Calc:

Round

Insert Shape_228:

R-Round

IntFace Catalog Gage Insert 1:

RDPX1003M0SN..

IntFace Catalog Gage Insert 1_229:

RDPX1003M0SN..

ISO Catalog Number:

M170D025Z03B25RD10

MAKTX (SAP Description):

M170 COPY MILL D25 0 Z3

Max RPM:

12900

Maximum Ramping Angle:

9.000

Milling Type:

E-End Mill

Number of Adjustable Inserts:

0

Number of Center Cutting Edges:

0

Number of Ends:

1 - Single Ended End Mill

Number of Flutes_231:

3

Number of Inserts:

3

SAP Material Number:

3940708

[A1]Coolant Hole Dia. Exit In:

0.0827

[A1]Coolant Hole Dia. Exit mm:

2.1000

[AP1MAX]1st Max Cut Depth In:

0.1970

[AP1MAX]1st Max Cut Depth mm:

5.0000

[A]Coolant Hole Dia Inch:

0.1575

[A]Coolant Hole Diameter Metric:

4.0000

[CUBMS]Unit of Tool:

MM - Metric

[D1MAX]Maximum Cutting Dia in:

0.9840

[D1MAX]Maximum Cutting Dia mm:

25.0000

[D1]Effective Cutting Dia In:

0.5910

[D1]Effective Cutting Dia mm:

15.0000

[D]Adapter/Shank/Bore Dia Inch:

0.9843

[D]Adapter/Shank/Bore Dia mm:

25.0000

[GAMMAF] Radial Rake Angle:

-1.000

[GAMMAF] Radial Rake Angle_67:

-1.000

[KRA] Lead Angle ANSI:

0.000

[KRA] Lead Angle ANSI_94:

0.000

[KRI] Lead Angle ISO:

90.000

[KRI] Lead Angle ISO_97:

90.000

[L1]Gage Length Inch:

4.3310

[L1]Gage Length Metric:

110.0000

[L2]Head Length Inch:

1.5750

[L2]Head Length Inch_147:

1.5750

[L2]Head Length Metric:

40.0000

[L2]Head Length Metric_148:

40.0000

[L9MS]Clamping LG Mach Side In:

2.1654

[L9MS]Clamping LG Mach Side mm:

55.0000

[LF]Functional Length Inch:

4.3310

[LF]Functional Length Inch_160:

4.3310

[LF]Functional Length Metric:

110.0000

[LF]Functional Length Metric_161:

110.0000

[LS] Shank Length Inch:

2.7559

[LS] Shank Length Metric:

70.0000

[LTA]Tool Assembly Length Inch:

2.1656

[LTA]Tool Assembly Length mm:

55.0000

[L] Overall Length Inch:

4.3310

[L] Overall Length Inch_107:

4.3310

[L] Overall Length Metric:

110.0000

[L] Overall Length Metric_108:

110.0000

Manufactured By:

WIDIA
