Part Number: 3953896 / Vendor ID Number: 12061 / Custom:

M1200D125Z04W100HN07

M1200D125Z04W100HN07
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

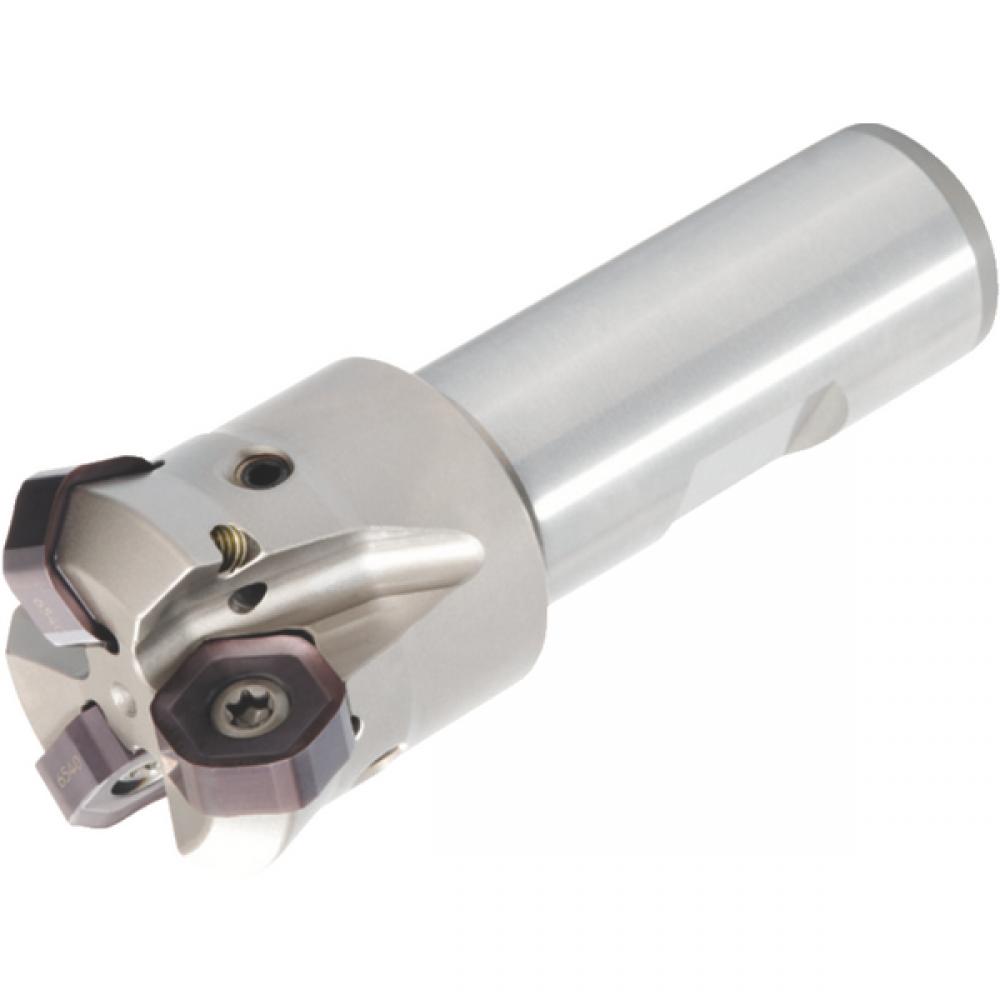

M1200MINI FACE MILL D1.250 Z4

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable Face Mills

Insert Shape:

H-Hexagon 120

Number of Flutes:

4

Adapter Style Machine Side:

Weldon

Adapter Style Machine Side-Marcom Calc:

Weldon Shank

Adapter Type Machine Side:

Cylindrical

ANSI Catalog Number:

M1200D125Z04W100HN07

Body Material Group:

Steel

Catalog Gage Insert 1:

HNGJ0704ANENLD

Center Cutting Tool:

No Center Cutting

Clamping Type:

S - Screw Clamping

Coolant Entry Style:

Concentric Axial Coolant

Coolant Exit:

Angular Axial Coolant Exit

Coolant Supply:

Yes

Engineering Tool Family:

M1200 HN0704

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

Insert Shape - Marcom Calc:

Hexagon 120

Insert Shape_228:

H-Hexagon 120

IntFace Catalog Gage Insert 1:

HNGJ0704ANENLD

IntFace Catalog Gage Insert 1_229:

HNGJ0704ANENLD

ISO Catalog Number:

M1200D125Z04W100HN07

MAKTX (SAP Description):

M1200MINI FACE MILL D1.250 Z4

Max RPM:

17700

Milling Type:

E-End Mill

Number of Adjustable Inserts:

0

Number of Ends:

1 - Single Ended End Mill

Number of Flutes_231:

4

Number of Inserts:

4

SAP Material Number:

3953896

[A1]Coolant Hole Dia. Exit In:

0.0870

[A1]Coolant Hole Dia. Exit mm:

2.2100

[AP1MAX]1st Max Cut Depth In:

0.1380

[AP1MAX]1st Max Cut Depth mm:

3.5000

[A]Coolant Hole Dia Inch:

0.1969

[A]Coolant Hole Diameter Metric:

5.0010

[CS1]Coolant Supply Exit Size:

M4X0.7

[CUBMS]Unit of Tool:

IN - Inch

[D1MAX]Maximum Cutting Dia in:

1.5930

[D1MAX]Maximum Cutting Dia mm:

40.4700

[D1]Effective Cutting Dia Frac:

1 1/4

[D1]Effective Cutting Dia In:

1.2500

[D1]Effective Cutting Dia mm:

31.7500

[D2]Body Diameter Max Inch:

1.4820

[D2]Body Diameter Max Metric:

37.6400

[D3]Neck Diameter Inch:

1.2560

[D3]Neck Diameter Metric:

31.9000

[D]Adapter/Shank/Bore Dia Frac:

1

[D]Adapter/Shank/Bore Dia Inch:

1.0000

[D]Adapter/Shank/Bore Dia mm:

25.4000

[GAMMAF] Radial Rake Angle:

-10.700

[GAMMAF] Radial Rake Angle_67:

-10.700

[GAMMAP] Axial Rake Angle:

-7.000

[GAMMAP] Axial Rake Angle_71:

-7.000

[KRA] Lead Angle ANSI:

45.000

[KRA] Lead Angle ANSI_94:

45.000

[KRI] Lead Angle ISO:

45.000

[KRI] Lead Angle ISO_97:

45.000

[L1]Gage Length Inch:

3.7830

[L1]Gage Length Metric:

96.1000

[L2]Head Length Fract:

1 1/2

[L2]Head Length Inch:

1.5000

[L2]Head Length Inch_147:

1.5000

[L2]Head Length Metric:

38.1000

[L2]Head Length Metric_148:

38.1000

[L9MS]Clamping LG Mach Side In:

2.2660

[L9MS]Clamping LG Mach Side mm:

57.5560

[LF]Functional Length Inch:

3.7830

[LF]Functional Length Inch_160:

3.7830

[LF]Functional Length Metric:

96.1000

[LF]Functional Length Metric_161:

96.1000

[LS] Shank Length Inch:

2.2835

[LS] Shank Length Metric:

58.0010

[LTA]Tool Assembly Length Inch:

1.5170

[LTA]Tool Assembly Length mm:

38.5440

[L] Overall Length Inch:

3.7830

[L] Overall Length Inch_107:

3.7830

[L] Overall Length Metric:

96.1000

[L] Overall Length Metric_108:

96.1000

Manufactured By:

WIDIA
