Part Number: 3949893 / Vendor ID Number: 12061 / Custom:

KM50TSWGMEL55M

KM50TSWGMEL55M
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

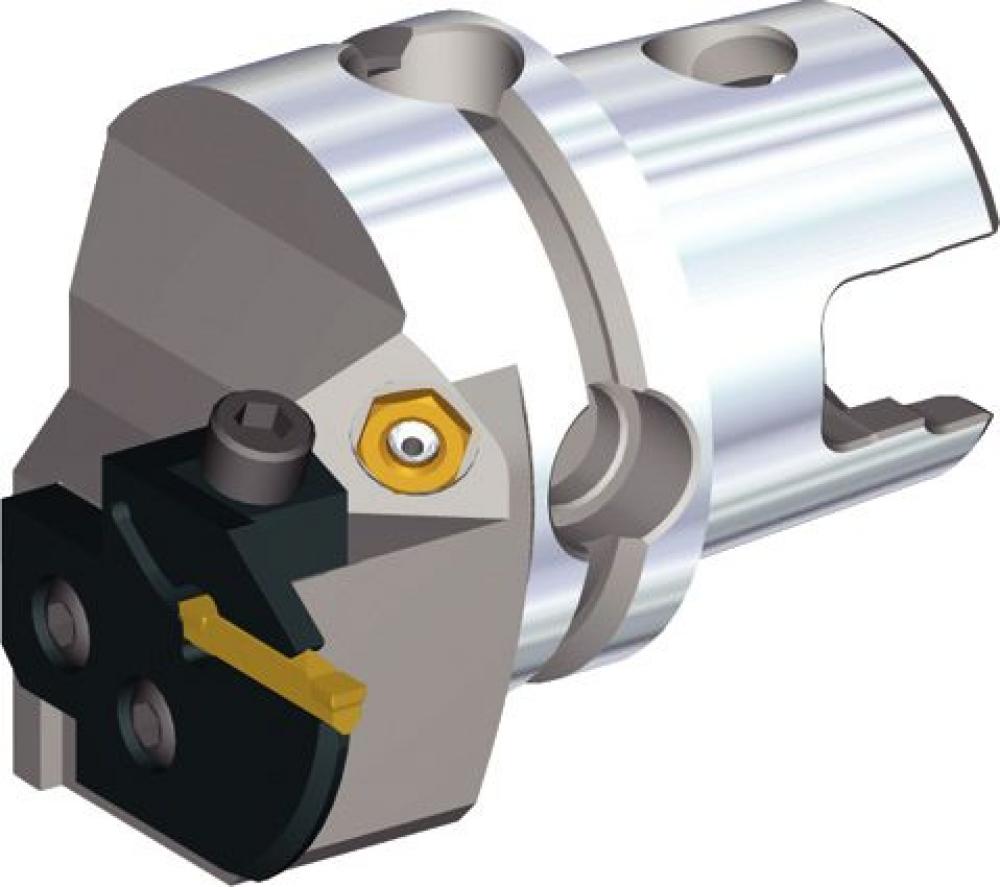

WIDIA KM50TS WGME END MOUNT MODULAR GROO

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Grade:

WG

Adapter Style Machine Side:

KM

Adapter Style Machine Side-Marcom Calc:

KM

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

KMC - Cartridge Mount Kenna

ANSI Catalog Number:

KM50TSWGMEL55M

Blade Screw ID Drive Size:

4 mm

Coolant Entry Style:

Off-center Axial Coolant

Coolant Exit:

Angular Axial w/ Nozzle

Coolant Supply:

Yes

Front End Tool Type:

Cartridge Mount

Hand of Tool:

L - Left

ISO Catalog Number:

KM50TSWGMEL55M

MAKTX (SAP Description):

WIDIA KM50TS WGME END MOUNT MODULAR GROO

SAP Material Number:

3949893

[A]Coolant Hole Dia Inch:

0.3150

[A]Coolant Hole Diameter Metric:

8.0000

[CSMS]System Size Machine Side:

KM50TS

[CUBMS]Unit of Tool:

MM - Metric

[D]Adapter/Shank/Bore Dia Frac:

1.9685

[D]Adapter/Shank/Bore Dia Inch:

1.9685

[D]Adapter/Shank/Bore Dia mm:

50.0000

[FLGT]Flange Length Metric:

18.0000

[F] F Dimension Inch:

-0.1960

[F] F Dimension Inch_55:

-0.1960

[F] F Dimension Metric:

-4.9800

[F] F Dimension Metric_56:

-4.9800

[H1] Centerline Height Inch:

0.0000

[H1] Centerline Height Inch_75:

0.0000

[H1] Centerline Height Metric:

0.0000

[H1] Centerline Height Metric_76:

0.0000

[H3] Head Bottom Offset Inch:

1.1024

[H3] Head Bottom Offset Metric:

28.0000

[L1]Gage Length 1 Inch:

2.1180

[L1]Gage Length 1 Inch_123:

2.1180

[L1]Gage Length 1 Metric:

53.7900

[L1]Gage Length 1 Metric_124:

53.7900

[LF]Functional Length Inch:

2.1180

[LF]Functional Length Inch_158:

2.1180

[LF]Functional Length Metric:

53.7900

[LF]Functional Length Metric_159:

53.7900

[LPR]Protruding Length Inch:

2.1654

[LPR]Protruding Length Inch_166:

2.1654

[LPR]Protruding Length Metric:

55.0000

[LPR]Protruding Length Metric_167:

55.0000

[LS] Shank Length Inch:

1.2579

[LS] Shank Length Metric:

31.9500

[LTA]Tool Assembly Length Inch:

2.1180

[LTA]Tool Assembly Length mm:

53.7900

[L] Overall Length Inch:

3.4230

[L] Overall Length Inch_103:

3.4230

[L] Overall Length Metric:

86.9500

[L] Overall Length Metric_104:

86.9500

Manufactured By:

WIDIA
