Part Number: 3959331 / Vendor ID Number: 12061 / Custom:

KM40TSS25HMWLNR08

KM40TSS25HMWLNR08
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

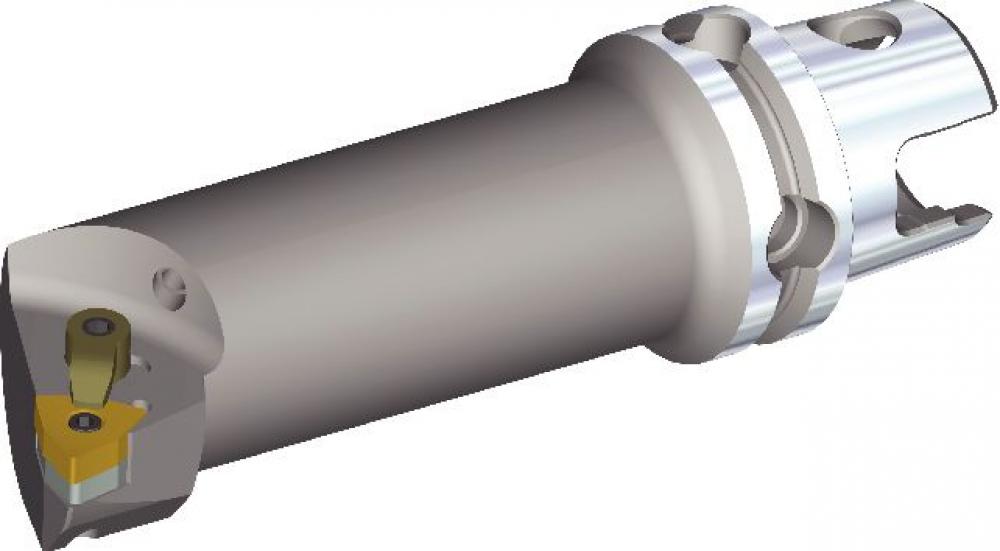

KM40 STEEL BOR BAR 95° KENLOC WN..08 RH

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Insert Shape:

W-Trigon 80

Adapter Style Machine Side:

KM

Adapter Type Machine Side:

Taper Shank

ANSI Catalog Number:

KM40TSS25HMWLNR08

Body Material Group:

Steel

Catalog Gage Insert 1:

WN..080408/WN..432

Catalog Gage Insert 1_221:

WN..080408/WN..432

Clamping Type:

M - Top and Hole Clamping

Coolant Entry Style:

Off-center Axial Coolant

Coolant Exit:

Angular Axial w/ Nozzle

Coolant Supply:

Yes

Hand of Tool:

R - Right

Insert Shape - Marcom Calc:

Trigon 80

Insert Shape_228:

W-Trigon 80

ISO Catalog Number:

KM40TSS25HMWLNR08

MAKTX (SAP Description):

KM40 STEEL BOR BAR 95° KENLOC WN..08 RH

Number of Insert Seats:

1

SAP Material Number:

3959331

[A]Coolant Hole Dia Inch:

0.1575

[A]Coolant Hole Diameter Metric:

4.0000

[CS1]Coolant Supply Exit Size:

M4X0.7

[CSMS]System Size Machine Side:

KM40TS

[CUBMS]Unit of Tool:

MM - Metric

[D2]Body Dia 1 Workpce Side In:

0.9843

[D2]Body Dia 1 Workpce Side In_29:

0.9843

[D2]Body Dia 1 Workpce Side mm:

25.0000

[D2]Body Dia 1 Workpce Side mm_30:

25.0000

[DMIN]Min BoreDia_Ax GrvDia In:

1.2598

[DMIN]Min BoreDia_Ax GrvDia In_49:

1.2598

[DMIN]Min BoreDia_Ax GrvDia mm:

32.0000

[DMIN]Min BoreDia_Ax GrvDia mm_50:

32.0000

[D]Adapter/Shank/Bore Dia Frac:

1.5748

[D]Adapter/Shank/Bore Dia Inch:

1.5748

[D]Adapter/Shank/Bore Dia mm:

40.0000

[F] F Dimension Inch:

0.6693

[F] F Dimension Inch_57:

0.6693

[F] F Dimension Metric:

17.0000

[F] F Dimension Metric_58:

17.0000

[GAMMAF] Radial Rake Angle:

-12.000 deg

[GAMMAF] Radial Rake Angle_68:

-12.000 deg

[GAMMAP] Axial Rake Angle:

-5.000

[GAMMAP] Axial Rake Angle_72:

-5.000

[H1] Cutting Height Inch:

0.00000

[H1] Cutting Height Inch_79:

0.00000

[H1] Cutting Height Metric:

0.0000

[H1] Cutting Height Metric_80:

0.0000

[KRA] Lead Angle ANSI:

-5.000

[KRA] Lead Angle ANSI_95:

-5.000

[KRI] Lead Angle ISO:

95.000

[KRI] Lead Angle ISO_98:

95.000

[L10] Cutting Edge Length Inch:

0.3420

[L10] Cutting Edge Length Inch_139:

0.3420

[L10] Cutting Edge Length mm:

8.6870

[L10] Cutting Edge Length mm_140:

8.6870

[L1] Tool Length Inch:

3.9370

[L1] Tool Length Inch_135:

3.9370

[L1] Tool Length Metric:

100.0000

[L1] Tool Length Metric_136:

100.0000

[L4]Maximum Boring Depth Inch:

2.9543

[L4]Maximum Boring Depth mm:

75.0400

[LPR]Protruding Length Inch:

3.9370

[LPR]Protruding Length Inch_168:

3.9370

[LPR]Protruding Length Metric:

100.0000

[LPR]Protruding Length Metric_169:

100.0000

[LS] Shank Length Inch:

0.9823

[LS] Shank Length Metric:

24.9500

[L]Tool Overall Length Inch:

4.9193

[L]Tool Overall Length Inch_121:

4.9193

[L]Tool Overall Length mm:

124.9500

[L]Tool Overall Length mm_122:

124.9500

Manufactured By:

WIDIA
