Part Number: 3951833 / Vendor ID Number: 12061 / Custom:

KM40TSCS16036M

KM40TSCS16036M
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

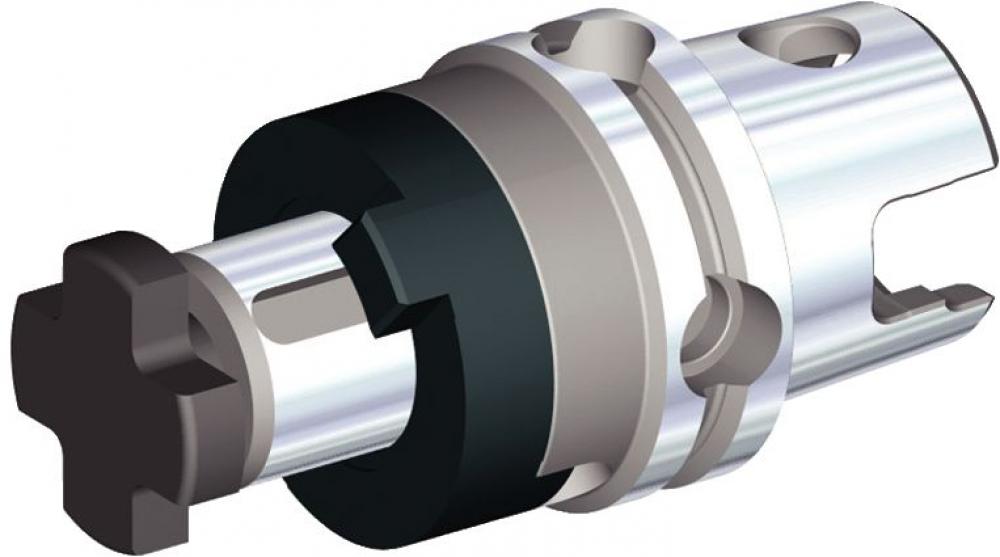

KM40TS COMBI SHELL MILL ADAPTER Ø16X36MM

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Adapter Style Machine Side:

KM

Adapter Style Machine Side-Marcom Calc:

KM

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

FDA - Milling Cutter Arbor

ANSI Catalog Number:

KM40TSCS16036M

Coolant Entry Style:

Concentric Axial Coolant

Coolant Exit:

Concentric Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

Combi Shell Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

KM40TSCS16036M

MAKTX (SAP Description):

KM40TS COMBI SHELL MILL ADAPTER Ø16X36MM

SAP Material Number:

3951833

[A]Coolant Hole Dia Inch:

0.1575

[A]Coolant Hole Diameter Metric:

4.0000

[CSMS]System Size Machine Side:

KM40TS

[CUBMS]Unit of Tool:

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS In:

0.6300

[D1]Adapt/Shank/BoreDiaWKPS In_12:

0.6300

[D1]Adapt/Shank/BoreDiaWKPS mm:

16.0000

[D1]Adapt/Shank/BoreDiaWKPS mm_13:

16.0000

[D2]Body Dia 1 Workpce Side In:

1.2600

[D2]Body Dia 1 Workpce Side In_25:

1.2600

[D2]Body Dia 1 Workpce Side mm:

32.0000

[D2]Body Dia 1 Workpce Side mm_26:

32.0000

[D]Adapter/Shank/Bore Dia Frac:

1.5748

[D]Adapter/Shank/Bore Dia Inch:

1.5748

[D]Adapter/Shank/Bore Dia mm:

40.0000

[FLGT]Flange Length Metric:

12.0000

[G]CL_CONN_THD_SIZE_WS_INT:

M8

[H1] Centerline Height Inch:

0.0000

[H1] Centerline Height Inch_75:

0.0000

[H1] Centerline Height Metric:

0.0000

[H1] Centerline Height Metric_76:

0.0000

[L13] Pilot Length Inch:

1.0630

[L13] Pilot Length Metric:

27.0000

[L1S] Secondary Tool Length In:

1.0276

[L1S] Secondary Tool Length mm:

26.1000

[L1]Gage Length 1 Inch:

1.4170

[L1]Gage Length 1 Inch_123:

1.4170

[L1]Gage Length 1 Metric:

36.0000

[L1]Gage Length 1 Metric_124:

36.0000

[L2]Usable Length Inch:

0.5551

[L2]Usable Length Metric:

14.1000

[L4] Flange-Front End Dist In:

1.6180

[L4] Flange-Front End Dist mm:

41.1000

[LF]Functional Length Inch:

1.4170

[LF]Functional Length Inch_158:

1.4170

[LF]Functional Length Metric:

36.0000

[LF]Functional Length Metric_159:

36.0000

[LS] Shank Length Inch:

0.9823

[LS] Shank Length Metric:

24.9500

[LTA]Tool Assembly Length Inch:

1.4170

[LTA]Tool Assembly Length mm:

36.0000

[L] Overall Length Inch:

3.0730

[L] Overall Length Inch_103:

3.0730

[L] Overall Length Metric:

78.0500

[L] Overall Length Metric_104:

78.0500

Manufactured By:

WIDIA
