Part Number: 4033754 / Vendor ID Number: 12061 / Custom:

GT405006

GT405006
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

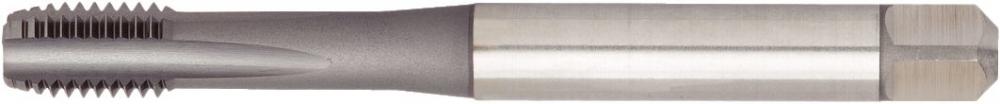

M12X1,75 6HX 376 4FL SB ST HSSE-PM TiCN

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Threading

Subcategory:

Taps

Subtype:

Tap

Grade:

WU32MG

Number of Flutes:

4

Primary Workpiece Material:

Cast Iron

Adapter Style Machine Side:

Cylindrical with Drive Square

Adapter Type Machine Side:

Cylindrical

ANSI Catalog Number:

GT405006

Coolant Supply:

No

Cutting Tool Material:

HSS-E-PM

Dimension Standard:

DIN 376

Engineering Tool Family:

GT40

Hand of Tool:

R - Right

Helix Hand:

N - Neutral/Straight Flute

ISO Catalog Number:

GT405006

MAKTX (SAP Description):

M12X1,75 6HX 376 4FL SB ST HSSE-PM TiCN

Number of Teeth Chamfer:

2 - 3

Plug Style:

Semi Bottom 2-3 Pitch Form C

Product Thread Tol Class ISO:

6HX

SAP Material Number:

4033754

Tap Application:

2 - Blind Hole

Tap Design:

S - HSS

Tap Type - Marcom Calc:

Straight Flute Tap

Thread Pitch Style:

Metric

Type of Thread:

METRIC

Workpiece Material Facets - Secondary:

Non-Ferrous Materials

[CUBMS]Unit of Tool:

MM - Metric

[D1-TDZ]Thread Dia Size:

M12 X 1,75

[D1]Thread Dia Inch:

0.4724

[D1]Thread Dia Metric:

12.0000

[D]Adapter/Shank/Bore Dia Inch:

0.3543

[D]Adapter/Shank/Bore Dia mm:

9.0000

[L2]Useable Length Inch:

1.7300

[L2]Useable Length Metric:

44.0000

[L3]Thread Length Inch:

0.7100

[L3]Thread Length Metric:

18.0000

[L5]Length of Square Inch:

0.3900

[L5]Length of Square Metric:

10.0000

[LN]Neck Length Inch:

1.0236

[LN]Neck Length Metric:

26.0000

[L]Overall Length Inch:

4.3300

[L]Overall Length Metric:

110.0000

[S10]Square Size Inch:

0.2760

[S10]Square Size Metric:

7.0000

[TP]Thread Pitch Metric:

1.7500

Manufactured By:

WIDIA
