Part Number: 3955058 / Vendor ID Number: 12061 / Custom:

GT215011

GT215011
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

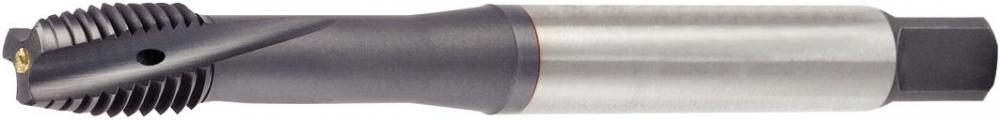

M12X1,75 6HX 376 3FL PLG SF HSSE-PM TiCN

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Threading

Subcategory:

Taps

Subtype:

Tap

Coating:

TiCN

Grade:

WU32MG

Number of Flutes:

3

Adapter Type Machine Side:

Cylindrical

ANSI Catalog Number:

GT215011

Coolant Supply:

Yes

Cutting Tool Material:

HSS-E-PM

Dimension Standard:

DIN 376

Dimension Standard_226:

DIN 376

Engineering Tool Family:

GT21

Hand of Tool:

R - Right

Helix Hand:

L - Left Hand Helix/Flute

ISO Catalog Number:

GT215011

MAKTX (SAP Description):

M12X1,75 6HX 376 3FL PLG SF HSSE-PM TiCN

Number of Flutes_233:

3

Number of Teeth Chamfer:

5

Plug Style:

Plug Chf 3-5.5 Pitch Form D

Product Thread Tol Class ISO:

6HX

SAP Material Number:

3955058

Tap Application:

1 - Through Hole

Tap Design:

S - HSS

Tap Type - Marcom Calc:

Spiral Flute Tap

Thread Pitch Style:

Metric

Type of Thread:

METRIC

Type of Thread_240:

METRIC

Workpiece Material Facets - Secondary:

Steel,High-Temp Alloys

[A1]Coolant Hole Dia. Exit In:

0.0630

[A1]Coolant Hole Dia. Exit mm:

1.6000

[A]Coolant Hole Dia Inch:

0.1378

[A]Coolant Hole Diameter Metric:

3.5000

[CUBMS]Unit of Tool:

MM - Metric

[D1-TDZ]Thread Dia Size:

M12 X 1,75

[D1]Thread Dia Inch:

0.4724

[D1]Thread Dia Metric:

12.0000

[D]Adapter/Shank/Bore Dia Inch:

0.3543

[D]Adapter/Shank/Bore Dia mm:

9.0000

[L2]Useable Length Inch:

1.7323

[L2]Useable Length Metric:

44.0000

[L3]Thread Length Inch:

0.7087

[L3]Thread Length Metric:

18.0000

[L5]Length of Square Inch:

0.3900

[L5]Length of Square Metric:

10.0000

[L9MS]Clamping LG Mach Side In:

1.0593

[L9MS]Clamping LG Mach Side mm:

27.0000

[LTA]Tool Assembly Length Inch:

3.2707

[LTA]Tool Assembly Length mm:

83.0000

[L]Overall Length Inch:

4.3307

[L]Overall Length Inch_117:

4.3307

[L]Overall Length Metric:

110.0000

[L]Overall Length Metric_118:

110.0000

[S10]Square Size Inch:

0.2730

[S10]Square Size Inch_180:

0.2730

[S10]Square Size Metric:

6.9250

[S10]Square Size Metric_181:

6.9250

[TP]Thread Pitch Metric:

1.7500

Manufactured By:

WIDIA
