Part Number: 4033723 / Vendor ID Number: 12061 / Custom:

GT205111

GT205111
by WIDIA

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

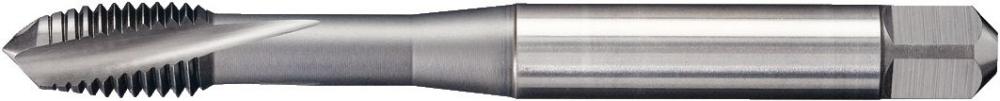

M24X3 6HX 376 5FL PLG SF HSSE-PM TiCN

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Threading

Subcategory:

Taps

Subtype:

Tap

Coating:

TiCN

Grade:

WU32MG

Number of Flutes:

5

Adapter Style Machine Side:

Cylindrical with Drive Square

Adapter Type Machine Side:

Cylindrical

ANSI Catalog Number:

GT205111

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Cutting Tool Material:

HSS-E-PM

Dimension Standard:

DIN 376

Engineering Tool Family:

GT20

Hand of Tool:

R - Right

Helix Hand:

L - Left Hand Helix/Flute

ISO Catalog Number:

GT205111

MAKTX (SAP Description):

M24X3 6HX 376 5FL PLG SF HSSE-PM TiCN

Number of Teeth Chamfer:

3 - 5

Plug Style:

Plug Chf 3-5.5 Pitch Form D

Product Thread Tol Class ISO:

6HX

SAP Material Number:

4033723

Tap Application:

1 - Through Hole

Tap Design:

S - HSS

Tap Type - Marcom Calc:

Spiral Flute Tap

Thread Pitch Style:

Metric

Type of Thread:

METRIC

Workpiece Material Facets - Secondary:

Steel,High-Temp Alloys

[CUBMS]Unit of Tool:

MM - Metric

[D1-TDZ]Thread Dia Size:

M24 X 3

[D1]Thread Dia Inch:

0.9449

[D1]Thread Dia Metric:

24.0000

[D]Adapter/Shank/Bore Dia Inch:

0.7087

[D]Adapter/Shank/Bore Dia mm:

18.0000

[L2]Useable Length Inch:

3.0300

[L2]Useable Length Metric:

77.0000

[L3]Thread Length Inch:

1.1800

[L3]Thread Length Metric:

30.0000

[L5]Length of Square Inch:

0.6700

[L5]Length of Square Metric:

17.0000

[LN]Neck Length Inch:

1.8500

[LN]Neck Length Metric:

47.0000

[L]Overall Length Inch:

6.3000

[L]Overall Length Metric:

160.0000

[S10]Square Size Inch:

0.5670

[S10]Square Size Metric:

14.4100

[TP]Thread Pitch Metric:

3.0000

Manufactured By:

WIDIA
