Techniks 12000-CMS
by Techniks

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

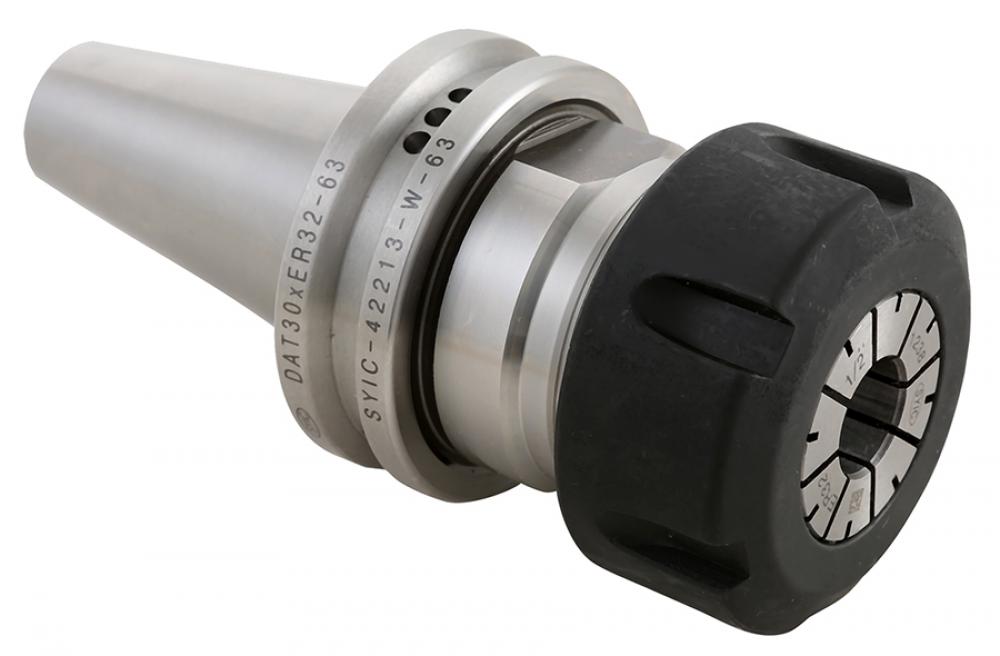

(CMS) ISO 30 x ER 32 - 58 with

ISO30 Collet Chuck x ER32 - 45.2mm projection

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Collet Series:

Shank Size:

Additional options that would change other selections

Info & Guides

Technical Details

Details

Collet Series:

ER32

Shank Size:

46mm

Body Diameter:

46mm

Brand:

Techniks

Capacity Range (in):

0.043" - 0.827"

Capacity Range - Metric:

1.1 - 21mm

Flats:

36mm

Nose Diameter:

32mm

Projection Length:

45.2mm

Taper:

ISO30

Taper Length:

47.8mm

Weight:

Wrench:

04616

Manufactured By:

Techniks
