Item Sales Info
Part Number: 104730 / Vendor ID Number: 10645 / Custom:

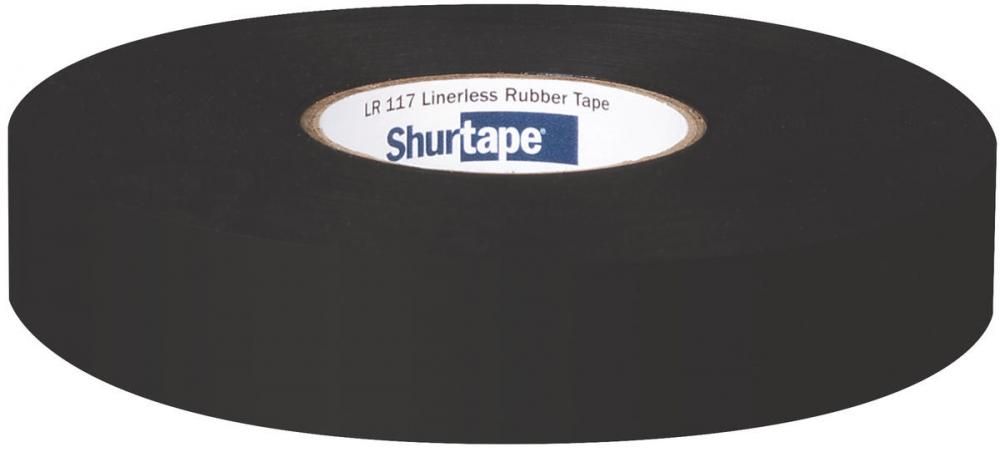

LR 117 Linerless Rubber Electrical Tape - Black - 30 mil - 3/4in x 30ft - 1 Roll

LR 117 Linerless Rubber Electrical Tape - Black - 30 mil - 3/4in x 30ft - 1 Roll
by Shurtape

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
LR 117 Linerless Rubber Electrical Tape - Black - 30 mil - 3/4in x 30ft - 1 Roll
30 mil, all-weather linerless rubber tape that is compatible with all extruded dielectric cable insulations, is rated for insulating splices and terminations in wires and cables up to 69,000 V, and has an emergency overload capacity of 130 C. High voltage LR 117 is a self-bonding, highly conformable and UV-resistant electrical tape that delivers high stretch capabilities to form void-free moisture seals when creating splices.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
30 mil linerless EPR tape
All-weather performance
Ethylene propylene backing
High elongation (stretch)
High voltage
Highly conformable
Physical and chemical properties unaffected by the amount of stretch applied
Resistant to moisture, corrosion, chemicals, corona and ozone
Self-bonding
UV-resistant
Info & Guides
PDF
Technical Details
Details
Category:
Adhesives, Sealants and Tape
Subcategory:
Tapes
Subtype:
Electrical Tapes
Backing Material:
Ethylene propylene
Adhesive:
Rubber-based adhesive
Brand Name:
Shurtape
Core Size:
1.5"
Elongation:
760%
Feature 1:
30 mil linerless EPR tape
Feature 10:
UV-resistant
Feature 2:
All-weather performance
Feature 3:
Ethylene propylene backing
Feature 4:
High elongation (stretch)
Feature 5:
High voltage
Feature 6:
Highly conformable
Feature 7:
Physical and chemical properties unaffected by the amount of stretch applied
Feature 8:
Resistant to moisture, corrosion, chemicals, corona and ozone
Feature 9:
Self-bonding
Included Products/Items:
1 roll of tape
Item Quantity:
1
Package Height (inches):
0.75
Package Length (inches):
3.14
Package Weight (lbs):
0.344
Package Width (inches):
3.14
Roll/Item Weight (lbs):
0.344
Standards:
ASTM-D-4325, ASTM-D-4388, ASTM-D-570
Tape Length (feet):
30
Tape Width (inches):
3/4
Tensile (Breaking Strength):
400 psi
Thickness:
30.0 mils
Typical Applications:
Also for jacketing for applications greater than 69,000 V
Typical Applications-2:
Also used for insulating and protecting bus bars up to 35,000 V
Typical Applications-3:
Can be used to seal electrical splices from moisture
Typical Applications-4:
Compatible with all extruded dielectric cable insulations
Typical Applications-5:
For indoor and outdoor use
Typical Applications-6:
For insulating splices and terminations up to 69,000 V
Video:
Product Video
Manufactured By:
Shurtape
