Part Number: 941157NP / Vendor ID Number: 1174981 / Custom:
MIDLAND INDUSTRIES 94115 FIP 600 psi WOG Pressure -40 to 365 deg F Forged Brass Body Nickel-Plated B

MIDLAND INDUSTRIES 94115 FIP 600 psi WOG Pressure -40 to 365 deg F Forged Brass Body Nickel-Plated B
by Midland Industries

Qty
Product Overview

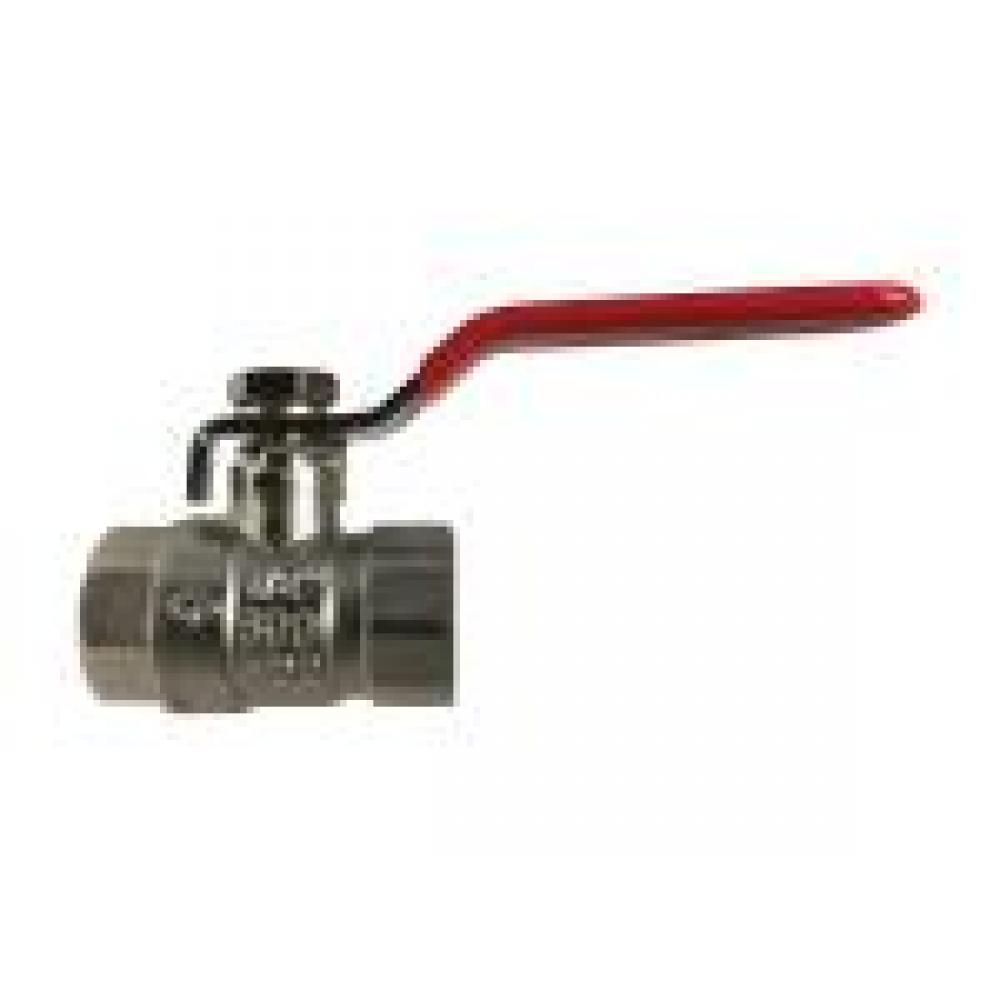

MIDLAND INDUSTRIES 941157NP Ball Valve, 1-1/2 in Nominal, FIP x FIP, 600 psi WOG Pressure, -40 to 365 deg F
MIDLAND INDUSTRIES Ball Valve, 1-1/2 in Nominal, Connection Type: FIP x FIP, Full Port, 600 psi WOG, 3.44 in L Inlet to Outlet, 2.66 in Top to Inlet Center, Handle Operator, Forged Brass Body, PTFE Seat, Nickel-Plated Brass Stem, Plated Steel Handle Nut and Lock Washer Trim, PTFE Packing, Steel Handle, Chromium-Plated Brass Ball, Nickel-Plated, -40 to 365 deg F, 7.343 in OAL x 3.909 in H, Import, Additional Information: 150 psi WSP Service Pressure, 1-1/2-11-1/2 Thread Size, 29.92 inHg Vacuum Services, 1.910 lb Weight
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
Category:
Pneumatics
Subcategory:
Air and Pneumatic Valves
Subtype:
Filtered Ball Valves
Additional Information:
150 psi WSP Service Pressure, 1-1/2-11-1/2 Thread Size, 29.92 inHg Vacuum Services, 1.910 lb Weight
Ball Material:
Chromium-Plated Brass
Body Material:
Forged Brass
BRAND NAME:
MIDLAND INDUSTRIES
Connection Type:
FIP x FIP
Dimensions:
7.343 in OAL x 3.909 in H
Domestic/Import:
Import
Finish:
Nickel-Plated
Handle Material:
Steel
Inlet to Outlet Length:
3.44in
INVOICE DESC:
VALVE BALL 1-1/2IN FIP X FIP 600 PSI WOG
MOBILE DESC:
MIDLAND INDUSTRIES, Ball Valve, 941157NP, 1-1/2in Nominal, -40 to 365deg F
Nominal Size:
1-1/2in
Operator Type:
Handle
Packing Material:
PTFE
Port Type:
Full
Pressure Rating:
600 psi WOG
PRODUCT CODE:
941151NP
Seat Material:
PTFE
STANDARD APPROVALS:
ANSI B1.20.1
Stem Material:
Nickel-Plated Brass
Temperature Rating:
-40 to 365deg F
Top to Inlet Center:
2.66in
Trim Material:
Plated Steel Handle Nut and Lock Washer
VOLUME:
78.842cu-in
Manufactured By:
Midland Industries
