Part Number: 10481 / Vendor ID Number: 1174981 / Custom:

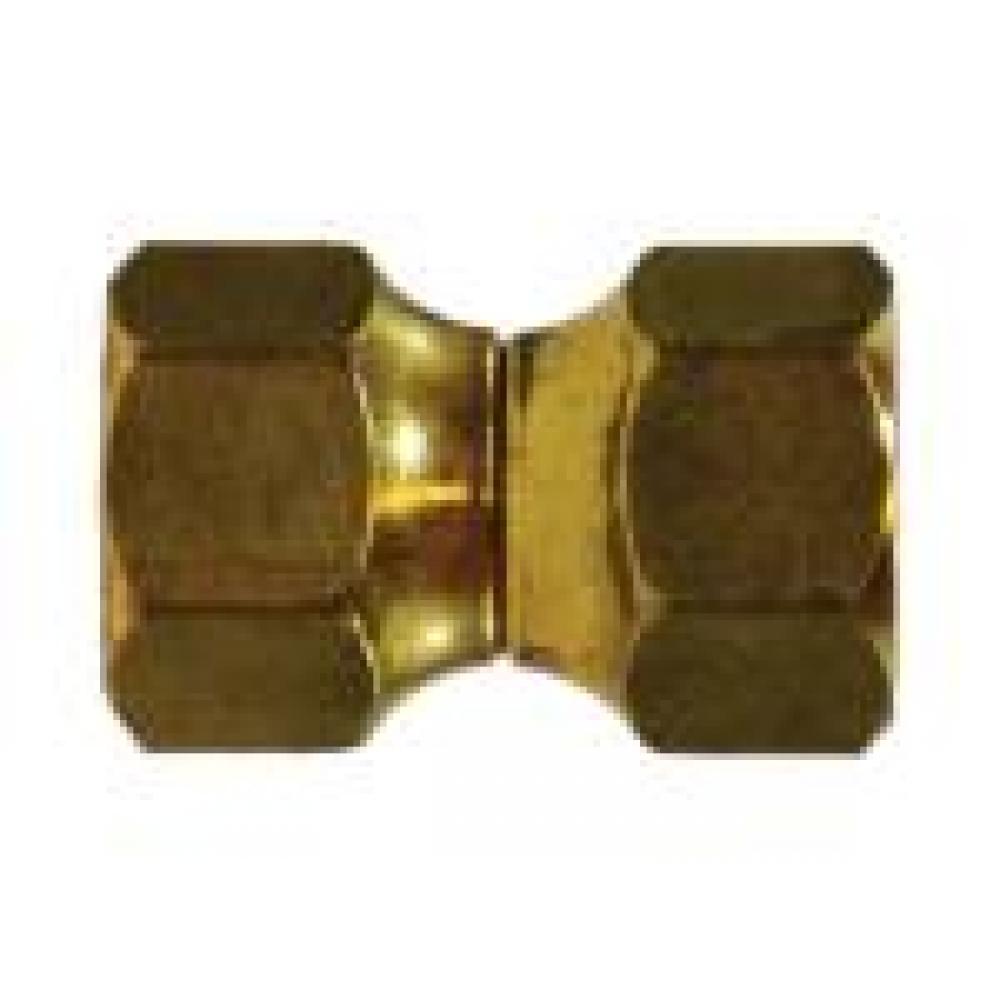

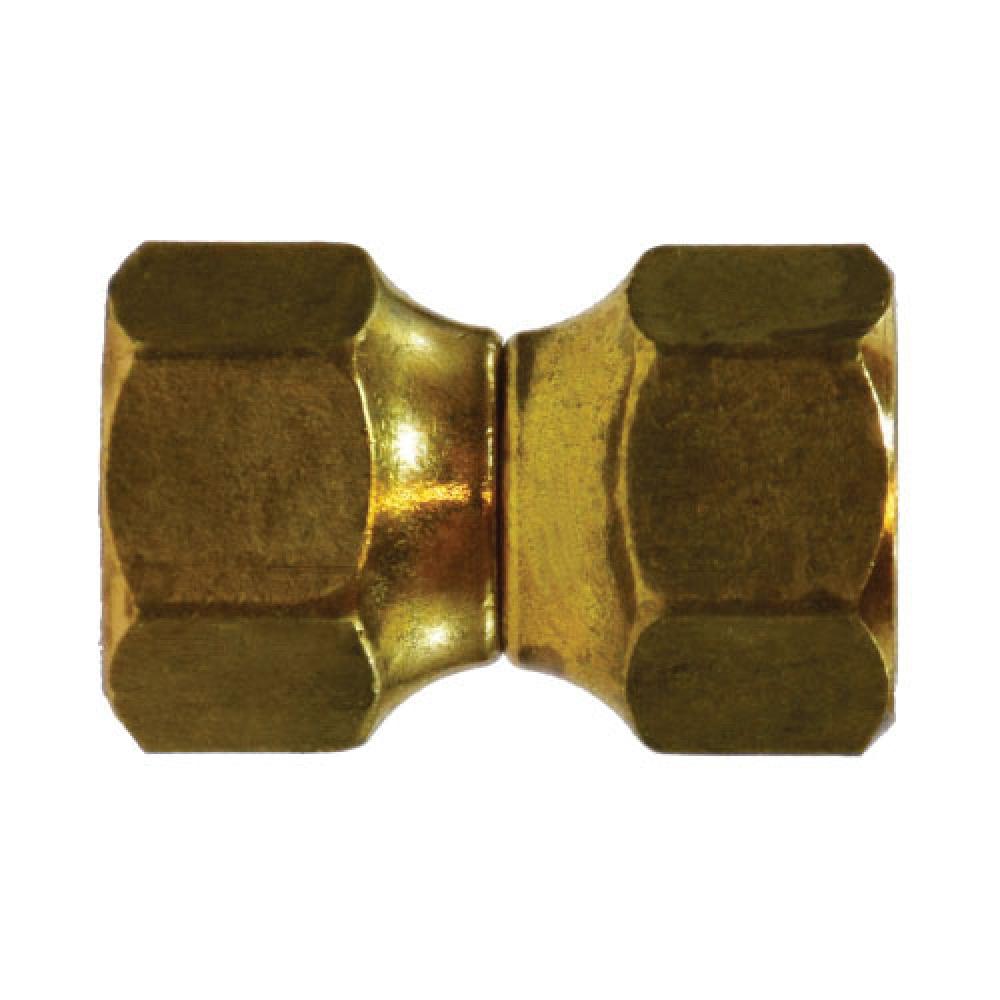

MIDLAND INDUSTRIES 104 SAE 45 deg Female Flared SAE 45 deg Female Flared Brass Swivel Union

MIDLAND INDUSTRIES 104 SAE 45 deg Female Flared SAE 45 deg Female Flared Brass Swivel Union
by Midland Industries

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
MIDLAND INDUSTRIES 10481 Swivel Union, 1/4 in SAE 45 deg Female Flared x 1/4 in SAE 45 deg Female Flared, Brass
MIDLAND INDUSTRIES Swivel Union, Connection Size 1: 1/4 in, Connection Type 1: SAE 45 deg Female Flared, Connection Size 2: 1/4 in, Connection Type 2: SAE 45 deg Female Flared, Forged Brass, 7/16-20 Thread, 0.62 in Hex, For Use With: Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared, 1.18 in L, 1400 psi, -65 to 250 deg F, Additional Information: 0.03 in Tube Wall Thickness, 0.04 lb Weight
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
PDF
Technical Details
Details
Category:
Pneumatics
Subcategory:
Tube Fittings
Subtype:
Metal Flared Tube Fittings
Material:
Brass
Thread Size:
7/16-20
Additional Information:
0.03 in Tube Wall Thickness, 0.04 lb Weight
APPLICATION:
For LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems
BRAND NAME:
MIDLAND INDUSTRIES
COMPONENT PRODUCT INDICATOR:
Yes
Connection Size 1:
1/4in
Connection Size 2:
1/4in
Connection Type:
Female SAE Flared|Female SAE Flared
Connection Type 1:
SAE 45 deg Female Flared
Connection Type 2:
SAE 45 deg Female Flared
Dimensions:
1.18 in L
Fitting Type:
Union
For Use With:
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Hex Size:
0.62in
INVOICE DESC:
UNION SWVL 1/4IN SAE 45 DEG FFL 1/4IN
Material Construction:
Forged Brass
MOBILE DESC:
MIDLAND INDUSTRIES, Swivel Union, 10481, 1/4in, SAE 45deg Female Flared
Pressure Rating:
1400psi
PRODUCT CODE:
10481
STANDARD APPROVALS:
ASA|ASME|MS (Military Standards)|SAE
Temperature Rating:
-65 to 250deg F
VOLUME:
0.846cu-in
WARRANTY:
1 Year
Manufactured By:
Midland Industries
