Part Number: 10109L / Vendor ID Number: 1174981 / Custom:

MIDLAND INDUSTRIES 101 SAE 45 deg Male Flared SAE 45 deg Male Flared Brass Light Pattern Union

MIDLAND INDUSTRIES 101 SAE 45 deg Male Flared SAE 45 deg Male Flared Brass Light Pattern Union
by Midland Industries

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

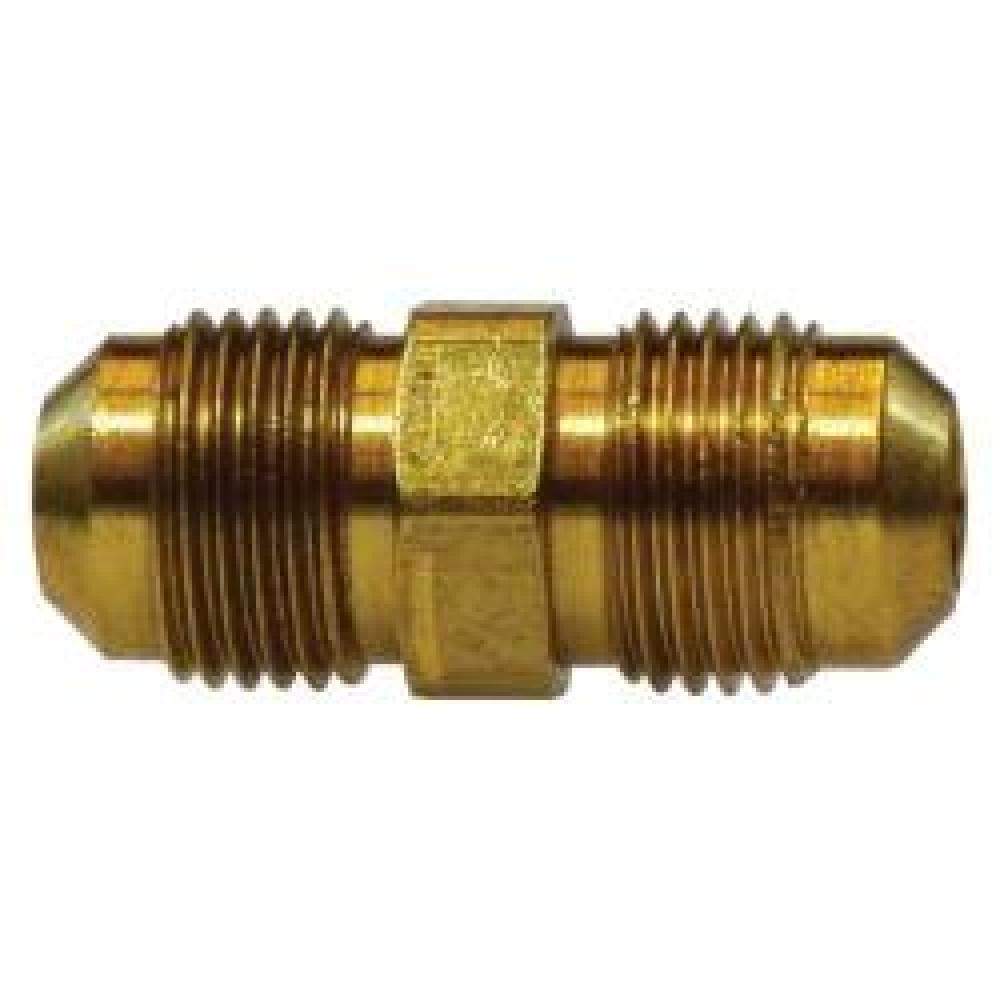

MIDLAND INDUSTRIES 10109L Light Pattern Union, 1/2 in SAE 45 deg Male Flare x 1/2 in SAE 45 deg Male Flare, Brass

MIDLAND INDUSTRIES Light Pattern Union, Connection Size 1: 1/2 in, Connection Type 1: SAE 45 deg Male Flare, Connection Size 2: 1/2 in, Connection Type 2: SAE 45 deg Male Flare, Brass, 3/4-16 Thread, 3/4 in Hex, For Use With: Copper, Brass, Aluminum, Steel Hydraulic Tubing, 1.67 in L, 750 psi, -65 to 250 deg F, Additional Information: 0.032 in Tube Wall, 0.118 lb Weight

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Info & Guides

PDF

Technical Details

Details

Category:

Pneumatics

Subcategory:

Tube Fittings

Subtype:

Metal Flared Tube Fittings

Material:

Brass

Thread Size:

3/4-16

Additional Information:

0.032 in Tube Wall, 0.118 lb Weight

APPLICATION:

For LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems, plumbing and light industrial applications

BRAND NAME:

MIDLAND INDUSTRIES

COMPONENT PRODUCT INDICATOR:

Yes

Connection Size 1:

1/2in

Connection Size 2:

1/2in

Connection Type:

Male SAE Flared|Male SAE Flared

Connection Type 1:

SAE 45 deg Male Flared

Connection Type 2:

SAE 45 deg Male Flared

Dimensions:

1.67 in L

Fitting Type:

Union

For Use With:

Copper, Brass, Aluminum, Steel Hydraulic Tubing

Hex Size:

3/4in

INVOICE DESC:

UNION PAIT LT 1/2IN BRS 3/4-16

Material Construction:

Brass

MOBILE DESC:

MIDLAND INDUSTRIES, Light Pattern Union, 10109L, 1/2in, SAE 45deg Male Flare

Pressure Rating:

750psi

PRODUCT CODE:

10106L

STANDARD APPROVALS:

ASA|ASME Compliant|CA360|MS (Military standards)|SAE

Temperature Rating:

-65 to 250deg F

VOLUME:

2.539cu-in

Manufactured By:

Midland Industries
