Part Number: TKE15141 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TKE15141

KYOCERA Precision Tools TKE15141
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Kyocera VNBR 042002S PR1225 Grade PVD Carbide, Micro Boring Bar
Kyocera VNBR 042002S PR1225 Grade, Right-Hand, Micro Bar with a 4.00mm Minimum Bore Diameter for (P) Steel and (M) Stainless Steel Boring Applications
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Primary Workpiece Material:
Coating Process:
Additional options that would change other selections
Material:
Additional options that would change other selections
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Boring
Subtype:
Indexable Cutting Tools
Category Level 4:
Micro Boring Bars
Coating Process:
PVD
Insert Holding Method:
Screw
Material:
Carbide
Primary Workpiece Material:
(P) Steel
Additional Manufacturer Part Number:
8867687
ANSI Part Number:
VNBR042002SPR1225
Application:
Micro Boring
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Swiss IQ Bar for micro boring applications
Feature 2:
Minus tolerance corner radius (RE)
Feature 3:
Compatible with SVNR…, SVNSR…, S…SVNR… style holders
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1225
ISO Part Number:
VNBR0420-02S
Material Group / Grade:
PR1225
Min Order Qty:
5
Origin:
JPN
Pack Height:
0.394
Pack Length:
3.071
Pack Width:
2.953
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8867687
Series Description:
Swiss IQ Bar
Series.1:
SWIQ
Shipping Weight:
0.1316
Tool Style:
VNB-S
Unit (inch/mm):
mm
UNSPSC:
23241601
UNSPSC Title:
Boring Tool

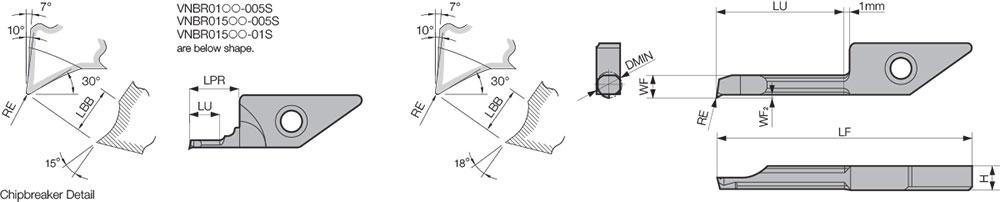

[DMIN] Minimum Bore Diameter (Decimal Inch):
0.1575
[DMIN] Minimum Bore Diameter (mm):
4.00
[H] Shank Height (Decimal Inch):
0.1535
[H] Shank Height (mm):
3.90

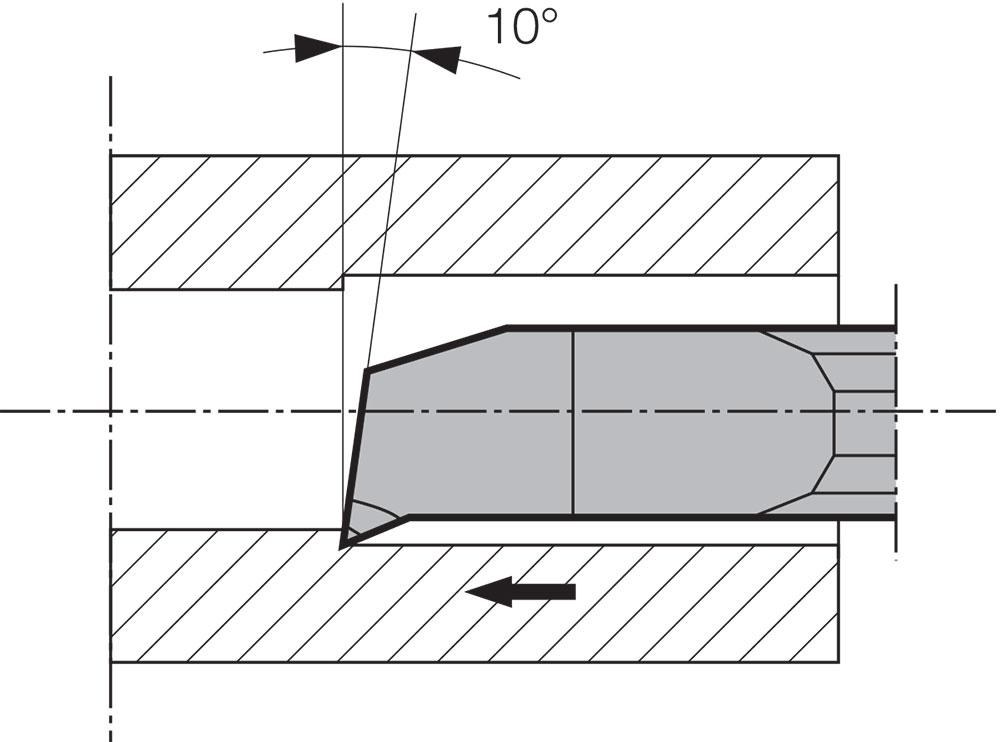

[KAPR] Tool Entering Angle (Degree):
100
[LU] Usable Length (Decimal Inch):
0.7874
[LU] Usable Length (mm):
20.00
[RE] Corner Radius:
0.008"
[RE] Corner Radius (mm):
0.20
Manufactured By:
KYOCERA Precision Tools
