Part Number: TKE10523 / Vendor ID Number: 10831 / Custom:

KYOCERA Precision Tools TKE10523
by KYOCERA Precision Tools

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

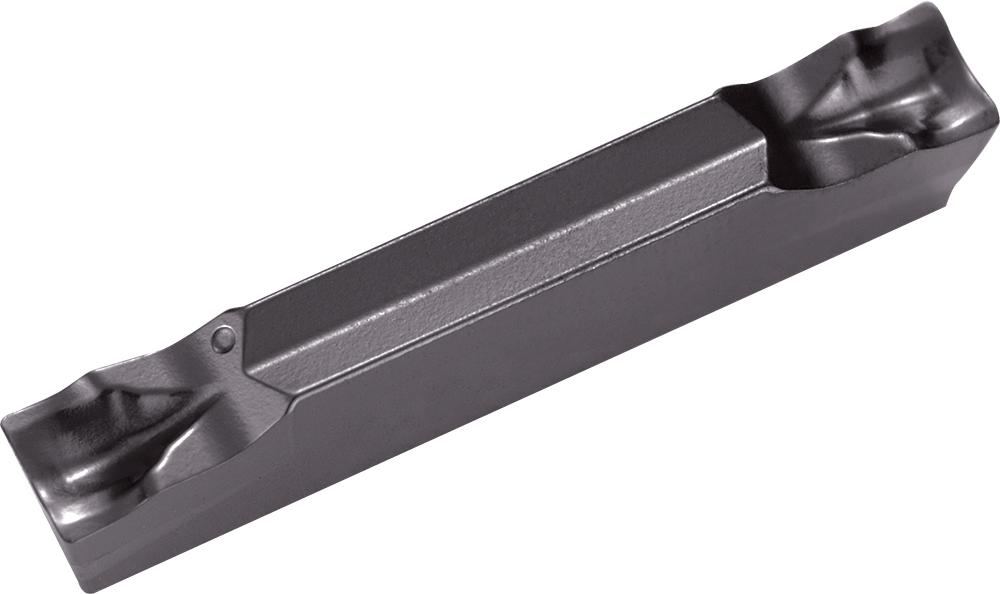

Kyocera GDM 2520N020PM PR1225 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera GDM 2520N020PM PR1225 Grade PVD Carbide, 2.50mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Chipbreaker:

Info & Guides

PDF

Technical Details

Details

Category:

Cutting Tools

Subcategory:

Inserts

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Inserts

Chipbreaker:

Coating Process:

PVD

Insert Holding Method:

Clamp

Material:

Carbide

Number of Cutting Edges:

Primary Workpiece Material:

(P) Steel

Rake:

Positive

Additional Manufacturer Part Number:

8834557

ANSI Part Number:

GDM2520N020PMPR1225

Application:

Cut-Off

California Prop 65 Item:

View

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Medium-Roughing

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Cut-Off

Feature 2:

2-edge

Feature 3:

2 Cutting Edges

Feature 4:

Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate

Feature 5:

Application: Light interrupted to interrupted cutting of stainless steel

Full Radius:

Hand:

Neutral

Harmonized Code:

8209.00.0030

Insert Grade:

PR1225

Insert Size:

2520

ISO Part Number:

GDM2520N-020PM

Material Group / Grade:

PR1225

Min Order Qty:

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8834557

Series Description:

KGD Grooving

Series.1:

KGD

Shipping Weight:

0.0829

Tool Style:

GDM

Unit (inch/mm):

UNSPSC:

23242107

UNSPSC Title:

Insert Carbide

Usage Classification:

Light Interruption

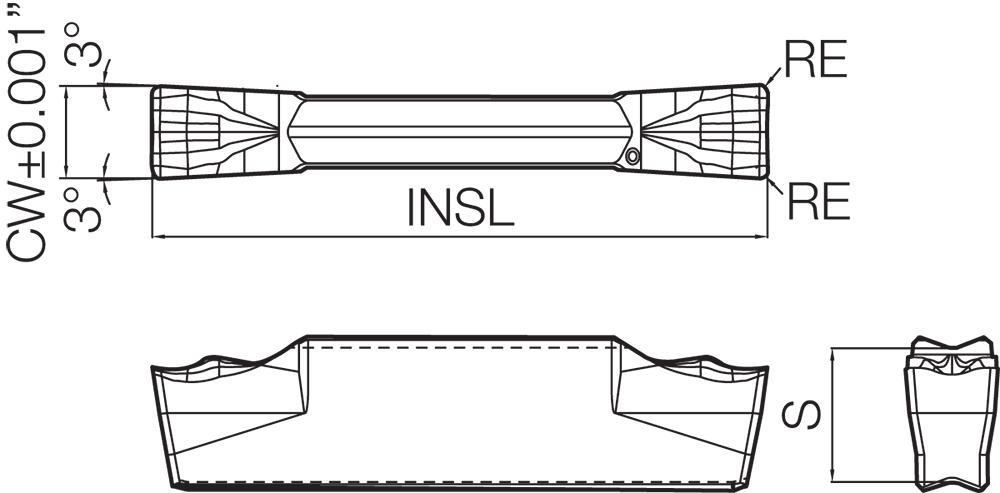

[CWN] Cutting Width Minimum (Decimal Inch):

0.0984

[CWN] Cutting Width Minimum (mm):

2.50

[CWX] Cutting Width Maximum (Decimal Inch):

0.0984

[CWX] Cutting Width Maximum (mm):

2.50

[CW] Cutting Width (Decimal Inch):

0.0984

[CW] Cutting Width (mm):

2.50

[INSL] Insert Length (Decimal Inch):

0.7874

[INSL] Insert Length (mm):

20.00

[RE] Corner Radius:

0.008"

[RE] Corner Radius (mm):

0.20

[S] Thickness:

0.169"

[S] Thickness (mm):

4.30

Manufactured By:

KYOCERA Precision Tools
