Part Number: TJY18890 / Vendor ID Number: 10831 / Custom:
KYOCERA Precision Tools TJY18890

KYOCERA Precision Tools TJY18890
by KYOCERA Precision Tools

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

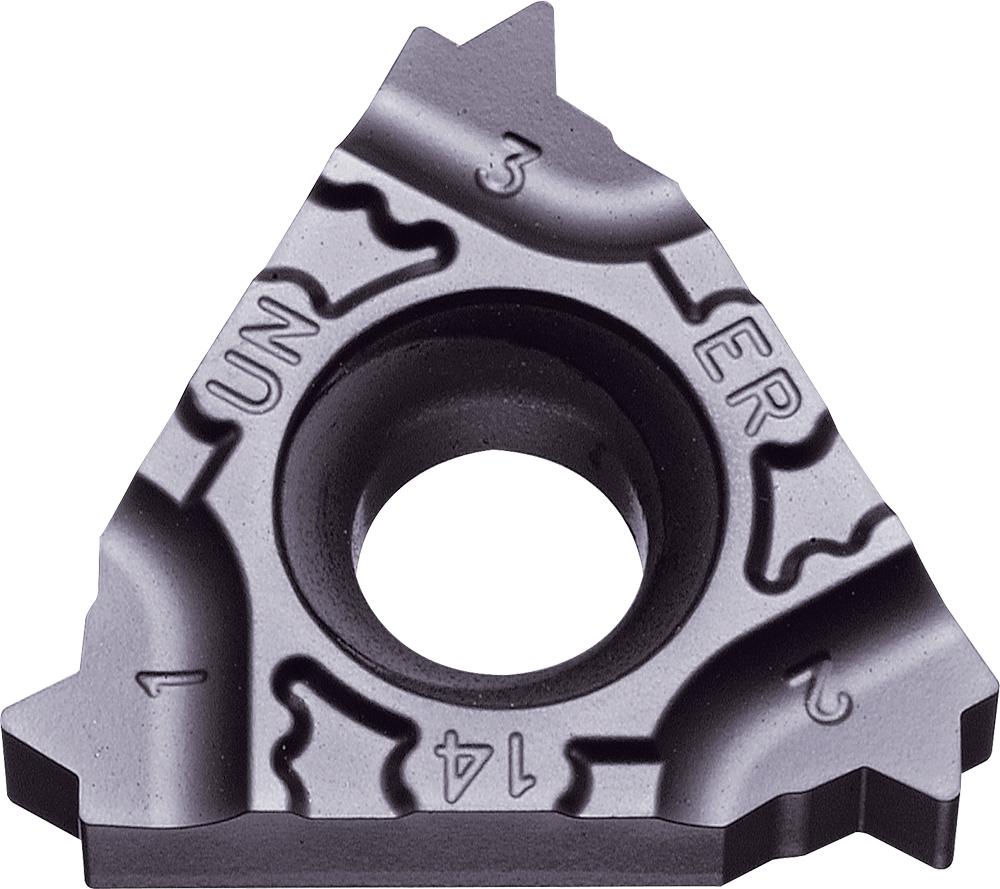

Kyocera 16 ER13UNTF PR1115 Grade PVD Carbide, Indexable Threading Insert
Kyocera 16 ER13UNTF PR1115 Grade PVD Carbide, External, 60 Degree Full Profile, Right-Hand Threading Insert for Unified (UN) Threads
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Thread Standard:
Insert Holding Method:
Additional options that would change other selections
Material:
Additional options that would change other selections
Chipbreaker:
Info & Guides
PDF
Technical Details
Details
Category:
Cutting Tools
Subcategory:
Inserts
Subtype:
Indexable Cutting Tools
Category Level 4:
Threading Inserts
Chipbreaker:
TF
Coating Process:
PVD
Insert Holding Method:
Screw or Clamp
Material:
Carbide
Number of Cutting Edges:
3
Primary Workpiece Material:
(P) Carbon/Alloy Steel|(M) Stainless Steel
Thread Standard:
Unified (UN)
Thread Type:
External
Additional Manufacturer Part Number:
8825173
ANSI Part Number:
16ER13UNTFPR1115
Application:
External Threading
California Prop 65 Item:
View
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Feature 1:
Insert for External Threading with 3 Cutting Edges
Feature 2:
60 Degree Full Profile for Unified (UN) threads
Feature 3:
Hard TiAlN base PVD coated super micro-grain carbide
Feature 4:
Application: Superior anti-oxidation performance with well balanced wear resistance and toughness in steel and stainless steel
Hand:
Right-Hand
Harmonized Code:
8209.00.0030
Insert Grade:
PR1115
Insert Size:
16
ISO Part Number:
16ER13UN-TF
Material Group / Grade:
PR1115
Min Order Qty:
5
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8825173
Series Description:
Lay-down Threading
Series.1:
LDT
Shipping Weight:
0.0773
Thread Pitch (TPI):
UN, UNF: 13
Thread Profile:
60 Degree Full Profile
Tool Style:
16ER
Unit (inch/mm):
inch
UNSPSC:
23291804
UNSPSC Title:
Threading Insert
Usage Classification:
Continuous

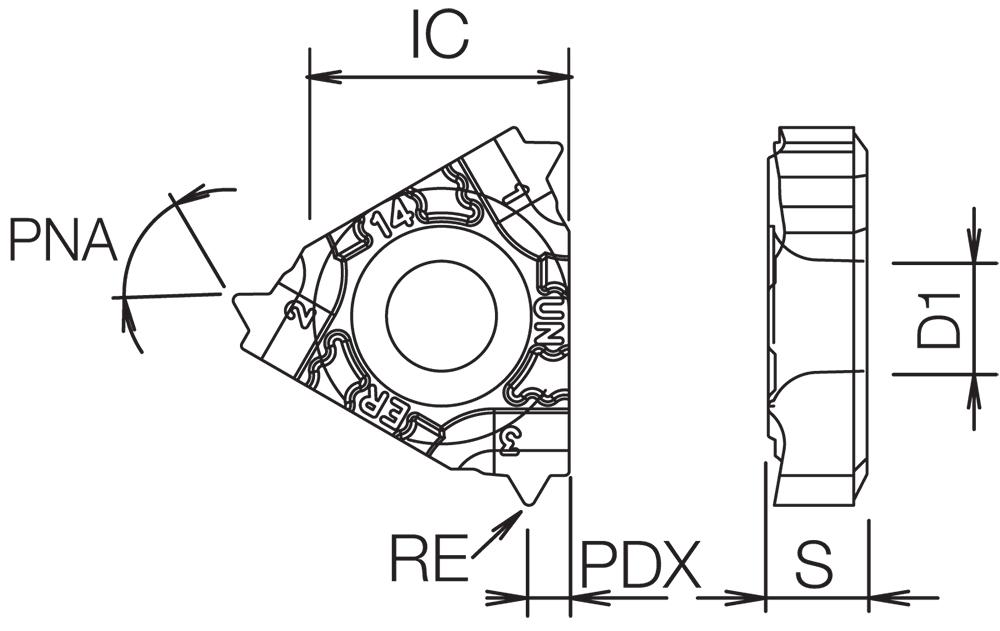

[IC] Inscribed Circle:
3/8"
[IC] Inscribed Circle (mm):
9.525
[RE] Corner Radius:
0.010"
[RE] Corner Radius (mm):
0.25
[S] Thickness:
0.145"
[S] Thickness (mm):
3.68
Manufactured By:
KYOCERA Precision Tools
