Item Sales Info

Part Number: 6929520 / Vendor ID Number: 1128801 / Custom:

KMT-6929520

KMT-6929520
by Kennametal

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

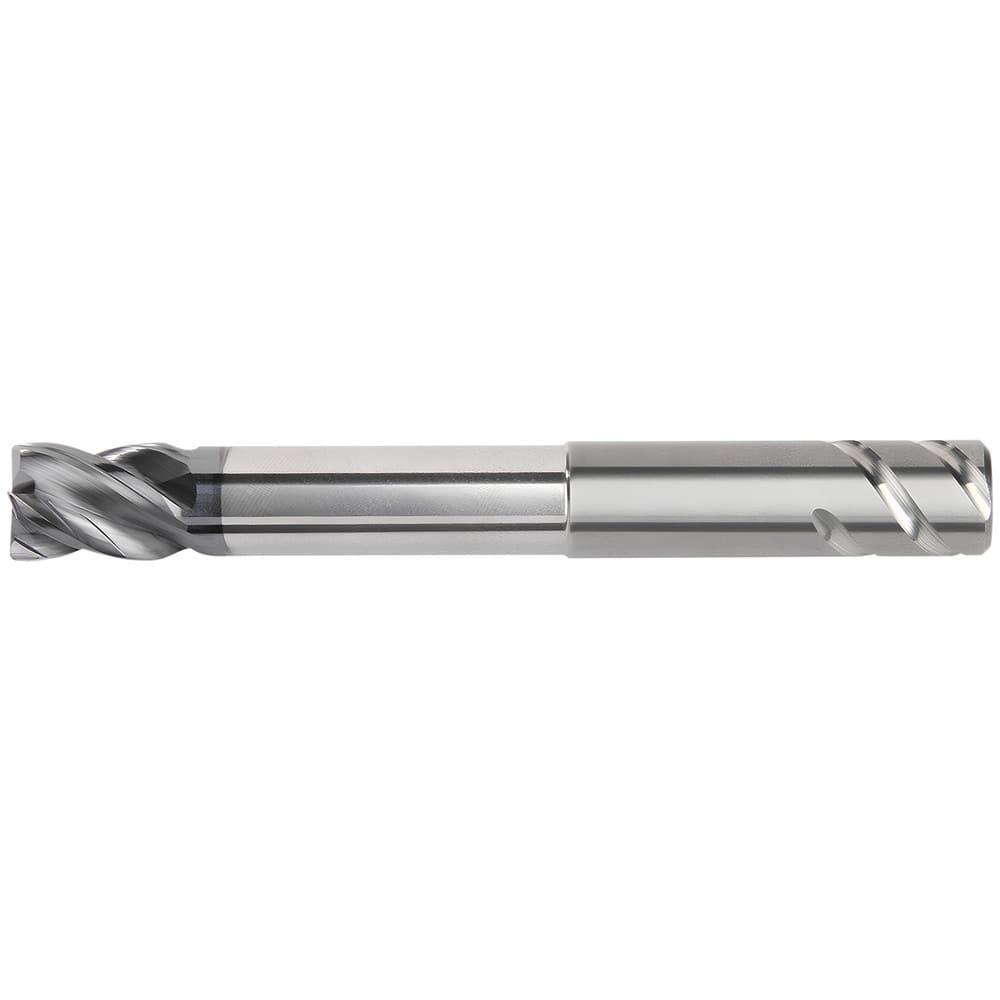

ENDMILL H1TE 4FL 16X16X32-73X125 R1 SL

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Corner Radius and Corner Chamfer End Mills

Center Cutting:

Center Cutting

Coating:

AlTiN

Corner Radius (Decimal Inch):

0.0394

Corner Radius (mm):

1

Finish/Coating:

AlTiN

Grade:

KCSM15

Helix Angle:

36

Neck Diameter (Decimal Inch):

0.5921

Neck Diameter (mm):

15.04

Number of Flutes:

4

Overall Length (Decimal Inch):

4.9213

Overall Length (mm):

125

Primary Workpiece Material:

Steel,Stainless Steel,Cast Iron,High-Temp Alloys,Hardened Materials

Adapter Style Machine Side:

SAFE-LOCK

Adapter Style Machine Side-Marcom Calc:

SAFE-LOCK

Adapter Type Machine Side:

Cylindrical

Body Material Group:

Carbide

Center Cutting Tool:

Center Cutting

Coolant Supply:

No

Corner Style:

Radius

Ctlg Mounting Style Mach Side:

SAFE-LOCK

Cutting Tool Material:

Carbide

End Mill Finish Type:

F-Finisher

Engineering Tool Family:

H1TE

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

ISO Catalog Number:

H1TE4RA1600E032SLR100M

MAR_PLATFORM_KMT:

HARVI I TE

Milling Type:

E-End Mill

Number of Center Cutting Edges:

2

Number of Ends:

1 - Single Ended End Mill

[AP1MAX]1st Max Cut Depth In:

1.2598

[AP1MAX]1st Max Cut Depth mm:

32.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Effective Cutting Dia In:

0.6299

[D1]Effective Cutting Dia mm:

16.0000

[D3]Neck Diameter Inch:

0.5921

[D3]Neck Diameter Metric:

15.0400

[D]Adapter/Shank/Bore Dia Inch:

0.6299

[D]Adapter/Shank/Bore Dia mm:

16.0000

[FHA]Helix Angle:

36.000

[KRA] Lead Angle ANSI:

0.000

[KRI] Lead Angle ISO:

90.000

[L1]Gage Length Inch:

4.9213

[L1]Gage Length Metric:

125.0000

[L3]Maximum Depth End Mill In:

2.8740

[L3]Maximum Depth End Mill mm:

73.0000

[L9MS]Clamping LG Mach Side In:

1.8510

[L9MS]Clamping LG Mach Side mm:

47.0000

[LF]Functional Length Inch:

4.9213

[LF]Functional Length Metric:

125.0000

[LS] Shank Length Inch:

2.0283

[LS] Shank Length Metric:

51.5200

[LTA]Tool Assembly Length Inch:

3.0703

[LTA]Tool Assembly Length mm:

78.0000

[L] Overall Length Inch:

4.9213

[L] Overall Length Metric:

125.0000

[REPSILON]Corner Radius Inch:

0.0394

[REPSILON]Corner Radius Metric:

1.0000

Manufactured By:

Kennametal
