Part Number: 6929462 / Vendor ID Number: 1128801 / Custom:

KMT-6929462

KMT-6929462
by Kennametal

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

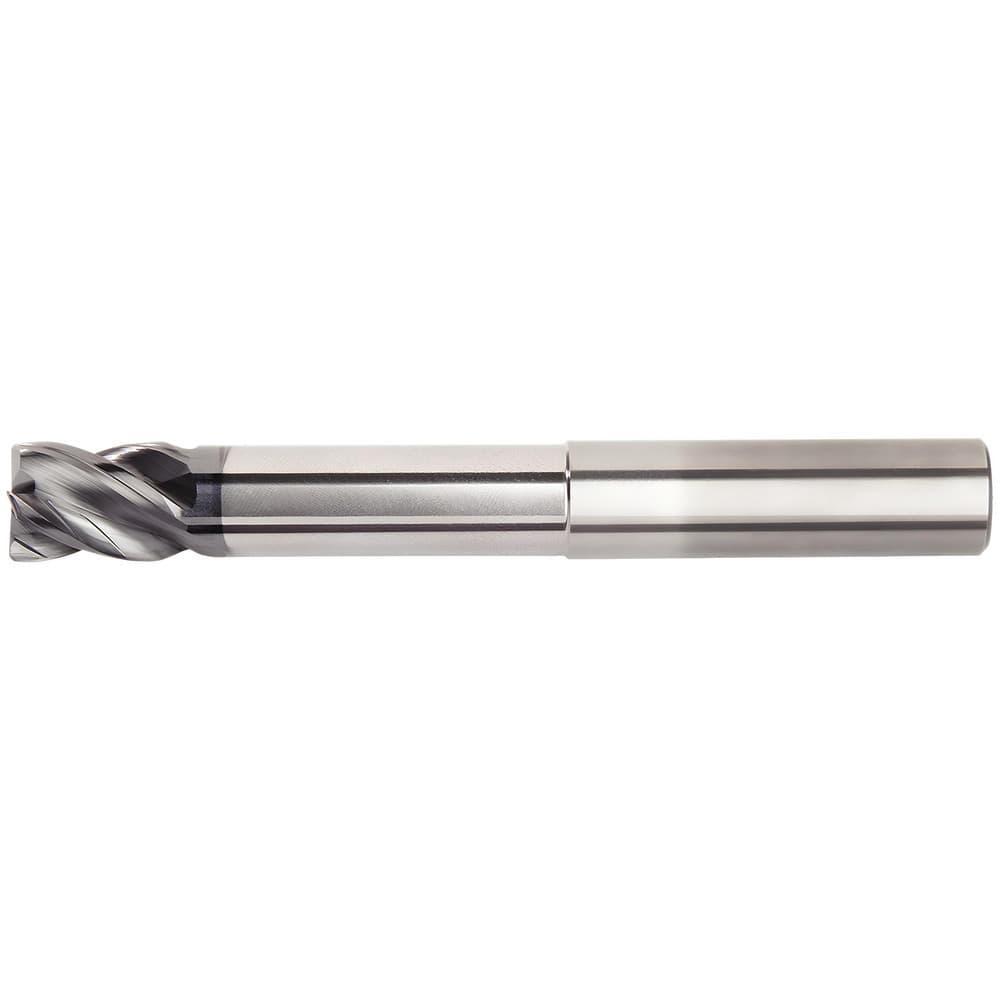

ENDMILL H1TE 4FL 12X12X26-53X100 R2,5

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Milling

Subcategory:

Solid

Subtype:

Corner Radius and Corner Chamfer End Mills

Center Cutting:

Center Cutting

Coating:

AlTiN

Corner Radius (Decimal Inch):

0.0984

Corner Radius (mm):

2.5

Finish/Coating:

AlTiN

Grade:

KCSM15

Helix Angle:

36

Neck Diameter (Decimal Inch):

0.4441

Neck Diameter (mm):

11.28

Number of Flutes:

4

Overall Length (Decimal Inch):

3.937

Overall Length (mm):

100

Primary Workpiece Material:

Steel,Stainless Steel,Cast Iron,High-Temp Alloys,Hardened Materials

Adapter Style Machine Side:

Straight-Cylindrical

Adapter Style Machine Side-Marcom Calc:

Straight Shank

Adapter Type Machine Side:

Cylindrical

Body Material Group:

Carbide

Center Cutting Tool:

Center Cutting

Coolant Supply:

No

Corner Style:

Radius

Ctlg Mounting Style Mach Side:

PLAIN

Cutting Tool Material:

Carbide

End Mill Finish Type:

F-Finisher

Engineering Tool Family:

H1TE

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

ISO Catalog Number:

H1TE4RA1200E026HAR250M

MAR_PLATFORM_KMT:

HARVI I TE

Milling Type:

E-End Mill

Number of Center Cutting Edges:

2

Number of Ends:

1 - Single Ended End Mill

[AP1MAX]1st Max Cut Depth In:

1.0236

[AP1MAX]1st Max Cut Depth mm:

26.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[D1]Effective Cutting Dia In:

0.4724

[D1]Effective Cutting Dia mm:

12.0000

[D3]Neck Diameter Inch:

0.4441

[D3]Neck Diameter Metric:

11.2800

[D]Adapter/Shank/Bore Dia Inch:

0.4724

[D]Adapter/Shank/Bore Dia mm:

12.0000

[FHA]Helix Angle:

36.000

[KRA] Lead Angle ANSI:

0.000

[KRI] Lead Angle ISO:

90.000

[L1]Gage Length Inch:

3.9370

[L1]Gage Length Metric:

100.0000

[L3]Maximum Depth End Mill In:

2.0866

[L3]Maximum Depth End Mill mm:

53.0000

[L9MS]Clamping LG Mach Side In:

1.6535

[L9MS]Clamping LG Mach Side mm:

42.0000

[LF]Functional Length Inch:

3.9370

[LF]Functional Length Metric:

100.0000

[LS] Shank Length Inch:

1.8362

[LS] Shank Length Metric:

46.6400

[LTA]Tool Assembly Length Inch:

2.2835

[LTA]Tool Assembly Length mm:

58.0000

[L] Overall Length Inch:

3.9370

[L] Overall Length Metric:

100.0000

[REPSILON]Corner Radius Inch:

0.0984

[REPSILON]Corner Radius Metric:

2.5000

Manufactured By:

Kennametal
