Product Overview

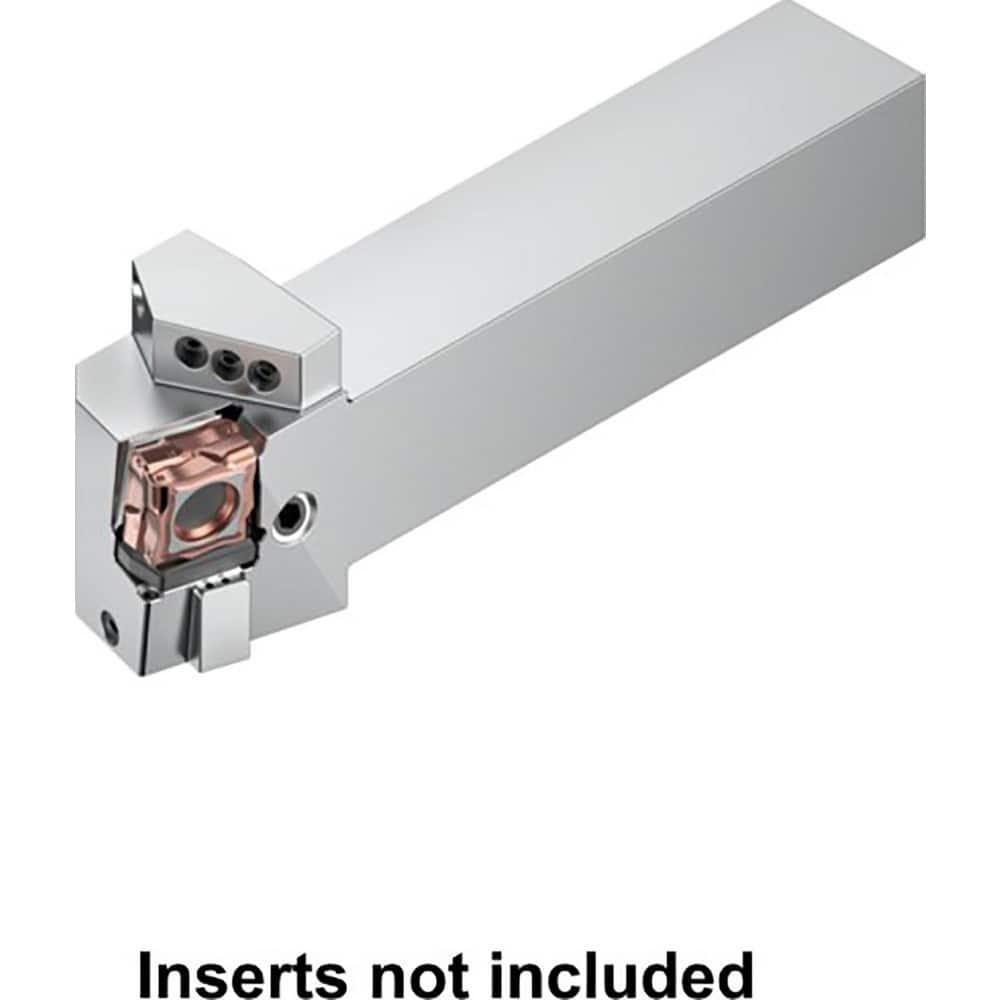

FIX8 Holder W32x170mm Coolant

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Hand of Holder:

R - Right

Head Length (Decimal Inch):

2.5354

Head Length (Inch):

1.5354

Head Length (mm):

39

Insert Shape:

Fix-Perfect 8 Cut Edges

Overall Length (Inch):

6.7913

Overall Length (mm):

172.5

Shank Height (Inch):

1.2598

Shank Height (mm):

32

Shank Length (Inch):

5.2067

Shank Length (mm):

132.25

Shank Width (Decimal Inch):

1.2598

Shank Width (mm):

32

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

Body Material Group:

Steel

Catalog Gage Insert 1:

CNUX191016R

Clamping Type:

P - Hole Clamping

Coolant Supply:

Yes

Hand of Tool:

R - Right

Head Height (mm):

64.4

Insert Shape - Marcom Calc:

Fix-Perfect 8 Cut Edges

ISO Catalog Number:

FIX8PCBNR3232P19C

MAR_PLATFORM_KMT:

FIX8

Number of Insert Seats:

1

[A1]Coolant Hole Dia. Exit In:

0.0472

[A1]Coolant Hole Dia. Exit mm:

1.2000

[A]Coolant Hole Dia Inch:

0.3428

[A]Coolant Hole Diameter Metric:

8.7070

[B3]Head Back Offset G Inch:

0.1969

[B3]Head Back Offset G Metric:

5.0000

[B] Shank Width Inch:

1.2598

[B] Shank Width Metric:

32.0000

[CF]Coolant Size Radial:

G1/8 - 28

[CS1]Coolant Supply Exit Size:

M4 X 0.7

[CS] Coolant Supply Size:

G1/8 - 28

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[FS]Secondary F Dimension Inch:

1.2551

[FS]Secondary F Dimension mm:

31.8790

[F] F Dimension Inch:

1.0728

[F] F Dimension Metric:

27.2500

[GAMMAF] Radial Rake Angle:

-6.500 deg

[GAMMAP] Axial Rake Angle:

-6.000 deg

[H1] Cutting Height Inch:

1.25980

[H1] Cutting Height Metric:

32.0000

[H2] Head Height Inch:

2.5354

[H2] Head Height Metric:

64.4000

[H3]Head Bottom Offset Inch:

0.3150

[H3]Head Bottom Offset Metric:

8.0000

[HBL]Head Bottom Offset Len In:

1.5354

[H] Shank Height Inch:

1.2598

[H] Shank Height Metric:

32.0000

[KRA] Lead Angle ANSI:

15.000 deg

[KRI] Lead Angle ISO:

75.000 deg

[L10] Cutting Edge Length Inch:

0.4724

[L10] Cutting Edge Length mm:

12.0000

[L1] Tool Length Inch:

6.7913

[L1] Tool Length Metric:

172.5000

[L9MS]Clamping LG Mach Side In:

5.2067

[L9MS]Clamping LG Mach Side mm:

132.2500

[LH]Head Length Inch:

1.5354

[LH]Head Length Metric:

39.0000

[LPR]Protruding Length Inch:

6.7913

[LPR]Protruding Length Metric:

172.5000

[LS] Shank Length Inch:

5.2067

[LS] Shank Length Metric:

132.2500

[LTA]Tool Assembly Length Inch:

1.5354

[LTA]Tool Assembly Length mm:

39.0000

[L]Tool Overall Length Inch:

6.7913

[L]Tool Overall Length mm:

172.5000

Manufactured By:

Kennametal
