Part Number: 6906767 / Vendor ID Number: 1128801 / Custom:

KMT-6906767

KMT-6906767
by Kennametal

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

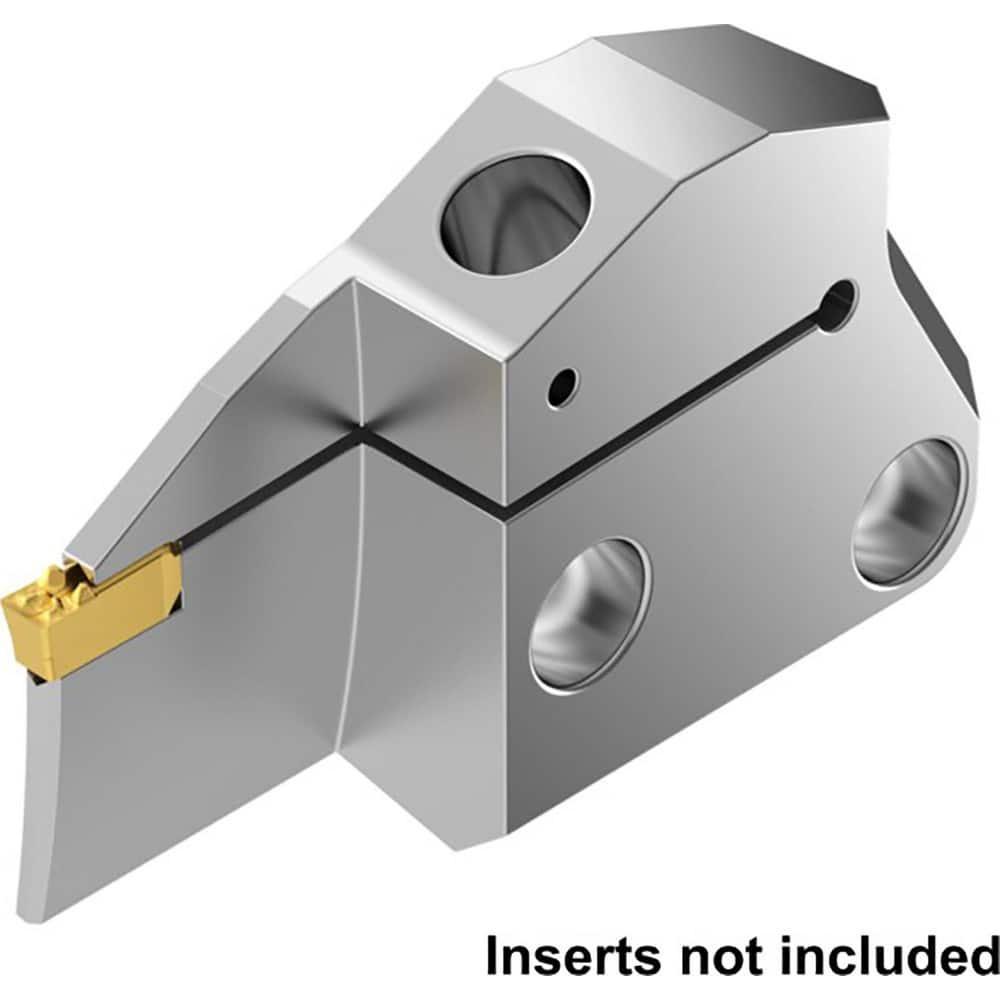

EVM50L0326MC EVOLUTION BLADE M50C

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Maximum Depth of Cut:

1.0236

Overall Length (Inch):

2.4309

Overall Length (mm):

61.746

Adapter Style Machine Side:

MODULAR Deep Groove Cartridge

Adapter Type Machine Side:

Modular Cartridge

Body Material Group:

Steel

Cartridge Size:

50

Catalog Gage Insert 1 Outside:

EG0300M03P02

Clamping Type:

Y - A2/A3/A4/PG/TG Clamping

Coolant Supply:

Yes

Engineering Tool Family:

BEYOND EVOLUTION

Hand of Tool:

L - Left

IntFace Catalog Gage Insert 1:

EG0300M03P02

ISO Catalog Number:

EVM50L0326MC

MAR_PLATFORM_KMT:

Beyond Evolution

[A1]Coolant Hole Dia. Exit In:

0.0433

[A1]Coolant Hole Dia. Exit mm:

1.1000

[A]Coolant Hole Diameter Metric:

2.0000

[B] Shank Width Inch:

0.4587

[B] Shank Width Metric:

11.6500

[CD]Cutting Depth Inch:

1.0236

[CD]Cutting Depth Metric:

26.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[FS]Secondary F Dimension Inch:

0.4104

[FS]Secondary F Dimension mm:

10.4250

[F] F Dimension Inch:

0.4695

[F] F Dimension Metric:

11.9250

[GAMMAF] Radial Rake Angle:

0.000 deg

[GAMMAP] Axial Rake Angle:

3.000 deg

[H1] Cutting Height Inch:

0.8159

[H1] Cutting Height Metric:

20.7240

[H2] Head Height Inch:

1.3502

[H2] Head Height Metric:

34.2940

[H] Shank Height Inch:

1.3502

[H] Shank Height Metric:

34.2940

[KRA] Lead Angle ANSI:

0.000 deg

[KRI] Lead Angle ISO:

90.000 deg

[L1] Tool Length Inch:

2.4309

[L1] Tool Length Metric:

61.7460

[L] Tool Overall Length Inch:

2.4309

[L] Tool Overall Length mm:

61.7460

[SSC] Insert Size:

3

[W1] Blade Width Inch:

0.0965

[W1] Blade Width Metric:

2.4500

[W]Catalog Groove Width Inch:

0.1181

[W]Catalog Groove Width mm:

3.0000

[Z] Number of Inserts:

1

Manufactured By:

Kennametal
