Product Overview

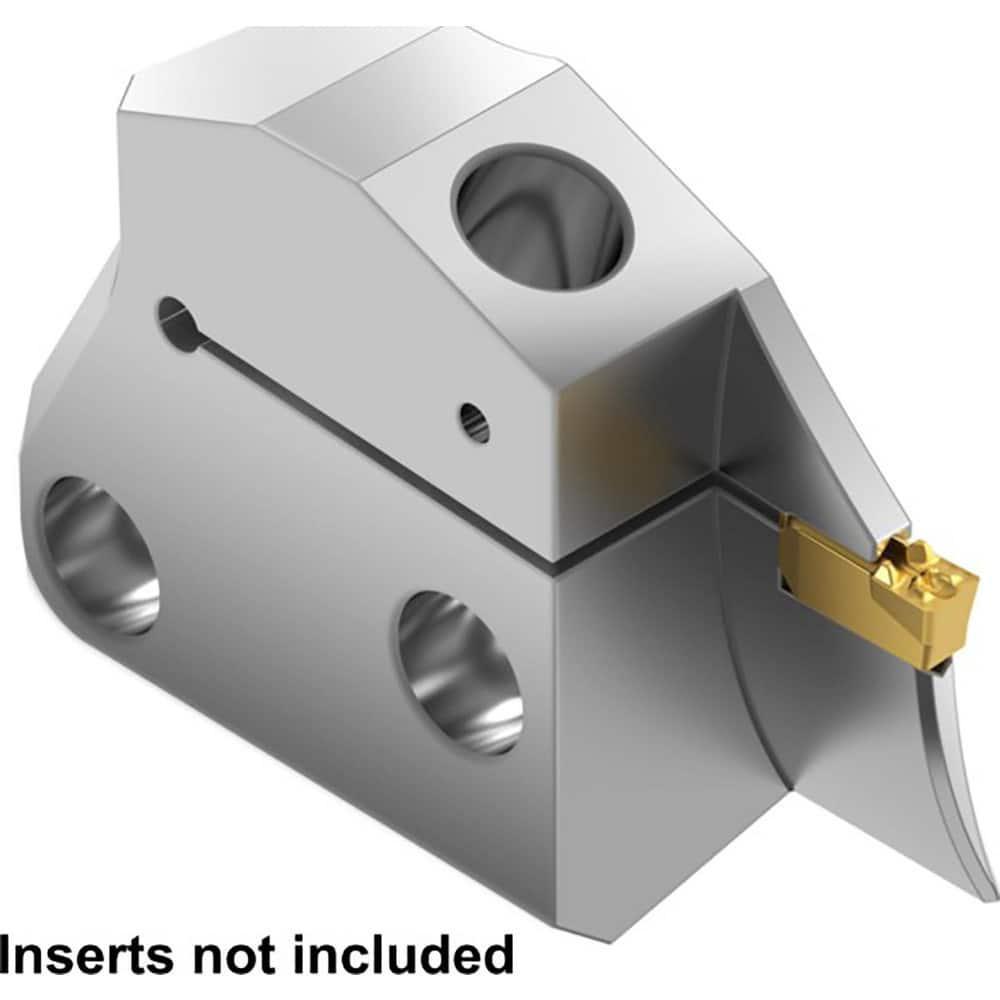

Evolution Modular Blade

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Inserts

Maximum Depth of Cut:

1.0236

Overall Length (Inch):

2.4311

Overall Length (mm):

61.75

Adapter Style Machine Side:

MODULAR Deep Groove Cartridge

Adapter Type Machine Side:

Modular Cartridge

Body Material Group:

Steel

Cartridge Size:

50

Catalog Gage Insert 1 Outside:

EG0400M04P04

Clamping Type:

Y - A2/A3/A4/PG/TG Clamping

Coolant Supply:

Yes

Engineering Tool Family:

BEYOND EVOLUTION

Hand of Tool:

R - Right

IntFace Catalog Gage Insert 1:

EG0400M04P04

ISO Catalog Number:

EVM50R0426B075100C

MAR_PLATFORM_KMT:

Beyond Evolution

[A1]Coolant Hole Dia. Exit In:

0.0512

[A1]Coolant Hole Dia. Exit mm:

1.3000

[A]Coolant Hole Diameter Metric:

2.0000

[B] Shank Width Inch:

0.4587

[B] Shank Width Metric:

11.6500

[CD]Cutting Depth Inch:

1.0236

[CD]Cutting Depth Metric:

26.0000

[CUBMS]Unit of Tool:

MM - Metric

[CUBWS]Units of Tool (Extract):

MM - Metric

[DMAX]Ax Grv_C/O_BoreMaxDia In:

3.9370

[DMAX]Ax Grv_C/O_BoreMaxDia mm:

100.0000

[DMIN]Min BoreDia_Ax GrvDia In:

2.9528

[DMIN]Min BoreDia_Ax GrvDia mm:

75.0000

[FS]Secondary F Dimension Inch:

0.3937

[FS]Secondary F Dimension mm:

10.0000

[F] F Dimension Inch:

0.4724

[F] F Dimension Metric:

12.0000

[GAMMAF] Radial Rake Angle:

2.750 deg

[GAMMAP] Axial Rake Angle:

0.000 deg

[H1] Cutting Height Inch:

0.8159

[H1] Cutting Height Metric:

20.7240

[H2] Head Height Inch:

1.3305

[H2] Head Height Metric:

33.7940

[H] Shank Height Inch:

1.3305

[H] Shank Height Metric:

33.7940

[KRA] Lead Angle ANSI:

0.000 deg

[KRI] Lead Angle ISO:

90.000 deg

[L1] Tool Length Inch:

2.4311

[L1] Tool Length Metric:

61.7500

[L] Tool Overall Length Inch:

2.4311

[L] Tool Overall Length mm:

61.7500

[SSC] Insert Size:

4

[W1] Blade Width Inch:

0.1299

[W1] Blade Width Metric:

3.3000

[W]Catalog Groove Width Inch:

0.1575

[W]Catalog Groove Width mm:

4.0000

[Z] Number of Inserts:

1

Manufactured By:

Kennametal
