Part Number: 6797491 / Vendor ID Number: 1128801 / Custom:

KMT-6797491

KMT-6797491
by Kennametal

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

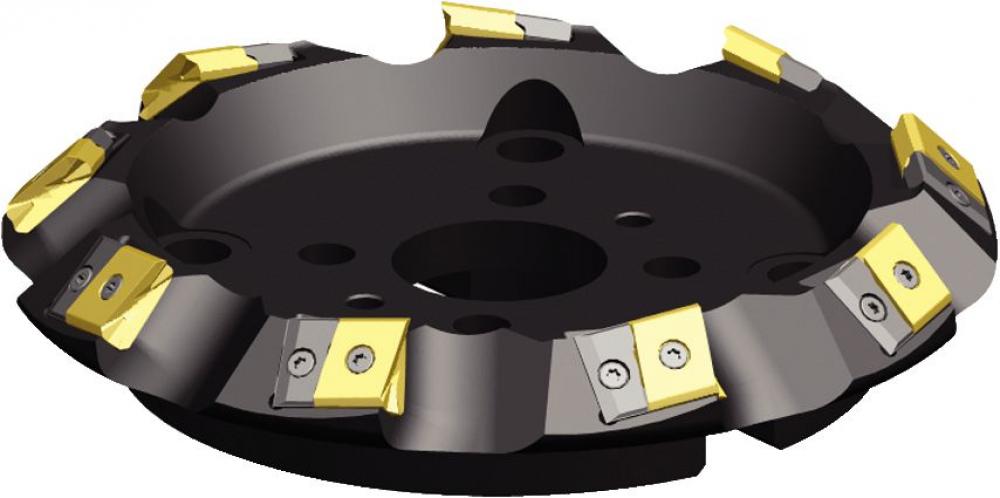

MEGA 45 SHELL MILL D=8" Z=9 LH

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Milling

Subcategory:

Indexable

Subtype:

Shell Mills

Insert Shape:

L-Rectangle On Edge 90

Number of Flutes:

9

Adapter Style Machine Side:

C-Bolt Circle

Adapter Style Machine Side-Marcom Calc:

C-Bolt Circle

Adapter Type Machine Side:

Shell Mill

Body Material Group:

Steel

Catalog Gage Insert 1:

LN_U241012ANSL__

Center Cutting Tool:

No Center Cutting

Clamping Type:

S - Screw Clamping

Coolant Supply:

No

Engineering Tool Family:

MEGA 45

Hand of Tool:

L - Left

Helix Hand:

L - Left Hand Helix/Flute

Insert Shape - Marcom Calc:

Rectangle On Edge 90

IntFace Catalog Gage Insert 1:

LN_U241012ANSL__

ISO Catalog Number:

MEGA45D800LN863M10LH

MAR_PLATFORM_KMT:

MEGA

Max RPM:

9890

Milling Type:

F-Face Mill (Shell Mill)

Number of Adjustable Inserts:

0

Number of Center Cutting Edges:

0

Number of Inserts:

9

[AP1MAX]1st Max Cut Depth In:

0.6754

[AP1MAX]1st Max Cut Depth mm:

17.1540

[CUBMS]Unit of Tool:

IN - Inch

[CUBWS]Units of Tool (Extract):

IN - Inch

[D1MAX]Maximum Cutting Dia in:

9.3919

[D1MAX]Maximum Cutting Dia mm:

238.5540

[D1]Effective Cutting Dia Frac:

8

[D1]Effective Cutting Dia In:

8.0000

[D1]Effective Cutting Dia mm:

203.2000

[D2]Body Diameter Max Inch:

8.1818

[D2]Body Diameter Max Metric:

207.8190

[D4]Bolt Circle 1 Inch:

4.0000

[D4]Bolt Circle 1 Metric:

101.6000

[D6] Hub Diameter Inch:

6.5000

[D6] Hub Diameter Metric:

165.1000

[D]Adapter/Shank/Bore Dia Frac:

2 1/2

[D]Adapter/Shank/Bore Dia Inch:

2.5000

[D]Adapter/Shank/Bore Dia mm:

63.5000

[GAMMAF] Radial Rake Angle:

-8.678

[GAMMAP] Axial Rake Angle:

8.000

[KRA] Lead Angle ANSI:

45.000

[KRI] Lead Angle ISO:

45.000

[L1]Gage Length Inch:

2.3750

[LF]Functional Length Inch:

2.3750

[LF]Functional Length Metric:

60.3250

[LTA]Tool Assembly Length Inch:

2.3750

[LTA]Tool Assembly Length mm:

60.3250

[L] Overall Length Inch:

2.3750

[L] Overall Length Metric:

60.3250

Manufactured By:

Kennametal
