Item Sales Info

Part Number: 9661615 / Vendor ID Number: 1152311 / Custom:

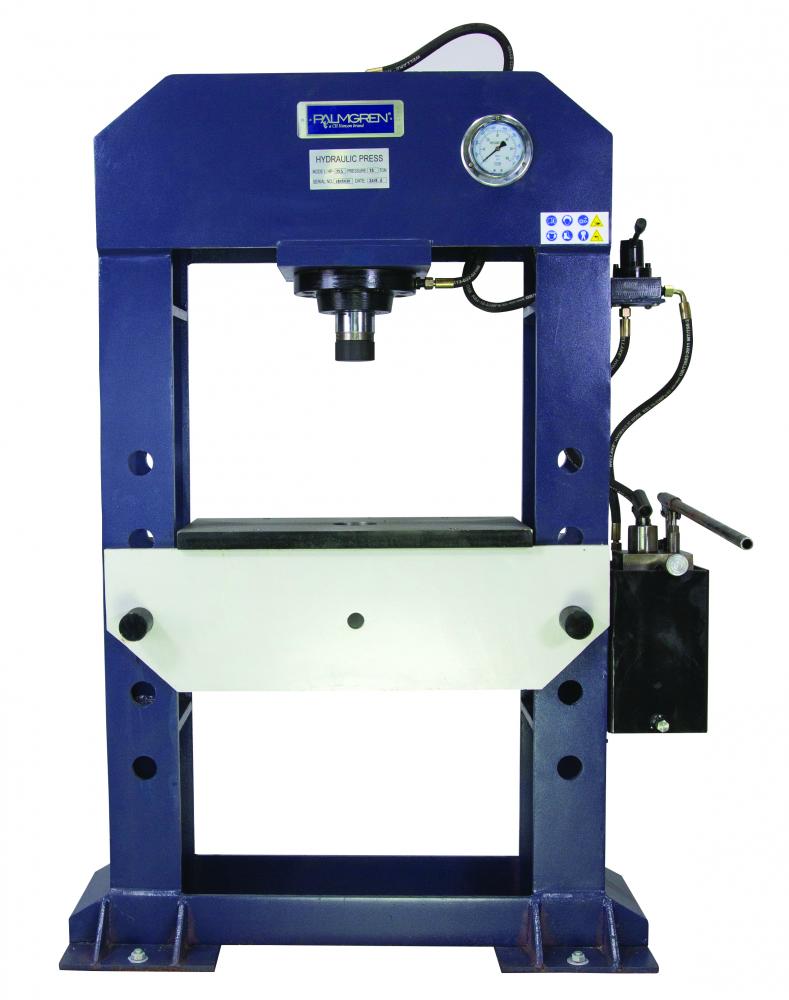

75 Ton Man. Pump Hyd. Press
by C.H. Hanson

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Palmgren’s 75 Ton Man. Pump Hyd. Press is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands the only the best quality from his operation.

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Info & Guides

Warranty (PDF)

Technical Details

Details

Base Length（inch）:

Base Width（inch）:

Brand:

Palmgren

Capacity over Table (inches):

15.75

Catalog Product Features:

• By-pass hole prevents excessive ram extension

Catalog Product Features-10:

• Single acting cylinder design for improved operation

Catalog Product Features-2:

• Easily adjustable table for quick height changes between applications

Catalog Product Features-3:

• Efficient hand pump is conveniently located for reduced operator fatigue

Catalog Product Features-4:

• Factory preset relief valve to prevent exceeding maximum pressure capacity

Catalog Product Features-5:

• Fully-welded heavy steel plate frame for maximum rigidity

Catalog Product Features-6:

• Hand operation for economic performance

Catalog Product Features-7:

• Holes in side frames allow for insertion of long material

Catalog Product Features-8:

• Pressure gauge for direct pressure readings

Catalog Product Features-9:

• Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve

Country of Origin:

CHINA

Cylinder (Fixed or Dynamic):

FIXED

Cylinder Stroke（in）:

11.8

Cylinder Type:

Single Action

Diameter of Work (inches):

Frame Capacity:

75 tons

Freight Class:

150

Harmonizing Code:

8462.99.8020

HTS Code Included in 301 Tariff Round 1:

Yes

HTS Code Included in 301 Tariff Round 2:

HTS Code Included in 301 Tariff Round 3:

Keywords:

hydraulic press, hand pump; pressure pumps, hydraulic hand pump, hydraulic, hydraulic pump, shop press, electric hydraulic pump, press pump

Largest Arbor Extension:

11.81

Leverage Radio:

1000/1

Manufacturer's Description:

Palmgren 75 Ton Man. Pump Hyd. Press is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabricati

Master Pack Height (inches):

71.3

Master Pack Length (inches):

54.3

Master Pack Weight (lbs):

630

Master Pack Weight (lbs)-2:

680

Master Pack Width (inches):

Max Pressure:

75 ton

Maximum Work Diameter:

23 x 25.5

Minimum Work Diameter:

23 x 0.75

Model Number:

9661615

Overall Dimensions (LxWxH):

50" x 23" x 87"

Package Depth (inches):

Package Height (inches):

78.75

Package Width (inches):

25.5

Pressure (tons):

Product Features:

Pressure gauge for direct pressure readings. Easily adjustable table for quick height changes between applications. Holes in side frames allow for insertion of long material.Hand operation for economic performance.Efficient hand pump is conveniently locate

Prop 65 Compliant:

View

Pump Type:

MANUAL

Ram Bore (inches):

2.5

Ram Diameter:

2.5

Ram Size:

11.81

Reservoir Capacity:

12 QT 20L

Retail Height (inches):

66.9

Retail Length (inches):

51.9

Retail Weight (lbs):

460

Retail Width (inches):

19.7

Size of Ram Face (inches):

2.5 Dia.

Status:

Table Weight:

175

Throat Capacity:

23.6 x 15.75

UPC:

7.27E+11

Warranty:

3 Year

What’s in the Box:

3 bits that fit into custom storage wells in the base and a pre-drilled base for easy mounting on a pedestal or bench

Working Height（inch）:

15-43

Working Width（in）:

31.5

Manufactured By:

C.H. Hanson
