Part Number: 9684484 / Vendor ID Number: 1152311 / Custom:

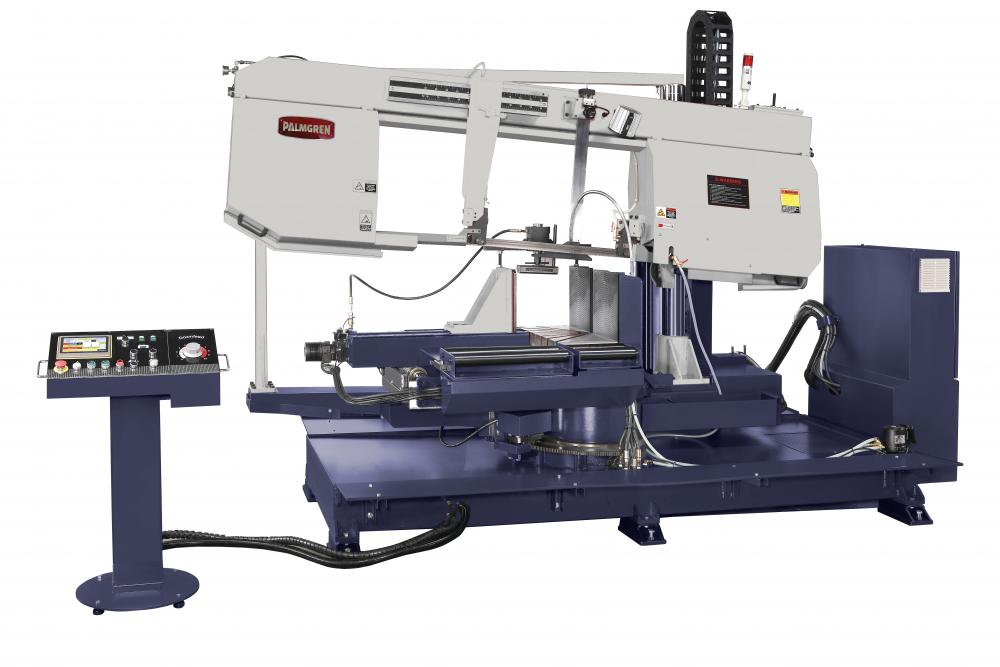

18" Semi-Auto Dual Miter Band Saw
by C.H. Hanson

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

Palmgren’s high production, horizontal, semi-automatic, large capacity, dual column band saw is capable of cutting 18" round materials. A dual direction swivel can miter cut up to 45 degrees to the right and 60 degrees to the left. This band saw is ideal for production sawing of structural solids, tubing, stainless, and tool steels. The ideal saw for fabricators cutting multiple angles in the same work piece.

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Info & Guides

Catalog Sheet

FAB Sheet

Buying Guide

Technical Details

Details

Blade Length:

243-1/2"

Blade Speed (SFPM):

82-282

Blade Thickness:

0.051"

Blade Width:

1-9/16"

Brand:

Palmgren

Catalog Product Features:

• Blade guard arm has automatic adjustment for proper positioning

Catalog Product Features-2:

• Electronic inverter variable speed

Catalog Product Features-3:

• Hydraulic adjustable carbide blade guides

Catalog Product Features-4:

• Hydraulic blade tensioning. 1-9/16" blade with motor driven blade brush

Catalog Product Features-5:

• Material sensor and switch controls rapid advance to workpiece limiting excess movement of the saw head

Catalog Product Features-6:

• Miter angle of the saw head is set on the control screen and the saw head automatically moves to programmed angle via servo motor with hydraulic brake for fast accurate positioning

Catalog Product Features-7:

• Saw blade is set at 7 degree angle allowing for more efficient cutting

Catalog Product Features-8:

• Touch display control panel for easy positioning and operation

Catalog Product Features-9:

• Vise pressure regulator to handle various types and shapes of materials

Coolant Motor:

1/6HP

Coolant Tank Capacity:

37 Gallons

Country of Origin:

CHINA

Freight Class:

250

Hydraulic Motor:

2HP

Hydraulic Tank (gal.):

Machine Weight:

4,620 lbs.

Main Motor:

5 HP

Overall Dimensions (LxWxH):

142" x 66.5" x 85"

Phase:

Product Features:

Touch display control panel for easy positioning and operation. Hydraulic blade tensioning. 1-9/16" blade with motor driven blade brush. Saw blade is set at 7 degree angle allowing for more efficient cutting. Electronic inverter variable speed. Hydraul

Rectangle 0°:

17-1/4" x 32-1/4"

Rectangle 60°:

18" x 11"

Rectangle @ 45 Degrees:

16-1/2" x 21-1/2"

Round @ 45 Degrees:

18"

Round Material Max. 0º:

18"

Round Material Max. 60°:

13-3/4"

Status:

Table Height:

30"

UPC:

7.27E+11

Voltage:

230V

Manufactured By:

C.H. Hanson
