Item Sales Info

Part Number: 7886303800 / Vendor ID Number: 1150641 / Custom:

MSS threading tool
by Ceratizit

Add To Quote

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Overview

E10L00-06-GX09-E

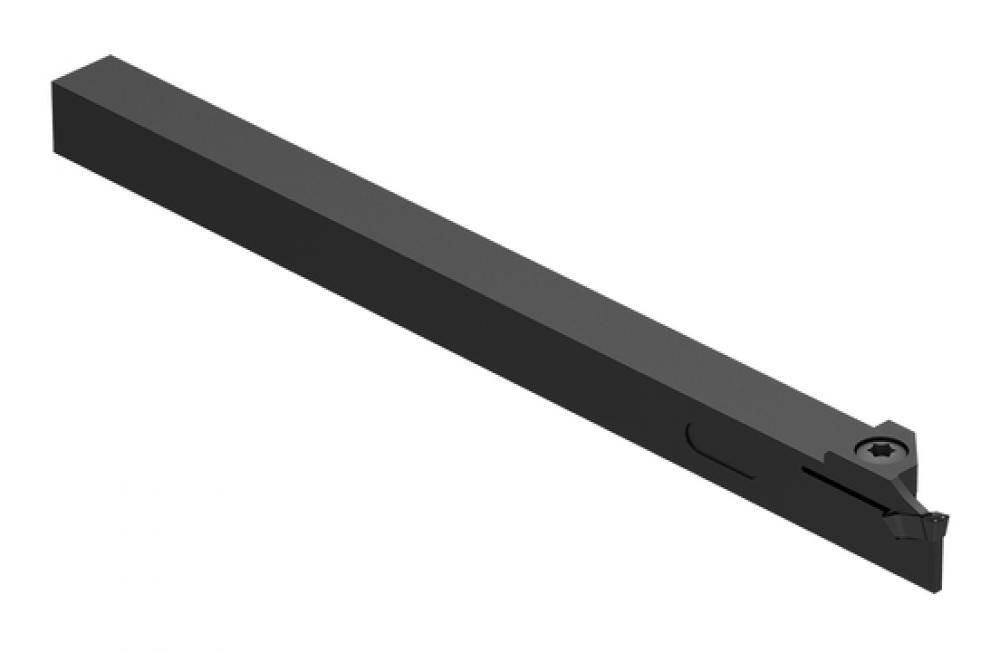

MSS threading tool E10L00-06-GX09-E

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Technical Details

Details

Category:

Turning

Subcategory:

Thread Turning

Subtype:

On-Edge Threading Indexable Holders

Brand Name:

CERATIZIT

cutting depth maximum (inch):

0.27

cutting depth maximum (mm):

6.858

Execution:

LEFT

For Groove Inserts:

GX 09 ..

functional width (inch):

0.349

functional width (mm):

8.865

head length (inch):

0.709

head length (mm):

18.009

ISO Designation:

E10 L 00-06-GX09-E

Item Height (inches):

4.45

Item Length (inches):

1.38

Item Quantity:

Item Weight (lbs):

0.315

Item Width (inches):

1.38

Material group K (H= Main Application, N= Secondar:

Material Number:

11104255

overall height (inch):

0.472

overall height (mm):

11.989

Overall length (inch):

overall length (mm):

152.4

Parting off diameter max (inch):

1.181

Parting off diameter max (mm):

29.997

Product Line:

CERATIZIT_PERFORMANCE

Product name:

MONOCLAMP

shank height (inch):

0.375

shank height (mm):

9.525

shank width (inch):

0.375

shank width (mm):

9.525

Manufactured By:

Ceratizit
