Part Number: 7082402500 / Vendor ID Number: 1150641 / Custom:

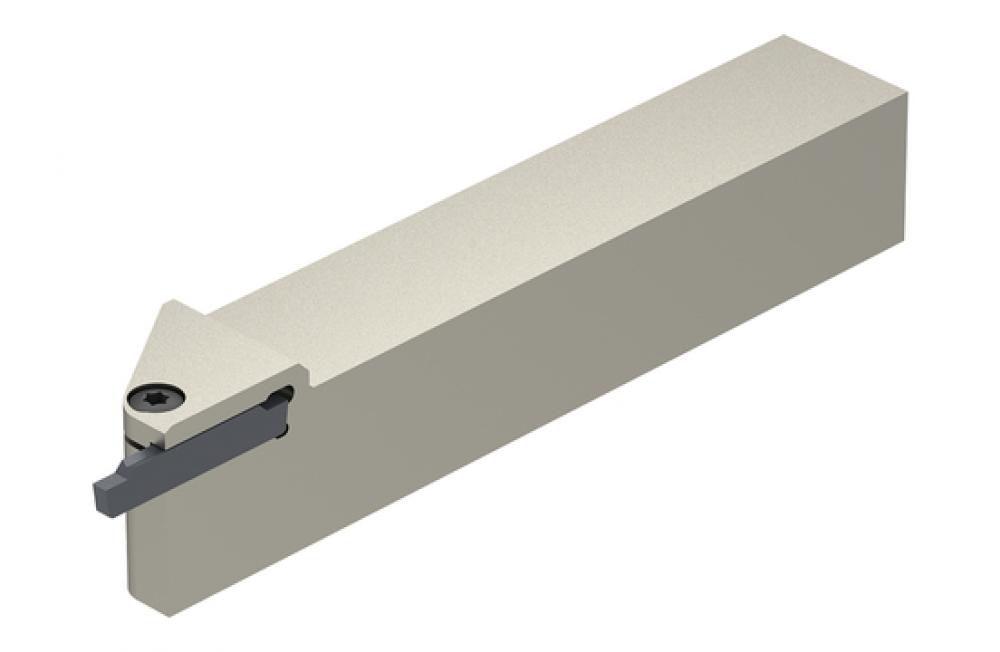

MSS AXIAL EXTERNAL PART & GROOVE TOOL

MSS AXIAL EXTERNAL PART & GROOVE TOOL
by Ceratizit

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
E25R0005-2525N-AX05
MSS AXIAL EXTERNAL PART & GROOVE TOOL E25R0005-2525N-AX05
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
axial groove outside diameter minimum (inch):
0.394
axial groove outside diameter minimum (mm):
10
Brand Name:
CERATIZIT
cutting depth maximum (inch):
0.197
cutting depth maximum (mm):
5
cutting width (inch):
0.118
Cutting Width (mm):
3
Execution:
RIGHT
For Groove Inserts:
AX05
functional width (inch):
0.933
functional width (mm):
23.7
head length (inch):
1.102
head length (mm):
28
ISO Designation:
E25 R 0005-2525-AX 05
Item Height (inches):
2.01
Item Length (inches):
6.14
Item Quantity:
1
Item Weight (lbs):
1.859
Item Width (inches):
2.01
Material group K (H= Main Application, N= Secondar:
0
Material Number:
11364760
overall height (inch):
1.181
overall height (mm):
30
Overall length (inch):
6.299
overall length (mm):
160
Product Line:
CERATIZIT_PERFORMANCE
Product name:
MONOCLAMP
shank height (inch):
0.984
shank height (mm):
25
shank width (inch):
0.984
shank width (mm):
25
Manufactured By:
Ceratizit
