Item Sales Info
Part Number: 70884113 / Vendor ID Number: 1150641 / Custom:
MONO CLAMP PART OFF BLADE SX

MONO CLAMP PART OFF BLADE SX
by Ceratizit

Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
XLCFN 2603-SX3

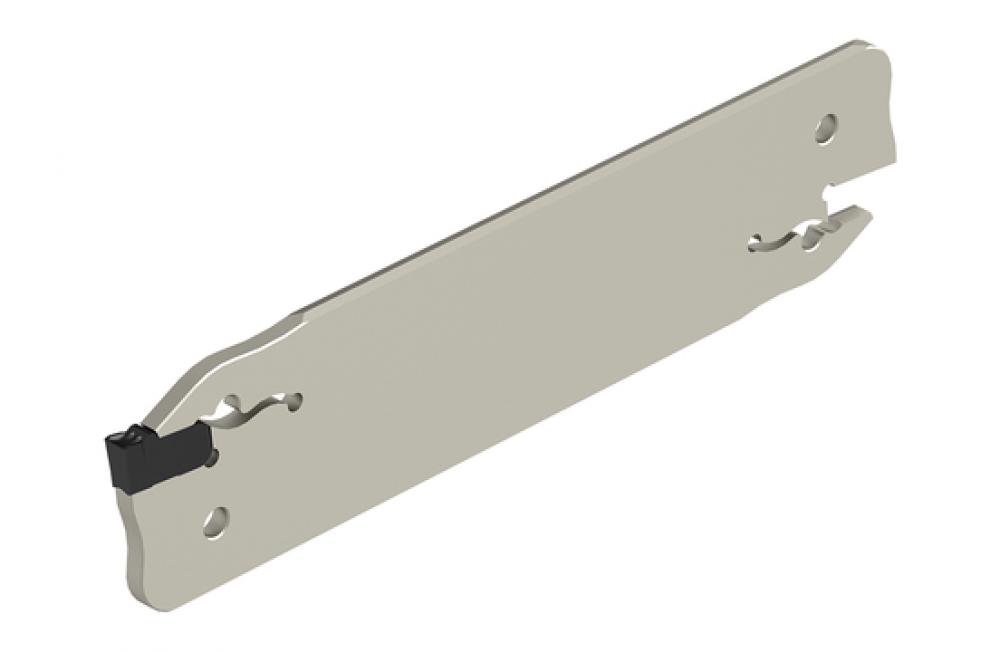

MONO CLAMP PART OFF BLADE SX XLCFN 2603-SX3
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
DXF
Technical Details
Details
Category:
Turning
Subcategory:
Groove and Turn and Parting Off
Subtype:
Groove and Turn Indexable Holders
Brand Name:
CERATIZIT
cutting depth maximum (inch):
1.378
cutting depth maximum (mm):
35
cutting width (inch):
0.118
Cutting Width (mm):
3
For Groove Inserts:
SX .3..
ISO Designation:
XLCF N 2603-SX3
Item Quantity:
1
Item Weight (lbs):
0.188
Komet Number:
59599 05268
Material group K (H= Main Application, N= Secondar:
0
Material Number:
11435195
Overall length (inch):
4.331
overall length (mm):
110
Product Line:
CERATIZIT_PERFORMANCE
Product name:
MONOCLAMP
shank height (inch):
1.024
shank height (mm):
26
shank width (inch):
0.094
shank width (mm):
2.4
UPC Number:
4047109301436
Manufactured By:
Ceratizit
